EtherWAN EL8000-31E, Hardened 1000BASE-TX to 1000BASE-SX/LX/BX/SFP Media Converter

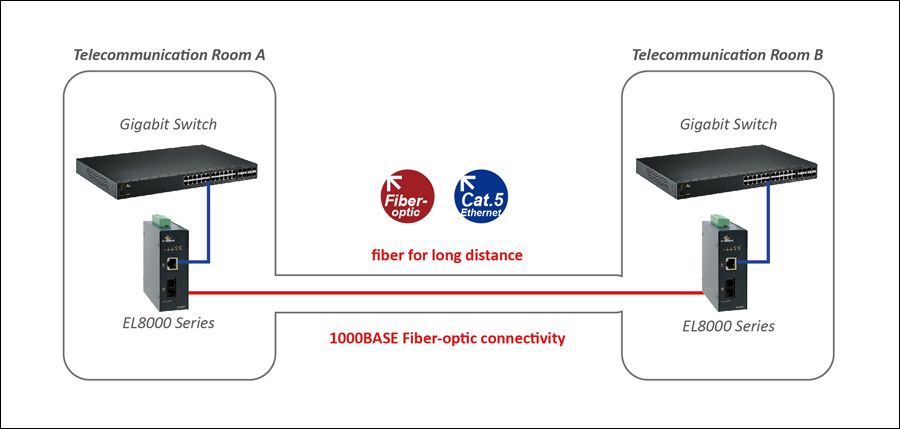

The EL8000 Series provides media conversion between 1000BASE-TX and 1000BASE-SX/LX/BX/SFP Fiber. Built specifically for mission critical applications in harsh environments, the EL8000's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C, and aluminum housing. With two power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8000 is the ideal media converter for environments where connectivity is crucial. EtherWAN - "When Connectivity is Crucial."

Highlights

• Full Gigabit bandwidth and Jumbo frames: 1000BASE-T and 1000BASE-SX/LX/BX/SFP Ethernet transmission conversion; 1000Mbps Full duplex and full wire-speed forwarding rate; Jumbo frames up to 10K bytes to increase throughput and transmission efficiency
• Hardened Grade: Supports -40 to 75°C (-40 to 167°F) operating temperature; Redundant power inputs on terminal block connector; Supports DIN-Rail mounting
• Port Failure Alarm: Relay alarm configured by DIP switch to notify users when power fails or link is down
• Link-Fault-Pass-Through (LFPT): Provides constant monitoring of the links connected to the media converters; If a copper or a fiber link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

Specifications

• Standards: IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-X
• Forward and Filtering Rate: 1,488,100pps for 1000Mbps
• Processing Type: Auto Negotiation; Auto MDI/MDIX
• Power Input: 12-48VDC
• Power Consumption: 1.44W Max., 12~48VDC, 0.12~0.03A
• Protection: Overload Current Protection; Reverse Polarity Protection
• Ethernet Ports: 1000BASE-T: 1 port; 1000BASE-SX/LX/SFP: 1 port
• LED Indicators: Per Unit: Power 1, Power 2, Fault, LFPT; Per Port: Link/Activity
• DIP Switches: No.1: LFPT On/Off; No.2: Alarm for copper port On/Off; No.3: Alarm for fiber port On/Off; No.4: Auto-negotiation for fiber port On/Off
• Alarm Contact: Relay contact rating with current 0.6A/30VDC
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)
• Casing: Aluminum Case; IP30
• Dimensions: 35.8 x 90 x 100mm (W x D x H) (1.41" x 3.54" x 3.94")
• Weight: 0.23Kg (0.51lbs.)
• Installation: DIN-Rail
• ISO: Manufactured in an ISO 9001 facility
• Safety: UL 61010
• Industrial Compliance: EN 50121-4
• EMI: FCC Part 15B Class A; VCCI Class A; EN 55032; EN 61000-3-2; EN 61000-3-3; EN 61000-6-3
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD Standards); EN 61000-4-3 (Radiated RFI Standards); EN 61000-4-4 (Burst Standards); EN 61000-4-5 (Surge Standards); EN 61000-4-6 (Induced RFI Standards); EN 61000-4-8 (Magnetic Field Standards)
• Environmental Test Compliances: IEC 60068-2-6 Fc (Vibration); IEC 60068-2-27 Ea (Shock); FED STD 101C Method 5007.1 (Free fall w/ package)
• Ordering Model EL8000-X1E: 1000BASE-TX to 1000BASE-SX/LX/BX/SFP Hardened Media Converter
• Gigabit Fiber Options (X): 3 = 1000BASE-SX (SC) - Multi mode 550m 850nm; 4 = 1000BASE-SX (SC) - Multi mode 2Km 1310nm; 5 = 1000BASE-SX (ST) - Multi mode 550m 850nm; A = 1000BASE-LX (SC) - Single mode 10Km 1310nm; B = 1000BASE-LX (SC) - Single mode 20Km 1310nm; R = 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm - Single mode 20Km 1310nm; S = 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm - Single mode 20Km 1310nm; V = 1000BASE SFP
• Ordering Notes: More Gigabit options are also available upon request.
