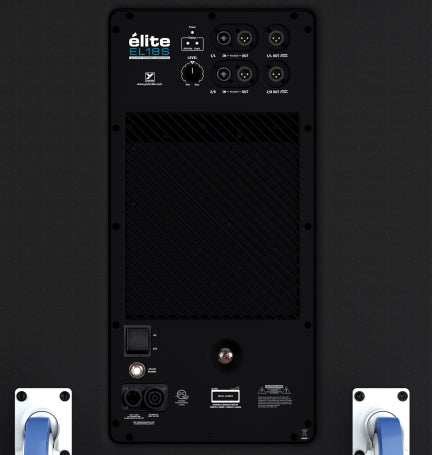

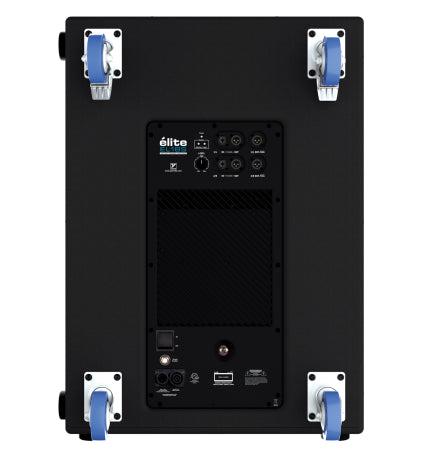

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users. The EL18S is a powered subwoofer with a 18" woofer that delivers 3200 watts of peak power (1600 watts program) and goes down to 35 Hz. The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 compatible input and output connectors. Need even more power? Check out theEL21S.
Features
- 3200 W Peak Power (1600 W Program)
- 18" Woofer with 4" Voice Coil
- Onboard Limiter
- 2 XLR Inputs with Full-Range Parallel Outputs
- 2 High-Passed XLR Outputs
- 15mm Birch Plywood Construction
- Made in Canada
Specifications
| System Type |
Powered Subwoofer |
| Power Rating |
3200 W Peak (1600 W Program) |
| Max SPL |
140 dB Peak (134 dB Continuous) |
| Frequency Response |
35 Hz - 100 Hz (+/- 3 dB) |
| Crossover Frequency |
100 Hz |
| LF Driver(s) |
18" with 4" Voice Coil Ceramic Magnet |
| Power Cable |
powerCON® TRUE1 Connectors (Input / Output) |
| Power Consumption (typ/max) |
4A, 10A |
| Inputs |
2x Combo-jack (XLR / 1/4” TRS) |
| Outputs |
2x XLR High-Pass 2x XLR Link (Full Range) |
| Level Controls |
Yes |
| LED Indicators |
Power, Activity, Protection |
| Wheels |
4x Swivel Casters (Back) |
| Bar Handles |
1x Top, 4x Side, 1x Bottom |
| Flying Hardware |
No |
| Pole Mount Adapter |
1x Top, 1x Side |
| Enclosure Materials |
15mm Birch Plywood |
| Grille |
Powder-Coated Steel |
| Covering / Finish |
Textured Paint |
| Dimensions (DWH) |
24.8" x 25.7" x 35.7" (Depth with Casters 29.8”) 63 cm x 65.3 cm x 90.7 cm (Depth with Casters 75.7 cm) |
| Weight |
176.5 lbs / 80 kg |
