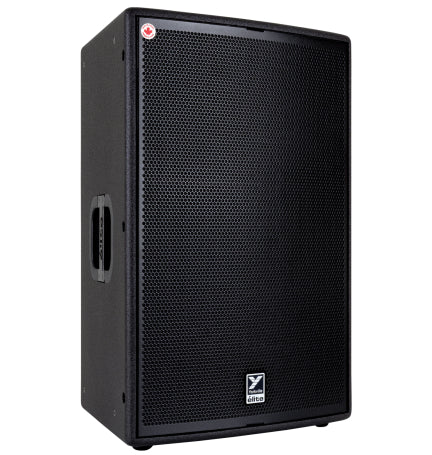

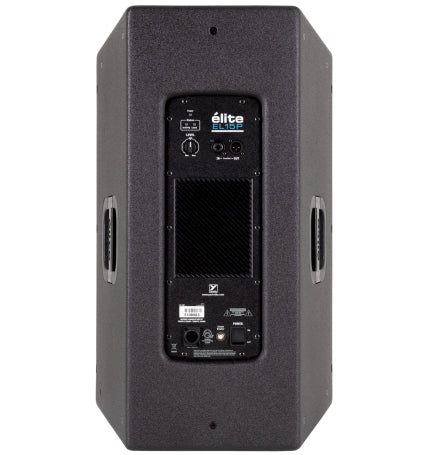

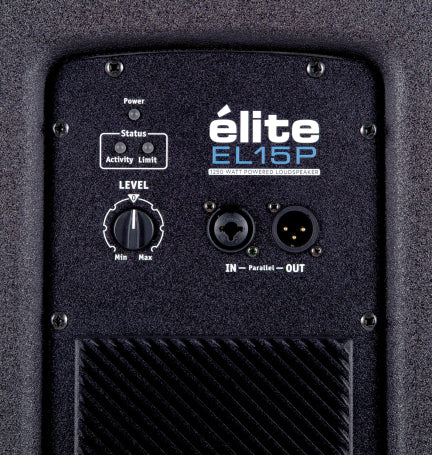

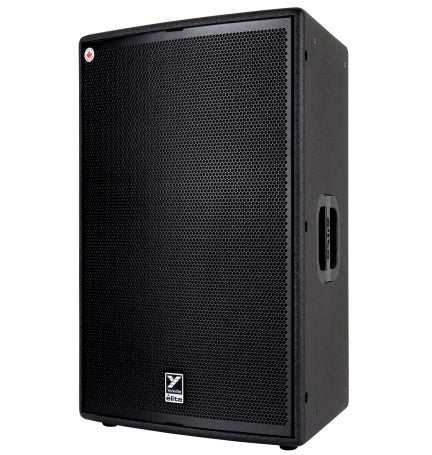

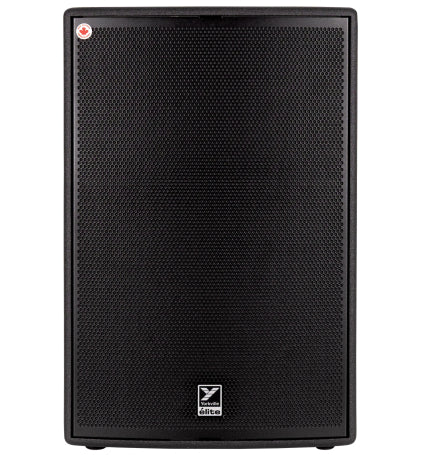

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users. The EL15P is a full-range powered speaker with a 15" neodymium woofer that delivers 2500 watts of peak power (1250 watts program). The rugged cabinet is constructed from high-quality birch and features a pole mount adapter and integrated flypoints. An optional bracket (EL15PBRACKET) is available separately for multi-cabinet hangs. The rear panel features an XLR / 1/4" input jack, XLR output, and powerCON® TRUE1 compatible connector. Combine the EL15P with theEL12Mstage monitor andEL18SorEL21Ssubwoofer for uncompromising sound, performance, and made-in-Canada reliability that earns the Elite name.
Features
- 2500 W Peak Power (1250 W Program)
- 15" with 3" Voice Coil and Neodymium Magnet
- ABS Horn with 1.4" Exit, 3" Voice Coil / Neodymium Magnet
- Onboard Limiter
- powerCON® TRUE1 Compatible Connector
- 15 mm Birch Plywood Construction
- Made in Canada
Specifications
| System Type |
Powered Loudspeaker |
| Power Rating |
2500 W Peak (1250 W Program) |
| Max SPL |
139 dB Peak (127 dB Continuous) |
| Frequency Response |
50 Hz - 20 kHz (+/- 3 dB) |
| Dispersion (H x V) |
60° x 40° |
| Crossover Frequency |
850 Hz |
| HF Driver(s) |
ABS Horn with 1.4” exit, 3” Voice Coil, and Neodymium Magnet |
| HF Dispersion (°H x °V) |
60° x 40° |
| LF Driver(s) |
15" with 3" Voice Coil and Neodymium Magnet |
| Power Cable |
powerCON® TRUE1 Compatible Connector |
| Power Consumption (typ/max) |
3A, 7.5A |
| Inputs |
1x Combo-jack (XLR / 1/4” TRS) |
| Outputs |
1x XLR |
| Level Controls |
Yes |
| LED Indicators |
Power, Activity, Protection |
| Bar Handles |
2x Side |
| Flypoints |
4x Top, 4x Bottom, 2x Pull Back (1/4-20) |
| Optional Flying Hardware |
EL15PBRACKET - For Arraying 2 - 3 Cabinets (Sold Separately) |

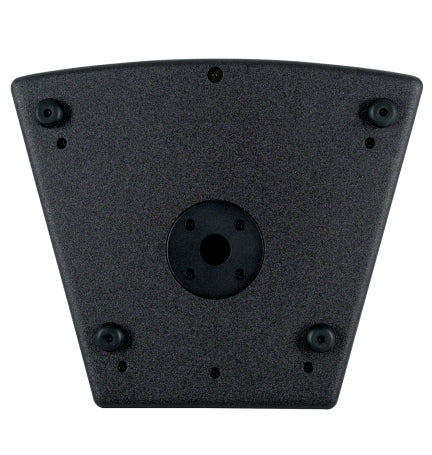

| Pole Mount Adapter |
1x Bottom |
| Enclosure Materials |
15 mm Birch Plywood |
| Grille |
Powder-Coated Steel |
| Covering / Finish |
Textured Paint |
| Dimensions (DWH) |
15.8" x 18.5" x 28.6" (40.2 cm x 47 cm x 72.7 cm) |
| Weight |
62 lbs / 28 kg |
