EtherWAN EL1142-20B, IEC 61850-3/IEEE 1613 Hardened 2-Port 10/100BASE-TX to 2-Port 100BASE-FX Media Converter

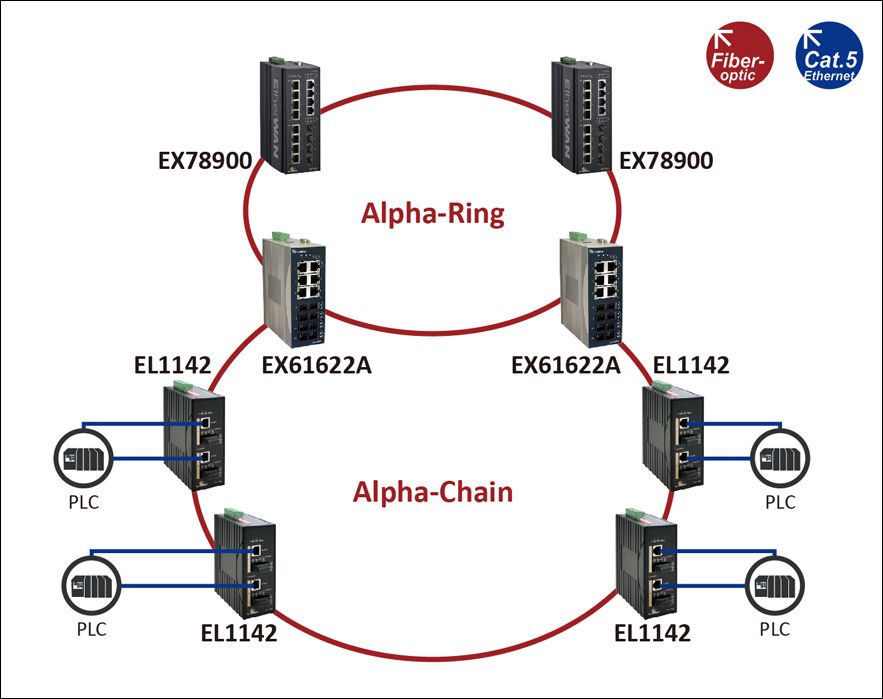

The EL1142 series provides two independent media conversion paths between 2 x 10/100BASE-T and 2 x 100BASE-SX-LX fiber. Similar to the EL1141 series media converter, the EL1142 includes the hardened construction and high performance needed for mission critical applications, including power substation automation. However, the EL1142 series offers twice the port density in the same housing dimensions, providing greater flexibility and requiring less space for installation. EtherWAN - "When Connectivity is Crucial." This product is discontinued as of 27th March 2026.

Highlights

• Higher Port Density: Two independent media conversion paths in a compact housing
• EN 50121-4 Certification: Designed and tested for railway environment applications
• IEC 61850-3/IEEE 1613 Certification: Meets standards for application in power substation automation
• Link-Fault-Pass-Through (LFPT): Provides constant monitoring of the links connected to the media converters; if a copper link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

Specifications

• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T
• Forward and Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps
• Packet Buffer Memory: 128K bits
• Processing Type: Store-and-forward; Auto Negotiation; Half-Duplex back-pressure and IEEE 802.3x Full-Duplex flow control; Auto MDI/MDIX
• Ethernet Ports: 10/100BASE-TX: 2 ports; 100BASE-FX: 2 ports
• LED Indicators: Per Unit: Power1, Power2, Alarm; Per 10/100BASE-TX port: Link/Activity, 100, Full-Duplex/Collision, LFPT; Per 100BASE-FX port: Link/Activity, Full-Duplex/Collision
• Relay Contact: Dry contact with current 0.6A/30VDC
• Power Input: 12-48VDC
• Power Consumption: 5.28W Max., 12~48VDC, 0.4~0.11A
• Protection: Overload Current Protection; Reverse Polarity Protection
• Casing: Aluminum Case; IP30

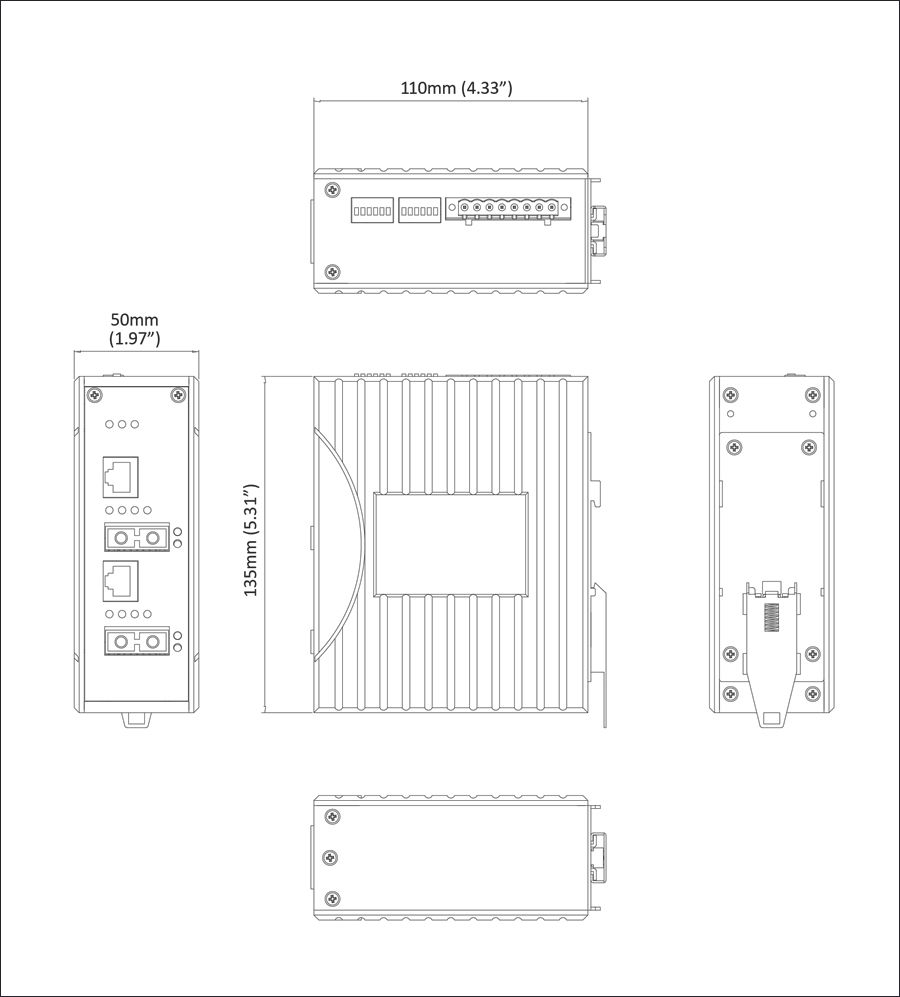

• Dimensions: 50 x 110 x 135mm (W x D x H) (1.97" x 4.33" x 5.31")
• Weight: 1.2kg (2.64lbs.)
• Installation: DIN-Rail (top hat type 35mm) or panel mounting
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)
• ISO: Manufactured in an ISO 9001 facility
• Safety: UL 61010
• EMC: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4; EN 61000-6-2 Class A; EN 55032 Class A
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD Standards); EN 61000-4-3 (Radiated FRI Standards); EN 61000-4-4 (Burst Standards); EN 61000-4-5 (Surge Standards); EN 61000-4-6 (Induced RFI Standards); EN 61000-4-8 (Magnetic Field Standards)
• Environmental Test Compliances: IEC 60068-2-6 Fc (Vibration); IEC 60068-2-27 Ea (Shock); FED STD 101C Method 5007.1 (Free fall w/ package)
• Industrial Compliance: IEC 61850-3/IEEE 1613; EN 50121-4
• Model: EL1142-X0B = 2-Port 10/100BASE-TX +2-Port 100BASE-FX IEC 61850-3/IEEE 1613 Hardened Media Converter (DIN-Rail mounting kit included)
• 100BASE-X Fiber Options (X): 1 = Multi Mode (SC) - 2Km (1310nm); 2 = Multi Mode (ST) - 2Km (1310nm); A = Single Mode (SC) - 20Km (1310nm); B = Single Mode (SC) - 40Km (1310nm); H = Single Mode (ST) - 20Km (1310nm)
• Optional Accessories: KP-AA96-480 = Panel mounting kit; HDR-30-24 = 30W/1.5A DIN-Rail 24VDC Industrial Power Supply; HDR-60-24 = 60W/2.5A DIN-Rail 24VDC Industrial Power Supply; EDR-75-24 = 75W/3.2A DIN-Rail 24VDC Industrial Power Supply; EDR-120-24 = 120W/5A DIN-Rail 24VDC Industrial Power Supply; EX41-145046-X = Power Supply 45W 12VDC with Open Wire (X = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA)
