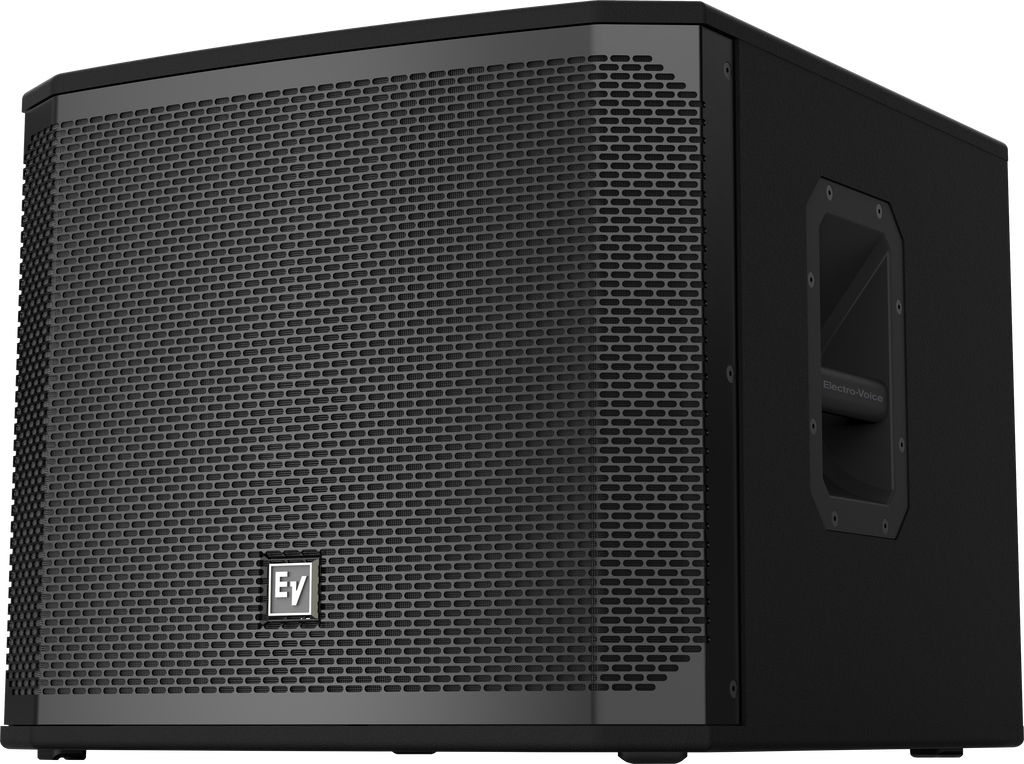

EKX-15S — 15" passive subwoofer
- 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing high-sensitivity transducers designed and engineered by EV
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
- Large slot ports for low distortion and excellent bass extension
- Metal grille reinforcement bar

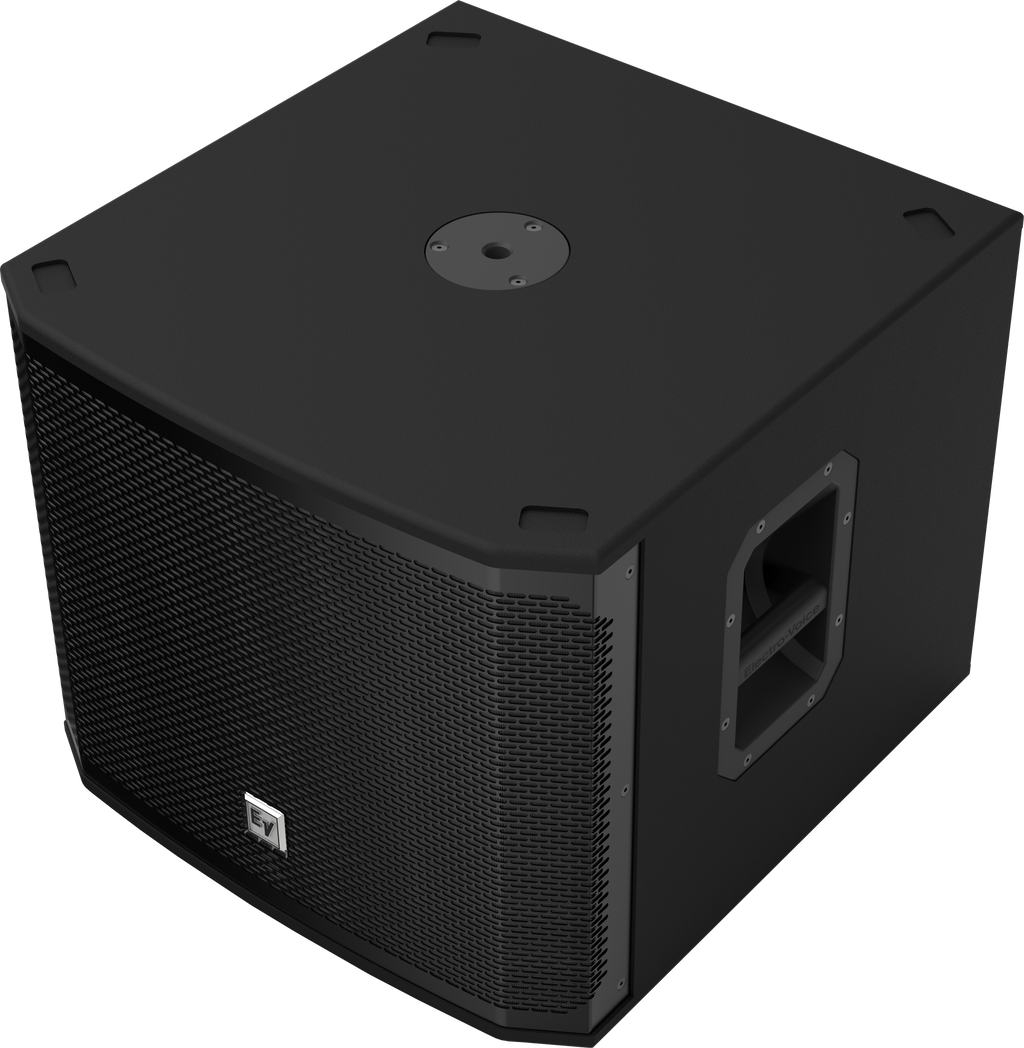

- M20 threaded pole mount plate
EKX combines renowned EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians, DJs and small-to-medium live, club, and installed sound applications. EKX is equipped with professional features not usually found at its price point, making it an incredible value.
| Frequency Response (-3 dB) |
60 Hz – 100 Hz |
| Frequency Range (-10 dB) |
40 Hz – 300 Hz |
| Maximum SPL |
133 dB |
| LF Transducer |
EVS-15C 381 mm (15 in) |
| Power Handling (Continuous / Peak) |
400 W / 1600 W |
| Nominal Impedance |
8 ohms |
| Minimum Impedance |
7.5 ohms |
| Axial Sensitivity (SPL, 1W @ 1m) |
95 dB |

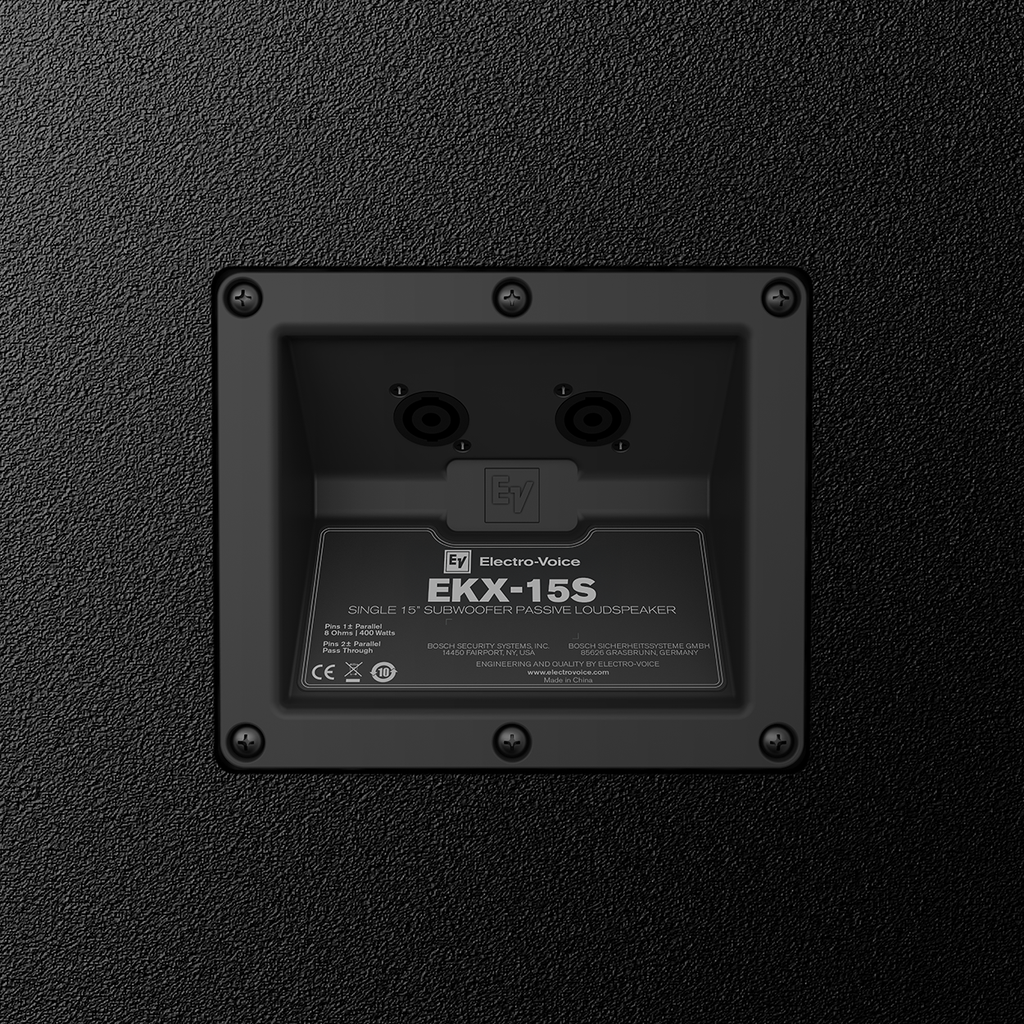

| Connector Type |
Dual NL4 |
| Enclosure Material |
15 mm plywood with EVCoat |
| Grille |
18 AWG steel with powdercoat |
| Dimensions (H x W x D) |
455 mm x 530 mm x 551 mm (17.9" x 20.9" x 21.7") |
| Net Weight |
24.9 kg (54.9 lb) |
| Shipping Weight |
31.3 kg (69.0 lb) |
