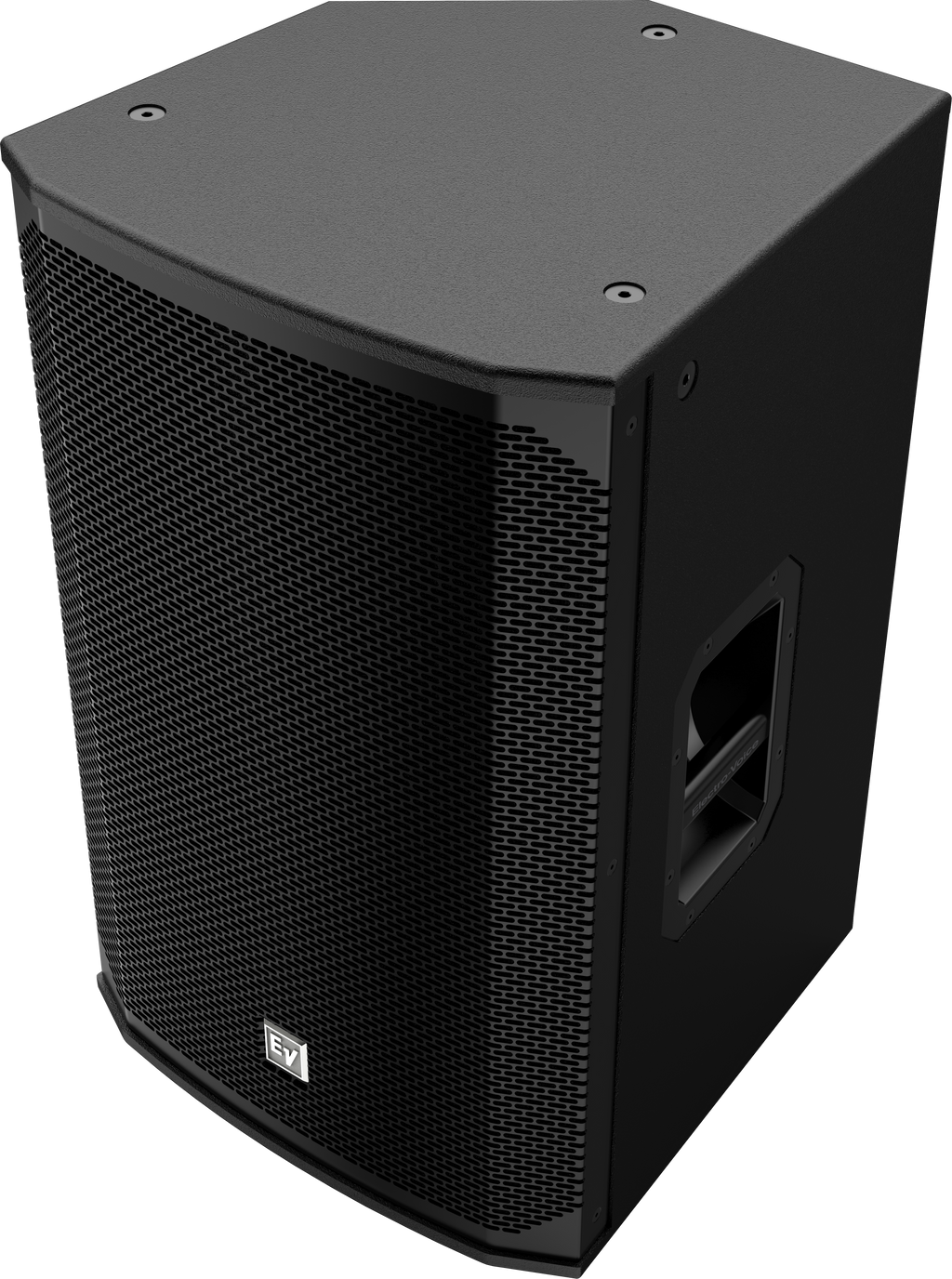

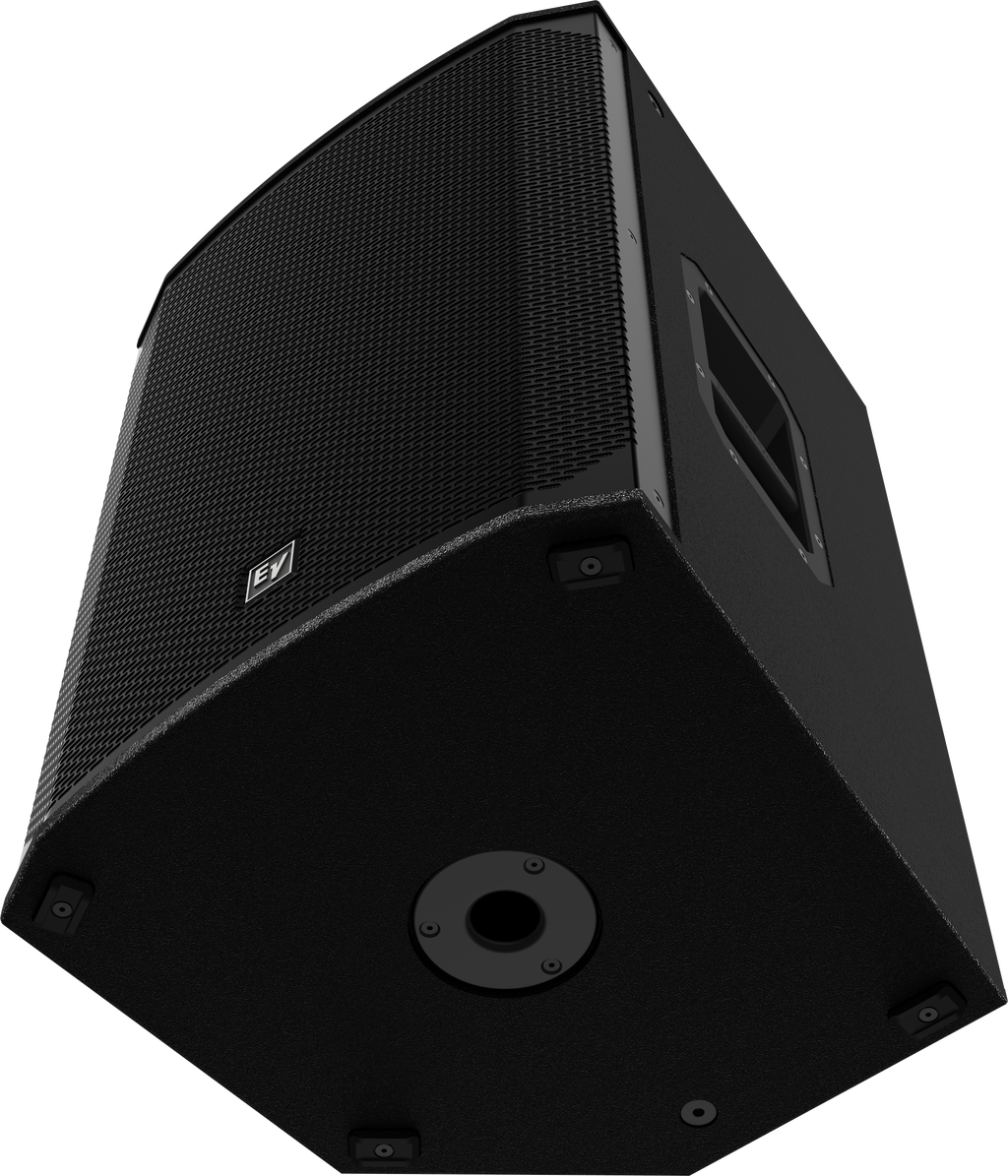

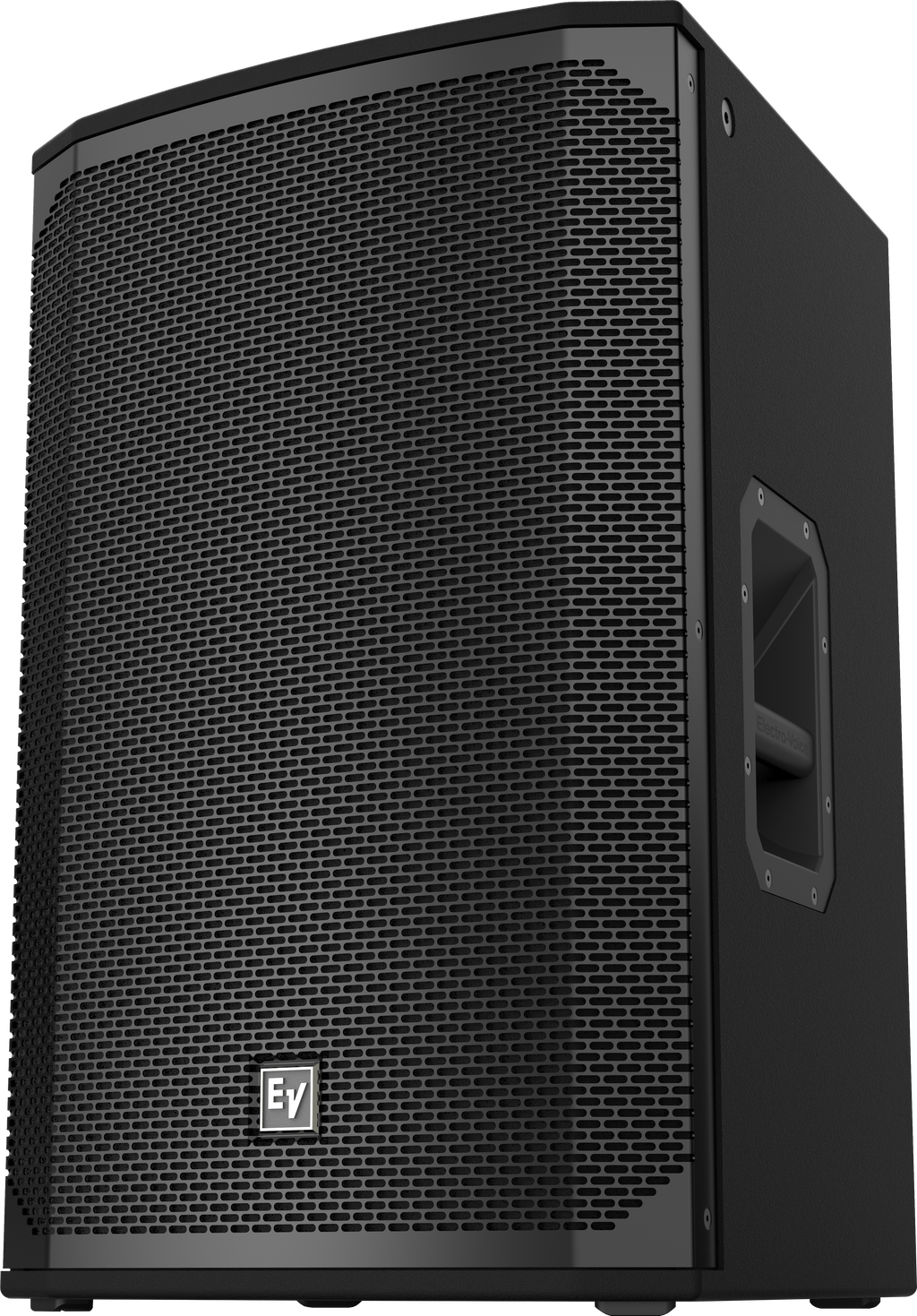

EKX-15 — 15" passive loudspeaker
- EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet
EKX combines renowned EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians, DJs and small-to-medium live, club, and installed sound applications. EKX is equipped with professional features not usually found at its price point, making it an incredible value.
| Frequency Response (-3 dB) |
75 Hz – 18 kHz |
| Frequency Range (-10 dB) |
50 Hz – 20 kHz |
| Maximum SPL |
132 dB |
| Coverage (Nominal -6 dB) H x V |
90° x 60° |
| LF Transducer |
EVS-15M 381 mm (15 in) |
| HF Transducer |
DH-1M 1-inch titanium compression driver |
| Power Handling (Continuous / Peak) |
400 W / 1600 W |
| Crossover Frequency |
1.6 kHz |
| Nominal Impedance |
8 ohms |
| Minimum Impedance |
7.2 ohms |
| Axial Sensitivity (SPL, 1W @ 1m) |
96 dB |
| Connector Type |
Dual NL4 |
| Enclosure Material |
15 mm plywood with EVCoat |
| Grille |
18 AWG steel with powdercoat |
| Suspension |
(8) M10 threaded mounting points |
| Dimensions (H x W x D) |
685 mm x 432 mm x 429 mm (27" x 17" x 17") |
| Net Weight |
23.2 kg (51.1 lb) |
| Shipping Weight |
28.2 kg (62.2 lb) |
