EKX-12P — 12" powered loudspeaker
- QuickSmartDSP features best-in-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD
- High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV
- Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage

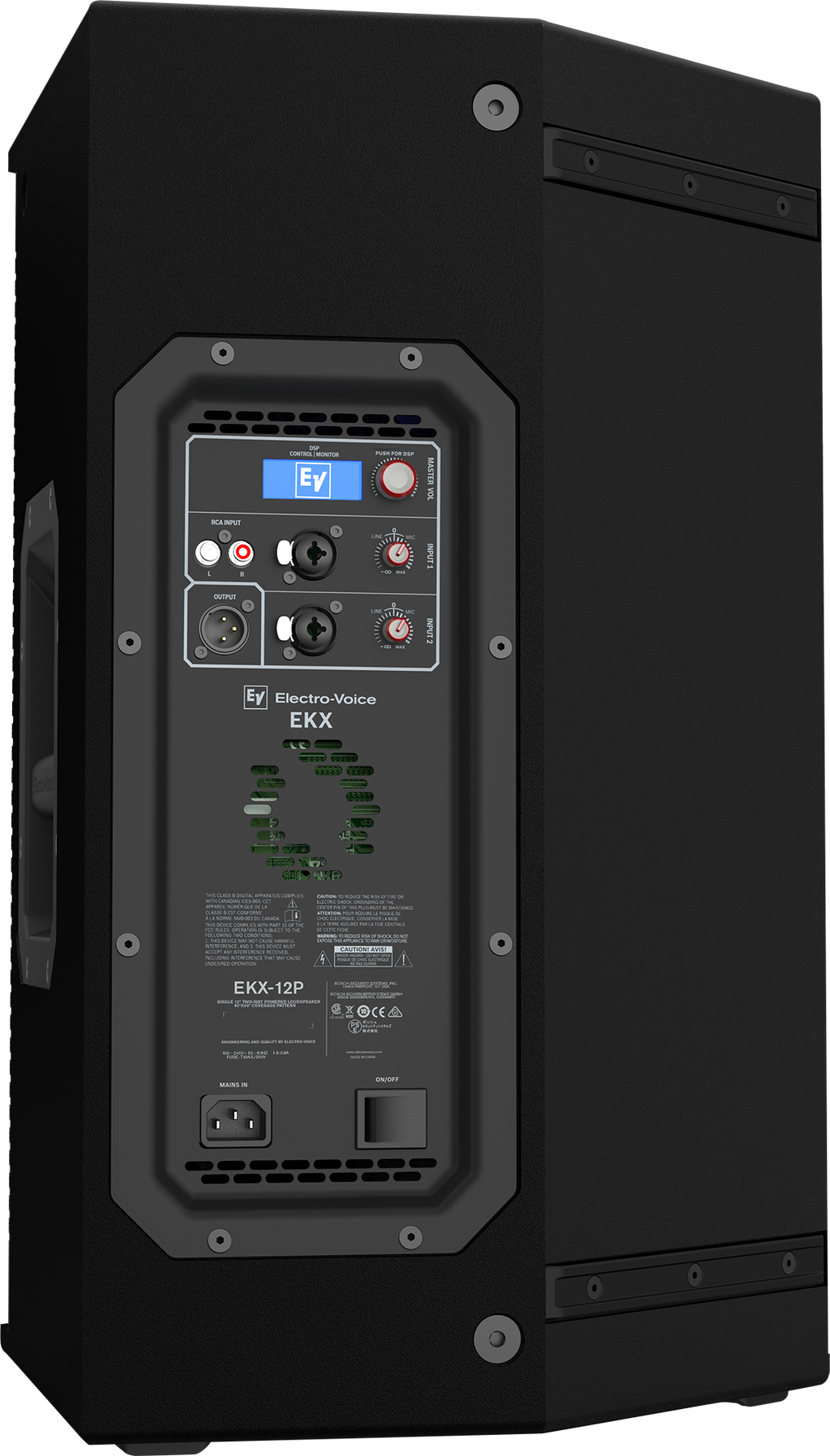

- Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles
EKX combines renowned EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians, DJs and small-to-medium live, club, and installed sound applications. EKX is equipped with professional features not usually found at its price point, making it an incredible value.
| Frequency Response (-3 dB) |
60 Hz – 18 kHz |
| Frequency Range (-10 dB) |
50 Hz – 20 kHz |
| Maximum SPL |
132 dB peak |
| Coverage (H x V) |
90° x 60° |
| Power Rating |
1500 W |
| LF Transducer |
EVS-12M 300 mm (12 in) |
| HF Transducer |
DH-1M 1-inch titanium compression driver |
| Crossover Frequency |
1.7 kHz |
| Connectors |
(1) Stereo RCA input, (2) XLR/TRS combo jack, (1) XLR link output |
| Enclosure |
15 mm plywood with EVCoat |
| Grille |
18 AWG steel with powdercoat |
| Suspension |
(8) M10 threaded mounting points |
| Dimensions (H x W x D) |
607 mm x 375 mm x 356 mm (24" x 15" x 14") |
| Net Weight |
18.8 kg (41.4 lb) |
| Shipping Weight |
22.9 kg (50.4 lb) |
| Power Consumption |
1.8 A (at 1/8 power) |
