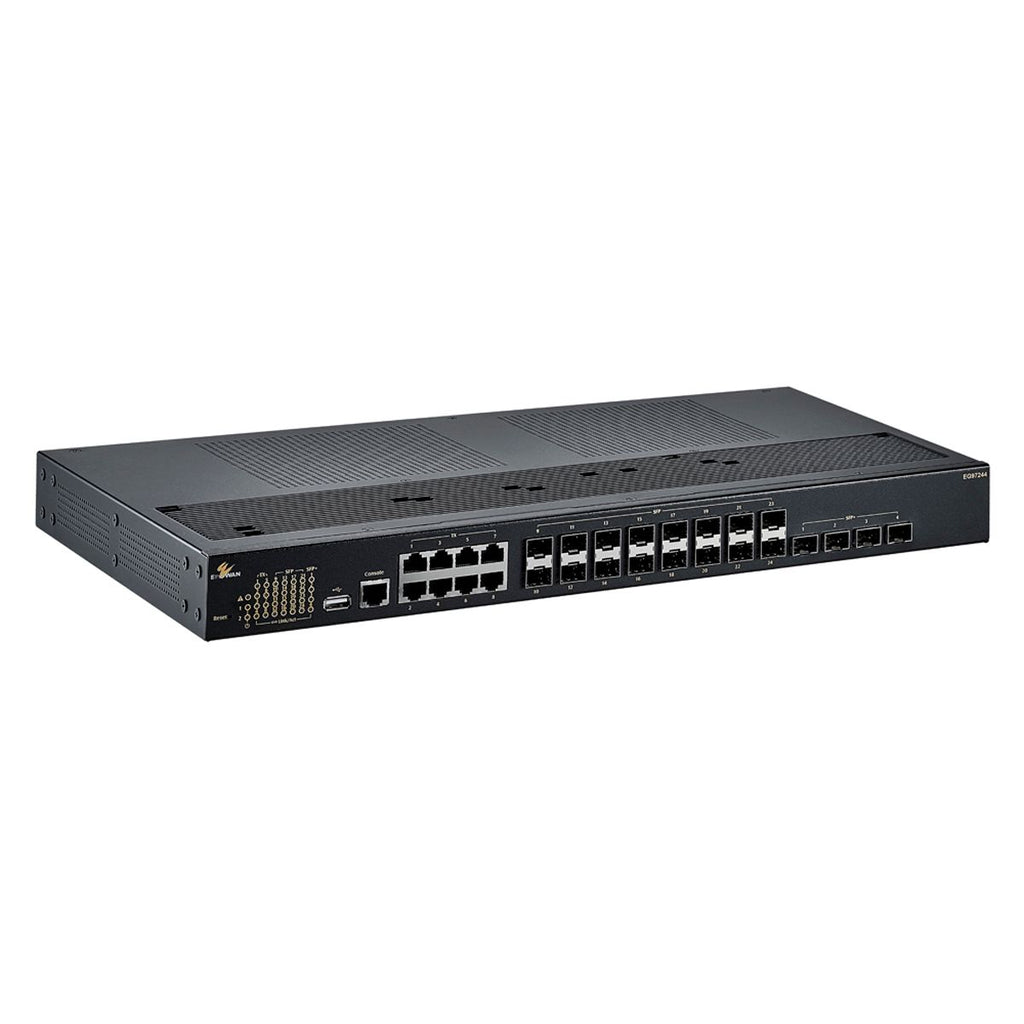

EtherWAN EG97244-4VTR, 24-port Gigabit and 4-port 1G/10G SFP+ Hardened Managed Layer 3 Switch

EtherWAN's EG97244 is a hardened layer 3 switch/router, which allow for connecting networks. With multiple gigabit SFP connections for fiber along with a 10-gigabit backbone, the EG97244 provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, and other areas where connectivity is crucial. EtherWAN - "When Connectivity is Crucial."

Highlights

• High Bandwidth and Highly Flexible Ports: 16 x 100/1000M dual-rate SFP ports for multiple fiber connections; 4 x 1/10G dual-rate SFP+ ports for connections into the hub/core; 8 x 10/100/1000BASE-T RJ45 ports
• Compliant Products: TAA Compliant for government projects; NEMA TS2 rated; UL certified for safety
• Hardened-Grade for Non-Ventilated & Harsh Environments: Wide operating temperature range -40 to 75C (-40 to 167F); Fan-less operation; High impact, thermal shock, and electrical noise resistance
• Management/Security Features: Port control; Storm detection and control; Configure and monitor with eVue and eLite
• Full Layer 3 Functionality: Optimized routing at hardware level; Improved fault isolation; Layer 3 capability connects networks together
• Lifetime Warranty: Complimentary Technical Support; Free Firmware Upgrades; Includes ECN and EOL notices

Features

• Interface: CLI, Telnet, Web GUI
• Management: Firmware upgrade; Configuration backup; DHCP Server/Client; RMON (Remote Monitoring); Port Mirroring; NTP (Network Time Protocol) synchronization; LLDP (Link Layer Discovery Protocol); IPv4/IPv6; SNMP v1/v2c/v3
• Layer 3 Features IPv4: Unicast Routing (Static Routing (1K); RIP v1/v2; OSPF v2); Multicast Routing (PIM-DM; PIM-SM; PIM-SSM); Routing Redundancy (VRRP)
• Security: MAC Address filtering; Enable/Disable port; Storm control; System logging; Remote authentication through RADIUS and TACACS+; Complex password support; Multi-user login and privileged access management; SSH for CLI and Telnet security; SSL and HTTPS for web security; ACL (Access Control List, up to 4096 entries)
• Layer 3 Features IPv6: IPv6 Unicast Routing (RIPng; OSPF v3); IPv6 Multicast Routing (PIM6-DM; PIM6-SM); IPv6 Routing Redundancy (VRRP v3)
• Quality of Service (QoS): Priority Queues 8 queues per port; Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode; Rate Limiting (Ingress/Egress)
• Layer 2 Features: Auto-negotiation for port speed and duplex (Flow Control; IEEE 802.3x full duplex mode; Back-pressure half duplex mode); Redundant Protocols (IEEE 802.1D STP; IEEE 802.1w RSTP; IEEE 802.1s MSTP; ITU-T G.8032 Ethernet Ring Protection Switch (ERPS)); VLANs (IEEE 802.1Q Tag VLANs; GVRP; GMRP); Link Aggregation (Static Trunk; IEEE 802.3ad LACP); IGMP Snooping v1/v2/v3
• Software Properties and Performance: Switch IC Capability 320Gbps; Forwarding Rate 238.08Mpps; Total VLAN Entries 256 (4096 VID); Jumbo Frame Size 12KB; MAC Table Size 24K; Packet Buffer Memory 32M bits; L2 Routes Up to 24,000 unicast and 1,000 multicast routes; L3 IPv4 Routes Up to 8,000 unicast and 8,000 multicast routes; L3 IPv6 routes Up to 2,000 unicast routes

Specifications

• Ethernet: 8 x 10/100/1000BASE-T; 16 x 100/1000BASE SFP; 4 x 1G/10G SFP+
• Console: 1 x RJ45
• Config Backup: 1 x USB (Type A Connector)
• Alarm Contact: Relay output, current capacity 0.6A/30VDC
• LED Indicators: Per Unit Power 1, Power 2, Alarm; Per Port Link/Activity
• Power Input: VTR +/-48VDC Redundant (Terminal block); VWR 100-240VAC Redundant (Terminal block); VCR 100-240VAC Redundant (AC Inlet)
• Power Consumption: 75W Max
• Casing Material: Aluminum
• Dimensions: 442 x 325 x 44mm (W x D x H); 17.4in x 12.8in x 1.73in
• Weight: 5.6kg (12.3lbs)
• Installation Type: Rack mounting
• IP Rating: IP30
• Operating Temp.: -40 to 75C (-40 to 167F)
• Storage Temp.: -45 to 85C (-49 to 185F)
• Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 1,143,890 hours
• Warranty: Limited Lifetime; www.etherwan.com/support/warranty-policy
• What's Included: Device Ethernet Switch; Cables 1 Console Cable; Power 1 AC Power Cord; Installation Mounting brackets, screws; Documentation Quick install guide
• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3ad link aggregation control; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x full duplex and flow control; IEEE 802.1D STP; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANs; IEEE 802.1s MSTP; IEEE 802.1w RSTP; IEEE 802.1x PNAC; IEEE 802.1ab LLDP
• Forward/Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps; 14,881,000pps for 10Gbps
• Processing Type: Store-and-forward; Auto-negotiation; Half-duplex back-pressure and full-duplex flow control; Auto MDI/MDIX
• System Memory: 4Gb DDR3 SDRAM
• Flash Storage: 2GB
• ISO: Manufactured in ISO-9001 facility
• EMC: EN 55032
• EMI: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4
• EMS: EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic field)
• Safety: UL 62368
• Traffic: NEMA TS2
• Rail: EN 50121-4
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Free Fall: FED STD 101C Method 5007.1
• Ordering: EG97244 (8-port 10/100/1000BASE-T + 16-port 100/1000BASE SFP + 4-port 1G/10G SFP+ Hardened Managed Layer 3 Switch) with power input interface suffix (Z)
• Power Input Interface (Z): TR +/-48VDC Redundant (Terminal Block); WR 100-240VAC Redundant (Terminal Block); CR 100-240VAC Redundant (AC Inlet)
• Accessories: Hardened 100BASE SFP Modules (www.etherwan.com/products/SFP-fiber-transceiver); Hardened Gigabit SFP Modules (www.etherwan.com/products/SFP-fiber-transceiver); Power Supplies (www.etherwan.com/products/power-supplies/power-adapters); EX41-2750A240 (Power Module for EG97244 series, 100-240VAC PSU (75W), AC Inlet)
