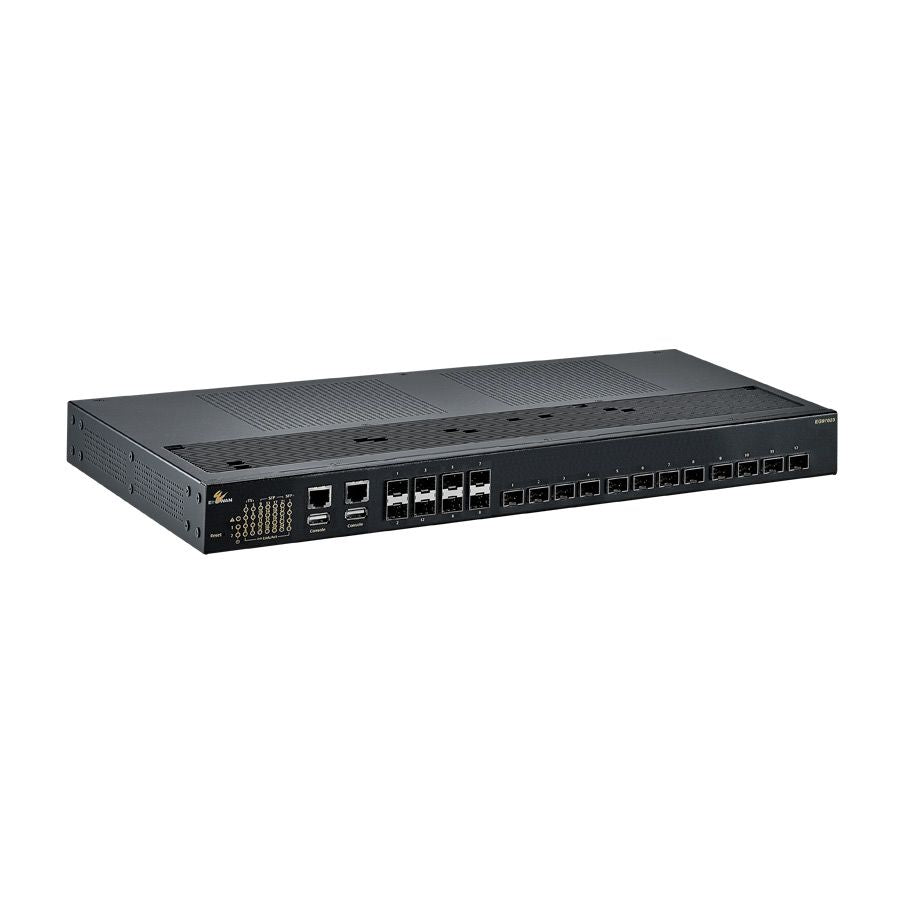

EtherWAN EG97023-2VWR, 12-port 10 Gigabit and 8-port Gigabit Hardened Managed Layer 3 Switch

EtherWAN's EG97023 is a hardened layer 3 core/distribution switch, designed to support high bandwidth routing in harsh environments. Equipped with 12 ports capable of up to 10-gigabit speed each and 8 additional gigabit ports, along with a full capacity switching bandwidth, the EG97023 provides the optimal solution for connecting multiple networks. In addition to layer 3 benefits such as improved fault isolation, simplified security management, network traffic segregation, lower network latency, and simplified troubleshooting, the EG97023 is hardened and fan-less, designed to last and operate through the harshest environments. Backed by a limited lifetime warranty, the EG97023 provides flexibility, ultra-fast speeds, and reliability to support networks in urban infrastructure, transportation, security and other areas where connectivity is crucial. EtherWAN - "When Connectivity is Crucial."

Highlights

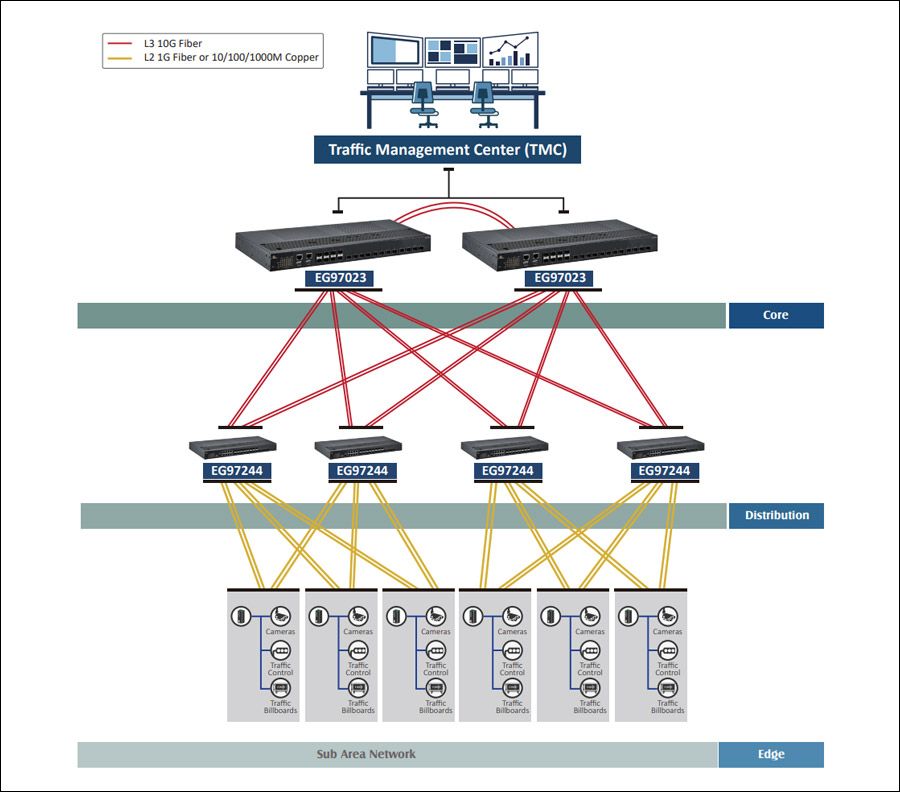

• High Density, High Bandwidth Fiber Solution: Multiple ports with ultra-fast 10-gigabit speeds running at full capacity; 12 dual-rate 10-gigabit SFP+ ports for fiber connections into the core/hub; 8 dual-rate gigabit SFP ports for fiber connections to the nodes/edge
• Compliant Products: NEMA TS2 rated; UL certified for safety; TAA/NDAA compliant for government projects
• Hardened-Grade for Non-Ventilated & Harsh Environments: Wide operating temperature range -40 to 75C (-40 to 167F); Fan-less operation; Thermal shock and electrical noise resistance
• Management/Security Features: Port Security, Authentication, and Access Control; Storm Detection, IP ACL, and System Logging; Configure and monitor with eVue
• Full Layer 3 Functionality: Optimized routing at hardware level; Improved fault isolation; Layer 3 capability connects networks together
• Lifetime Warranty: Complimentary Technical Support; Free Firmware Upgrades

Features

• Interface: CLI, Telnet, Web GUI
• Management: Firmware upgrade; Configuration backup; DHCP Server/Client; RMON (Remote Monitoring); Port Mirroring; NTP (Network Time Protocol) synchronization; LLDP (Link Layer Discovery Protocol); IPv4/IPv6; SNMP v1/v2c/v3
• Security: MAC Address filtering; Enable/Disable port; Storm control; System logging; Remote authentication through RADIUS and TACACS+; Complex password support; Multi-user login and privileged access management; SSH for CLI and Telnet security; SSL and HTTPS for web security; ACL (Access Control List, up to 4096 entries)
• Layer 2 Features: Auto-negotiation for port speed and duplex; Flow Control; IEEE 802.3x full duplex mode; Back-pressure half duplex mode
• Redundant Protocols: IEEE 802.1D STP; IEEE 802.1w RSTP; IEEE 802.1s MSTP; ITU-T G.8032 Ethernet Ring Protection Switch (ERPS)
• VLANs: IEEE 802.1Q Tag VLANs; GVRP; GMRP
• Link Aggregation: Static Trunk; IEEE 802.3ad LACP; IGMP Snooping v1/v2/v3
• Quality of Service (QoS): Priority Queues 8 queues per port; Traffic classification based on IEEE 802.1p CoS, DSCP, WRR, and strict mode; Rate Limiting (Ingress/Egress)
• Layer 3 Features IPv4: Unicast Routing Static Routing (1K), RIP v1/v2, OSPF v2; Multicast Routing PIM-DM, PIM-SM; Routing Redundancy VRRP
• Layer 3 Features IPv6: IPv6 Unicast Routing RIPng, OSPF v3; IPv6 Multicast Routing PIM6-DM, PIM6-SM; IPv6 Routing Redundancy VRRP v3
• Software Properties and Performance: Switching Fabric 256Gbps; Forwarding Rate 190.4Mpps; Total VLAN Entries 256 (4096 VID); Jumbo Frame Size 12KB; MAC Table Size 24K; Packet Buffer Memory 32M bits; L2 Routes Up to 24,000 unicast and 1,000 multicast routes; L3 IPv4 Routes Up to 8,000 unicast and 8,000 multicast routes; L3 IPv6 routes Up to 2,000 unicast routes

Specifications

• Ethernet: 8 x 100/1000 BASE-SFP; 12 x 1G/10G SFP+
• Console: 1 x RJ45, 1 x USB
• Config Backup: 1 x USB (Type A Connector)
• Alarm Contact: Relay output, current capacity 0.6A/30VDC
• LED Indicators: Per Unit Power 1, Power 2, Alarm; Per Port Link/Activity
• Power Input: VWR 100-240VAC Redundant (Terminal block); VCR 100-240VAC Redundant (AC Inlet)
• Power Consumption: 75W Max
• Casing Material: Metal
• Dimensions: 442 x 325 x 44mm (W x D x H); 17.4in x 12.8in x 1.73in
• Weight: 6.2kg (13.7lbs)
• Installation Type: Rack mounting
• IP Rating: IP30
• Operating Temp.: -40 to 75C (-40 to 167F)
• Storage Temp.: -45 to 85C (-49 to 185F)
• Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 585224 Hours at 25C
• Warranty: Limited Lifetime; www.etherwan.com/support/warranty-policy
• What's Included: Ethernet Switch; 1 Console Cable; 2 AC Power Cord; Mounting Brackets, Screws; Quick Install Guide
• Standards: IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3ad link aggregation control; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3ae 10Gbit/s Ethernet over fiber for LAN; IEEE 802.3an 10GBASE-T Ethernet over copper twisted pair cable; IEEE 802.3x full duplex and flow control; IEEE 802.1D STP; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANs; IEEE 802.1s MSTP; IEEE 802.1w RSTP; IEEE 802.1x PNAC; IEEE 802.1ab LLDP
• Forward/Filtering Rate: 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps; 14,881,000pps for 10Gbps
• Processing Type: Store-and-forward; Auto-negotiation; Half-duplex back-pressure and full-duplex flow control; Auto MDI/MDIX
• System Memory: 4Gb DDR3 SDRAM
• Flash Storage: 2GB
• ISO: Manufactured in ISO-9001 facility
• EMC: EN 55032
• EMI: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic field)
• Safety: UL 62368-1
• Traffic: NEMA TS2
• Rail: EN 50121-4
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Free Fall: FED STD 101C Method 5007.1
• Ordering: EG97023-2VZ (100/1000Base SFP 8; 1/10G SFP+ 12; Layer 3 Managed); Power Input Interface Z: WR = 100-240VAC Redundant (Terminal Block), CR = 100-240VAC Redundant (AC Inlet)
• Accessories: Hardened SFP Modules; Power Modules Spare Power Module for EG97023 series, 100-240VAC PSU (85W), AC Inlet
