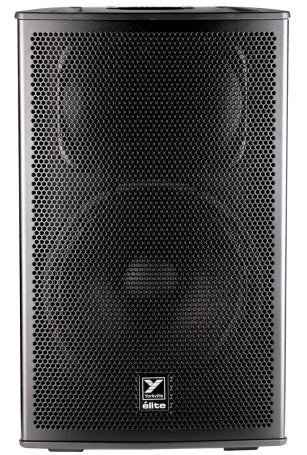

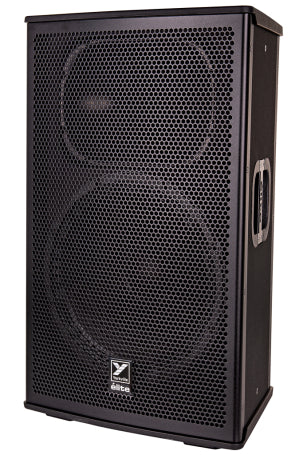

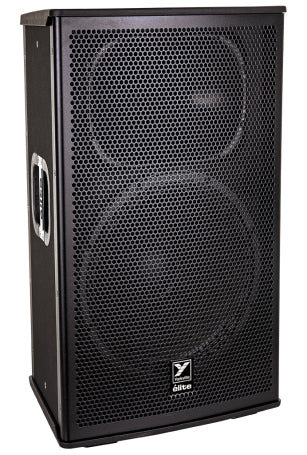

The EF15P is a 2-way active loudspeaker with innovative processing. Use it as a front-of-house speaker, personal monitor wedge, or self-contained compact PA for paging and playback with no mixer required.

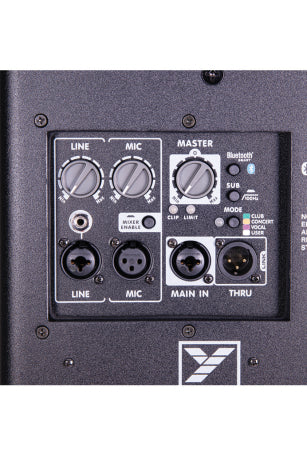

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4” TRS line level connections. An internal mixer can be engaged to add 1/8” TRS and 1/4” TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

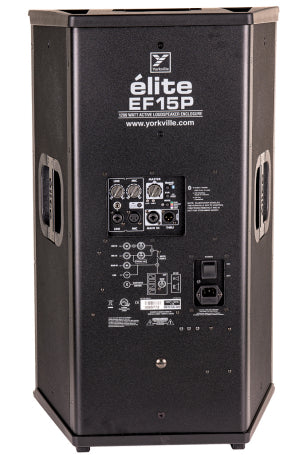

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn’t required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app.
A 900-watt amplifier powers the 15-inch woofer, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs.
Class D amplifiers, neodymium speaker magnets, and Baltic birch construction keep the total weight below 65 pounds while maintaining classic Elite ruggedness and durability.
Features
- 2400 W Peak Power (1200 W Program)
- 15” Long-Excursion Cast-Frame Neodymium Woofer with 3” Voice Coil
- 3” Titanium-Diaphragm Compression Driver
- Multiband DSP Limiting with 4 Preset Performance Modes
- iOS and Android App for Added Cabinet Control
- ABS-Coated Birch Plywood Cabinet Construction
- Made in Canada
Specifications
| System Type |
Powered Loudspeaker |
| Power Rating |
2400 W Peak (1200 W Program) |
| Max SPL |
133 dB Peak (127 dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
43 Hz - 16 kHz |
| Crossover Frequency |
1100 Hz |
| HF Driver(s) |
3" Voice Coil (Titanium Diaphragm) |
| HF Dispersion (°H x °V) |
60° x 40° |
| LF Driver(s) |
15" Neodymium Magnet with 3" Voice Coil |
| HF Power Amplifier (Watts) |
300 W |
| HF Amplifier Type |
3-Tier High Headroom |
| LF Power Amplifier (Watts) |
900 W |
| LF Amplifier Type |
Class D |
| In / Out Connections |
1 Combi-Jack (XLR / 1/4") Main Input, 1 XLR-M Thru |
| Inputs |
1 XLR Microphone Input, 1 Combi-Jack (XLR / 1/4"), 1/8" Line Input |
| Input Impedance (Bal/UnBal) |
95KΩ / 90KΩ |
| Input Sensitivity (Vrms Sine) |
+4 dBv / 1.23 V |
| Controls |
Mixer Enable, DSP Mode (Club, Concert, Vocal, Custom), Bluetooth Enable, Sub (100 Hz HP Filter) |
| Level Controls |
Mic Input Level, Line Input Level |
| Master Volume Control |
Yes |
| Bar Handles |
3 (2 Side, 1 Top) |
| Flypoints |
8 (2 Top, 2 Bottom, 2 Each Side), 2 Pullback |
| Flying Hardware |
1/4 - 20 |
| Pole Mount Adapter (1 3/8 |
1 (Bottom) |
| Enclosure Materials |
ABS Coated Baltic Birch Plywood |
| Grille |
Perforated Metal |
| Dimensions (DWH) |
14" x 18.5" x 30" (35.5 cm x 47 cm x 76 cm) |
| Weight |
64 lbs / 29 kg |
