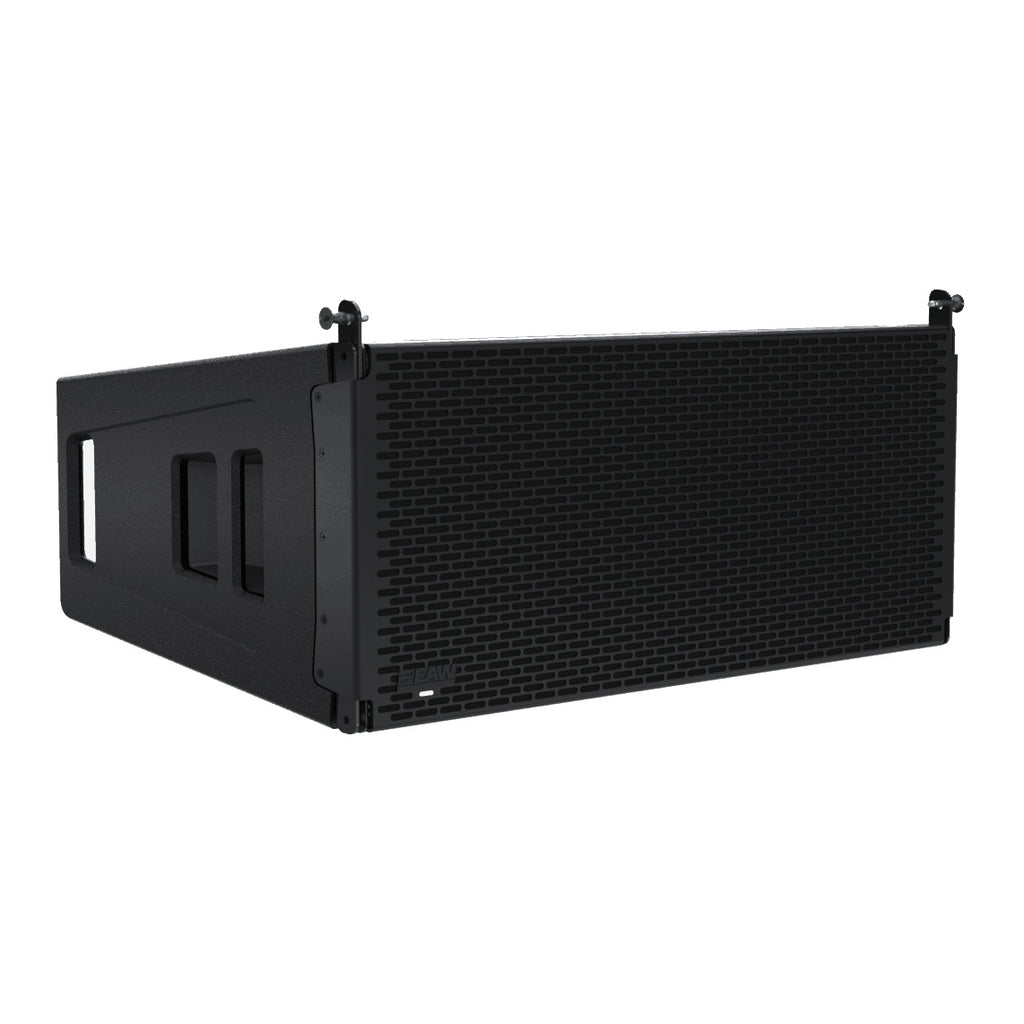

EAW RSX212L Black, Powered 12in 2-Way Line Array, 2 x 12in LF and 2 x 1.7in Exit 1.7in Voice Coil HF, Horizontal 90 Vertical 12, DANTE

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RADIUS articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. Resolution software provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Specifications

Frequency Response: 50 Hz -19 kHz

Max SPL: 142 dB

Operating Mode: Bi-amp LF, HF DSP w/EAW Focusing™ and DynO™

Subsystem: LF - 2 x 12 in cone, 2.5 in voice coil HF - 2 x 1 in exit, 1.7 in voice coil compression drivers.

Nominal Beamwidth: Horizontal 90° Vertical 12°

Power Handling: LF: 1000W HF: 500W

Connections: Powercon AC Mains/Loop 2x Neutrik® etherCON™ RJ-45 XLR Input/Loop

Dimensions: Height: 14 in (355.6 mm) Width: 32 in (812.8 mm) Depth: 20.38 in (517.7 mm)

Weight: 82 lbs (37 kg)
