Description

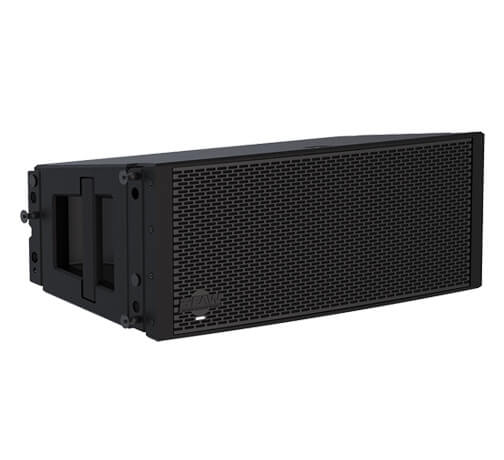

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RADIUS articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. Resolution software provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.
Specifications
Frequency Response: 70 Hz -18 kHz
Max SPL: 131 dB
Operating Mode: Amplifier Channels: Tri-amp LF,LF/MF, HF External Signal Processing: DSP w/EAW Focusing™ and DynO™
Subsystem: LF - 1 x 8 in cone, 2 in voice coil LF/MF - 1 x 8 in cone, 2 in voice coil HF - 2 x 1 in exit, 1.4 in voice coil compression drivers
Nominal Beamwidth: Horizontal 120° Vertical 12°
Power Handling: 3x 500W
Connections: Powercon AC Mains/Loop 2x Neutrik® etherCON™ RJ-45 XLR Input/Loop
Dimensions: Height: 9.80 in (248.9 mm) Width: 25.20 in (640.0 mm) Depth: 13.10 in (332.7 mm)
Weight: 40.5 lb (18.4 kg)
