Description
EtherWAN's EasyLink is a pre-configured point to point (PTP) Bridge kit which allows for connecting remote locations wirelessly up to 2 miles away. EasyLink's simple setup allows you to connect locations by mounting the hardware, powering them on and aligning the units using the built-in alignment LEDs. Each kit contains two paired units that connect automatically using a highly secure, unique, hidden SSID and randomly-generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it and you are connected.
Highlights
- Only Available in North America
- Highly Secure
- Hardened-Grade for Outdoor & Harsh Environments
Features

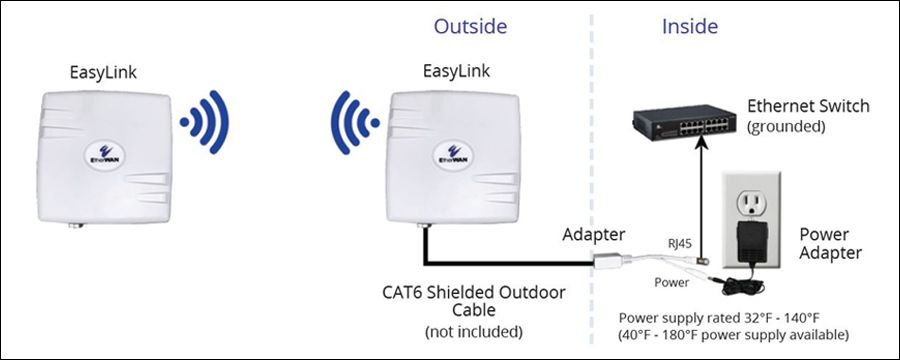

- Easy: Mount units to a pole or wall using included mount kit; Signal strength LEDs for easy alignment; Just power and align using supplied PoE injectors and power supplies; No technical expertise needed
- Highly Secure: Encrypted & Authenticated Wireless Connection (WPA2); Every kit has unique SSID and security settings

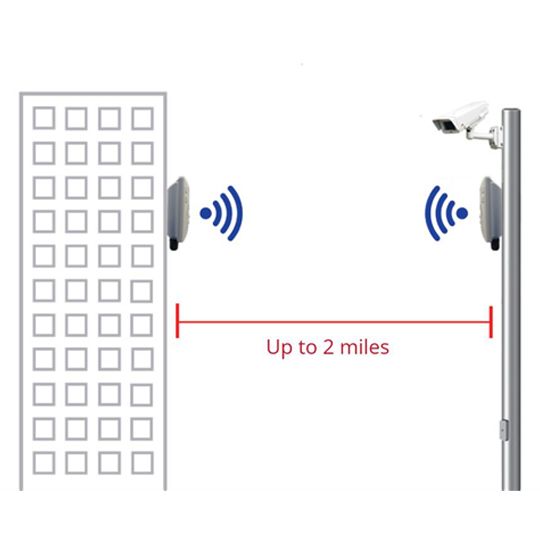

- Hardened-Grade for Outdoor & Harsh Environments: Fanless and ruggedized outdoor IP67 enclosure (Rainproof); Wide operating temperature range (-40 to 167F); Connections up to 2 miles away
- What's Included: 2 x units preconfigured to connect with optimal performance up to 300Mbps; Includes all Mounting Hardware; Includes 2 x power supplies and 2 x PoE injectors
Specifications
- Wireless Frequency: 5 GHz
- Wireless Max data rate: 300 Mbit/s
- Wireless Number of chains: 2
- Wireless Standards: 802.11a/n
- Wireless Security: WPA2 Passphrase, 256-bit AES-CCM Encryption, Dynamic Frequency selection
- Layer 2 Features: Auto-negotiation for port speed and duplex
- Redundant Protocols (always enabled): IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
- Interface Ethernet: 10/100/1000BASE-T Passive PoE
- Interface Wireless: 802.11a/n
- Technology Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3x full duplex and flow control, IEEE 802.1D STP, IEEE 802.1s MSTP, IEEE 802.1w RSTP, IEEE 802.11w Management Frame Protection (MFP)
- Power: PoE in (Passive PoE), PoE in input Voltage 6-30V, Max power consumption 10W
- Physical Casing Material: UV Protected Polystyrene case
- Physical Dimensions: 185 x 185 x 63.5mm (W x D x H) / 7.28 in x 7.28 in x 2.5 in
- Physical Weight (shipping): 5.3lbs (2.4kg)
- Physical Installation Type: Pole/Wall
- Environmental Operating Temp.: -40 to 75 C (-40 to 167 F)
- Environmental Storage Temp.: -45 to 85 C (-49 to 185 F)
- Environmental Relative Humidity: 5% to 95% (non-condensing)
- Environmental Wind Survivability: 200km/h (power supply rated 5 to 158 F)
- Regulatory ISO: Manufactured in ISO-9001 facility
- Regulatory EMI: FCC Part 15B Class A, FCC Part 15C
- Environmental Test Compliance: IEC 60068-2-6 Fc (Vibration Resistance), EN 61000-4-3 (Radiated RFI)
- Warranty Length: 3 Years
- MPN: EASYLINK-300-US, 1683907
- Antenna Frequency Range: 5-5.9 GHz
- Antenna Gain: 13dBi typ.
- Antenna Polarization: Dual linear-V & H
- Antenna Beamwidth Horizontal: 37 deg @ -3dB
- Antenna Beamwidth Vertical: 37 deg @ -3dB
- Antenna VSWR: <2.0 typ.
- Antenna Impedance: 50 Ohm
- Antenna RF Interface: 2 x SMA Female
- Antenna Front-to-Back Ratio: >20dB
- Antenna Port-to-Port Isolation: >30dB
- Ordering Model EasyLink-300-US: Wireless Bridge Kit - Two paired Wireless Bridge Units, 2 x 24VDC, 1.5A Power Supplies, 2 x Passive PoE Injectors and 2 x Mounting Kits
- Ordering EasyLink-PSU-INJ: Replacement Power Supply and Gigabit Passive PoE Injector for EasyLink Wireless Bridge Series
- Ordering Cable 3: 3ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
- Ordering Cable 25: 25ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
- Ordering Cable 50: 50ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
- Ordering Cable 150: 150ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
- Ordering Cable 300: 330ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
- Package Contents: 2 x Paired EasyLink Units, 2 x Wall Power Supplies, 2 x PoE Injectors, 2 x Pole Mounting kit, 2 x Wall Mounting Poles, Quick Install Guide
