Description

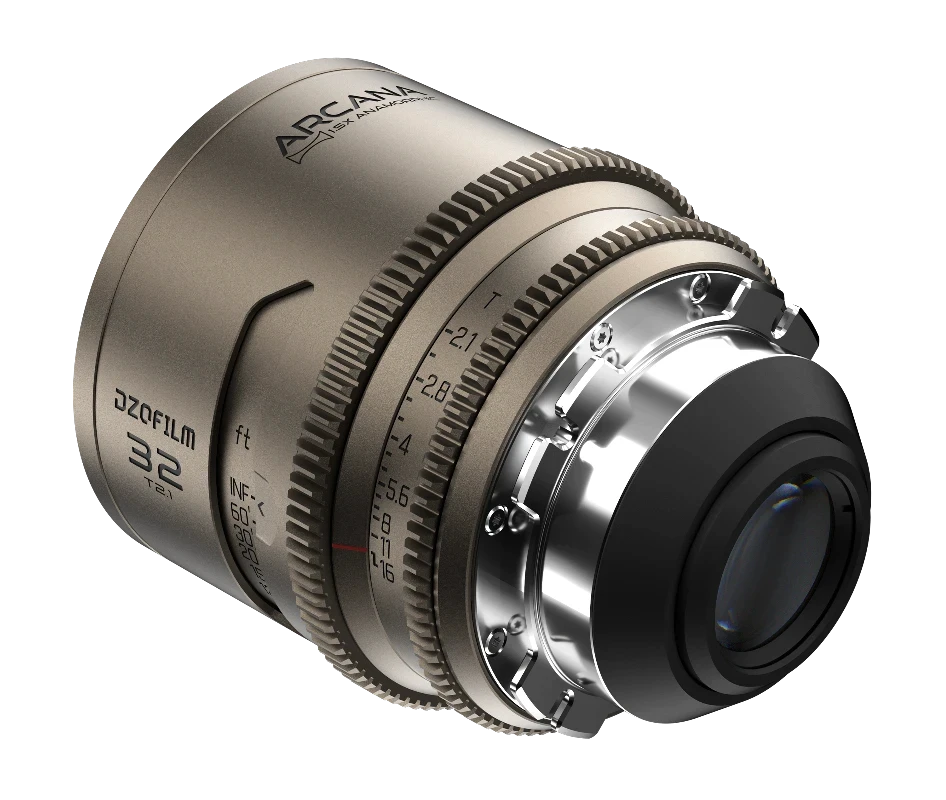

Arcana 32mm T2.1 Full-frame 1.5X Hybrid Anamorphic Prime Lens (PL mount,feet)
Trace the Light, Master the Flare
The mysterious world of Arcana offers a brand new way to look at anamorphic lenses. The DZOFILM ARCANA series Hybrid Anamorphic lens perfectly balances wide cinematic images with a small, lightweight design. By mixing great optics with smart engineering, these lenses help you discover new ways to tell your story.
Hybrid Anamorphic For Ultimate Visual Quality
By pairing a cylindrical lens with an oval aperture, the Arcana series overcomes the size and image quality constraints of traditional full-frame anamorphic lenses. The 700g lightweight design delivers exceptional resolution and ultra-low dispersion, while the rendering maintains the iconic bokeh and lens flare of high-end 2X anamorphic glass. It is the perfect balance of portability and elite image quality.
2X Bokeh, The Soul of Cinema
The entire series features a dynamic oval aperture design, ensuring a consistent oval bokeh at every T-stop. When paired with the 1.5x anamorphic front cylindrical elements, it effortlessly produces the waterfall bokeh of 2x anamorphic lenses. The T2.1 aperture delivers a high-end cinematic look across the line, easily isolating the subject to create the immersive, three-dimensional depth typical of larger formats.
Front-facing Cylindrical, Neutral Flare

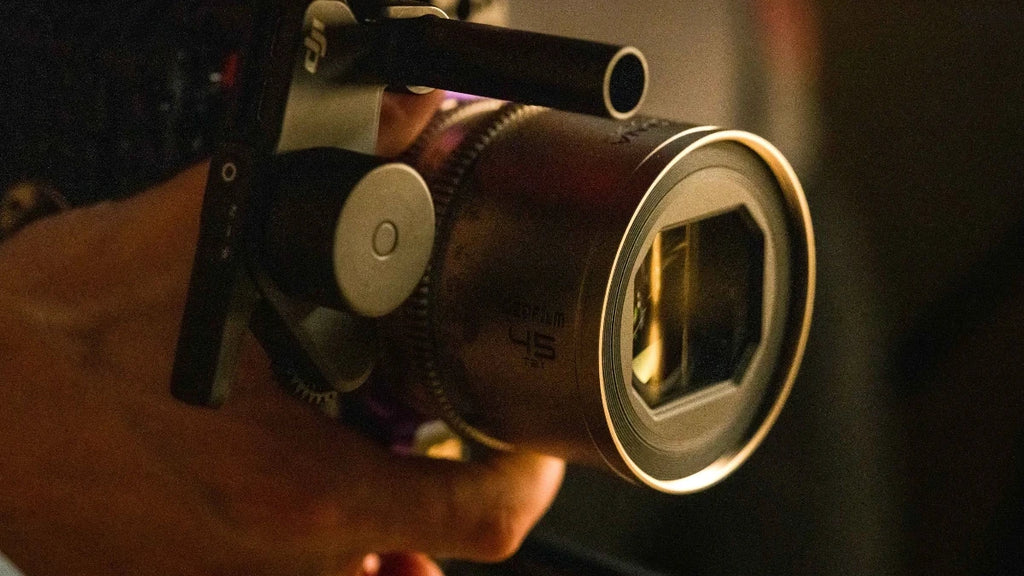

Featuring a classic front-cylindrical design, these lenses embrace signature barrel distortion and a constant squeeze ratio, effectively eliminating the mumps effect. This consistency reduces the burden on post-production while allowing the iconic anamorphic horizontal flares to dance with the light, rendering infinite colors from different light sources.
Compact Size, Ultimate Light

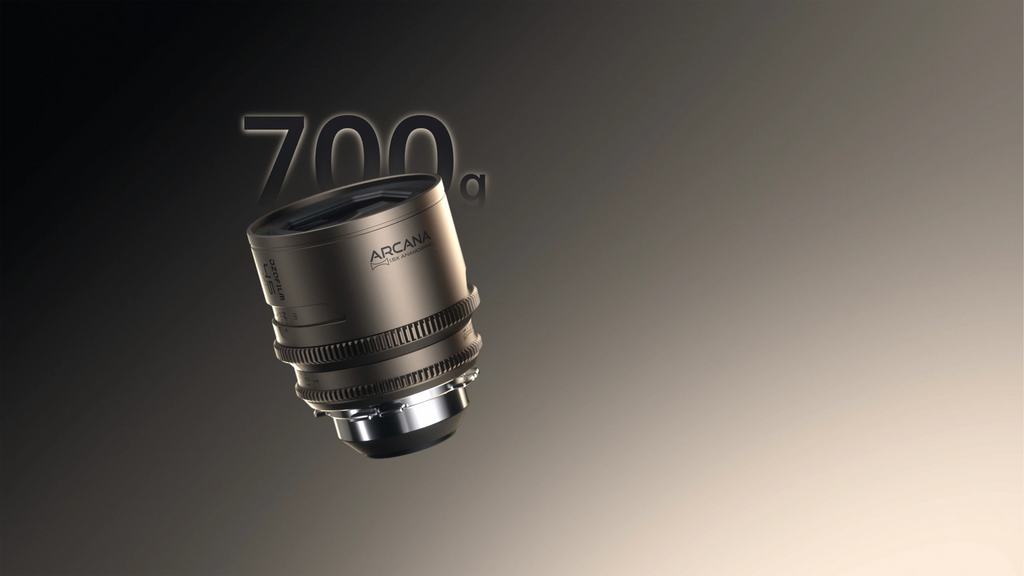

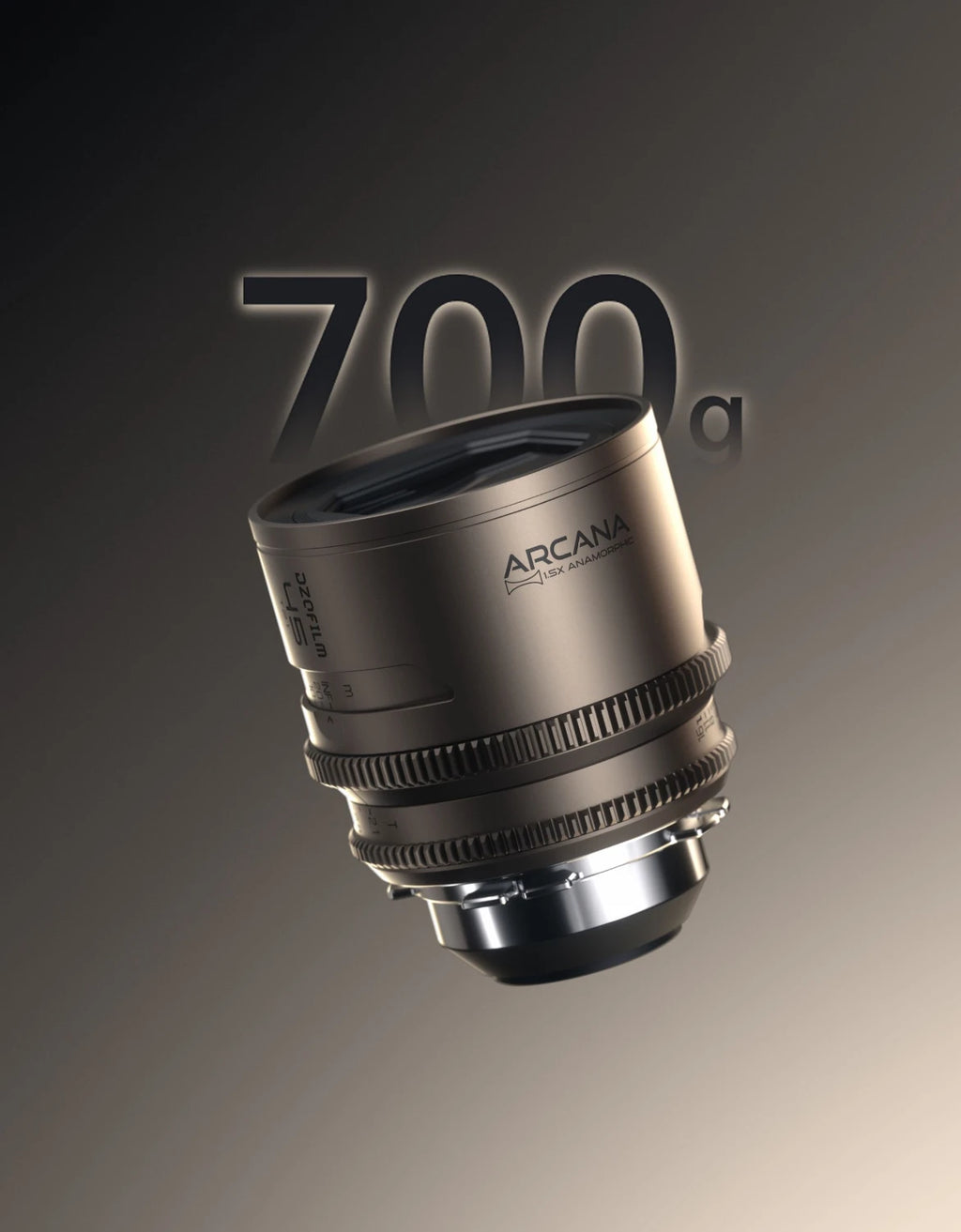

A robust all-aluminum alloy housing finished with an all-new titanium-tone anodization. The entire series features a lightweight design of approximately 700g, more portable than any previous DZOFILM optics. With a class-leading minimum focus distance of 48 to 78cm, it allows for effortless control during solo handheld, gimbal-mounted setups, or when integrated with the DJI Ronin 4D.
Versatile Compatibility, Infinite Expansion
80mm front diameter with 77mm thread; compatible with standard circular filters and matte box mounting. The 21mm rear lens element design ensures compatibility with VND filter adapters and auto-focus adapters. The PL mount features a multi-point positioning design for vertical shooting, allowing easy adaptation and seamless integration with a wide range of cinema cameras and mirrorless systems.
Specifications
- Specification (Arcana 1.5X Hybrid Anamorphic series)
- Focal Length: 32 / 45 / 75 mm
- Colour: Titanium
- Mount: PL
- Aperture: T2.1-T16
- Image Circle: 43.3mm (36mm x 24mm, Full Frame)
- Optical Construction: 15 Elements in 13 Groups (all)
- Angle of View (horizontal x vertical): 97.0 x 41.4 (32mm), 70.0 x 30.2 (45mm), 42.6 x 18.8 (75mm)
- Close Focus (from sensor plane): 0.48m/1ft7in (32mm), 0.53m/1ft9in (45mm), 0.78m/2ft7in (75mm)
- Max Magnification Ratio: 0.092 (32mm), 0.111 (45mm), 0.116 (75mm)
- Squeeze Factor: 1.5X
- Iris Control: Manual (66 deg 32mm, 77 deg 45mm, 80 deg 75mm)
- Focus Control: Manual (270 degrees)
- Front Diameter: 80mm
- Length: 80mm (from lens front to flange plane)
- Iris Blade: 14
- Filter Size: M77
- Gear Pitch: 0.8 Mod
- Material: Aluminum Alloy
- Weight: 709g (32mm), 695g (45mm), 709g (75mm)
