Description

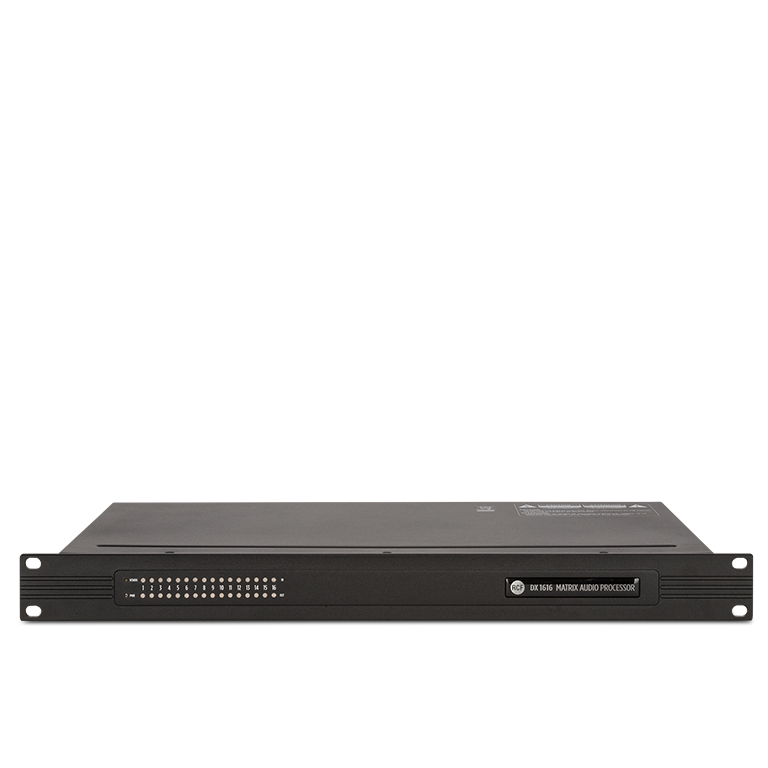

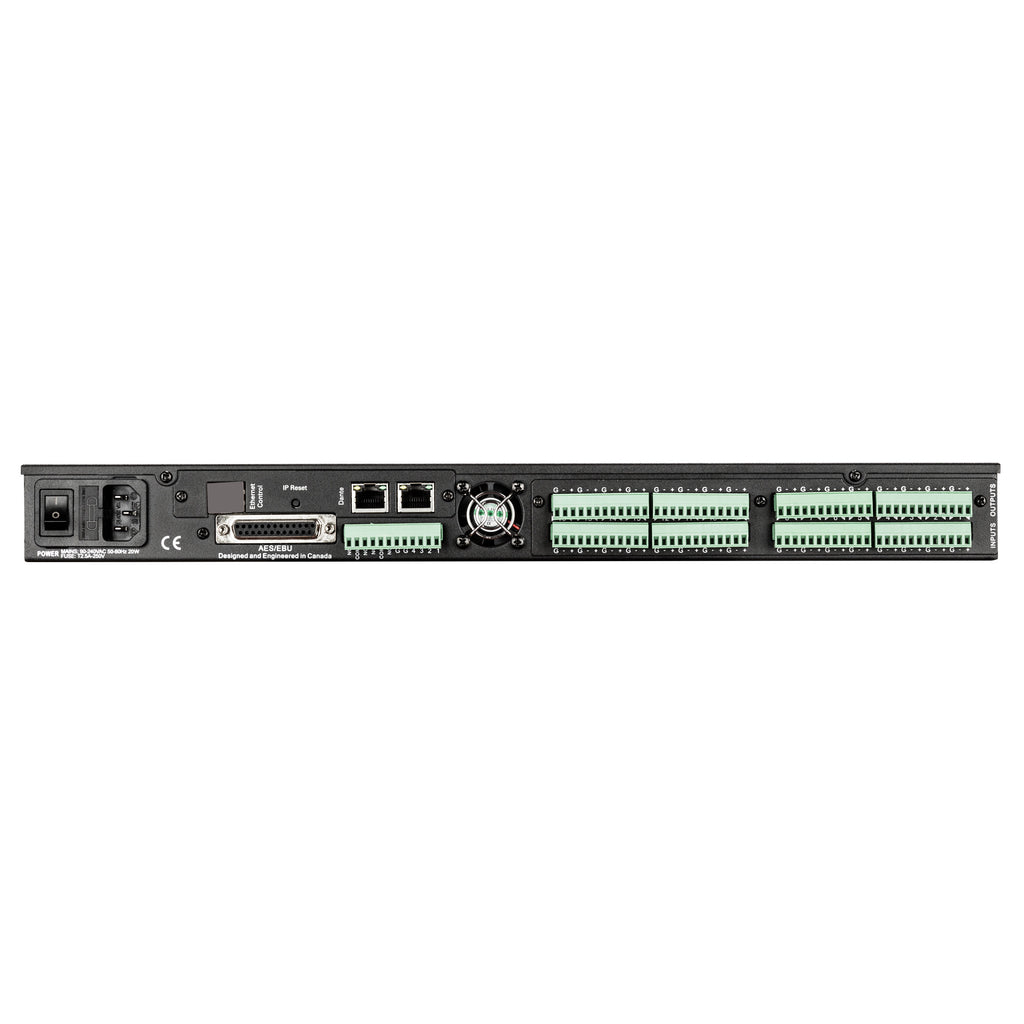

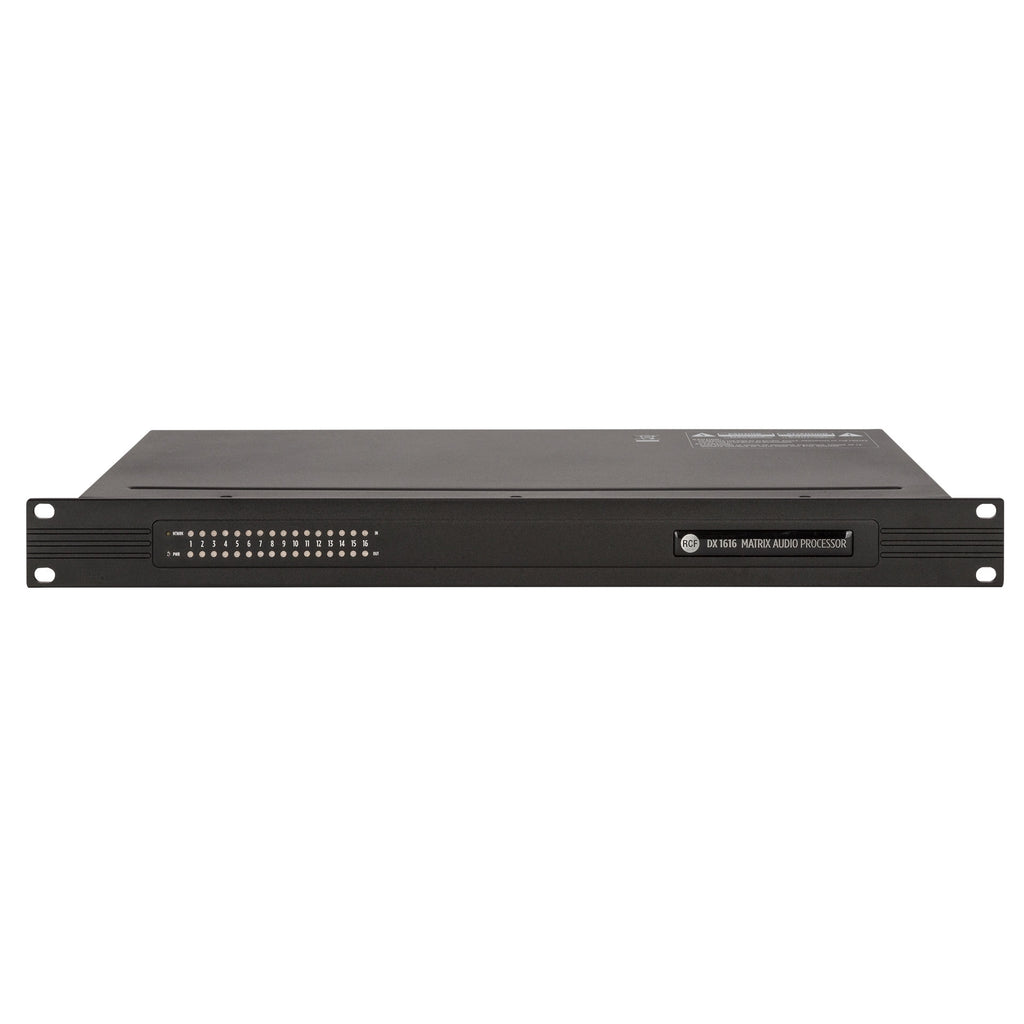

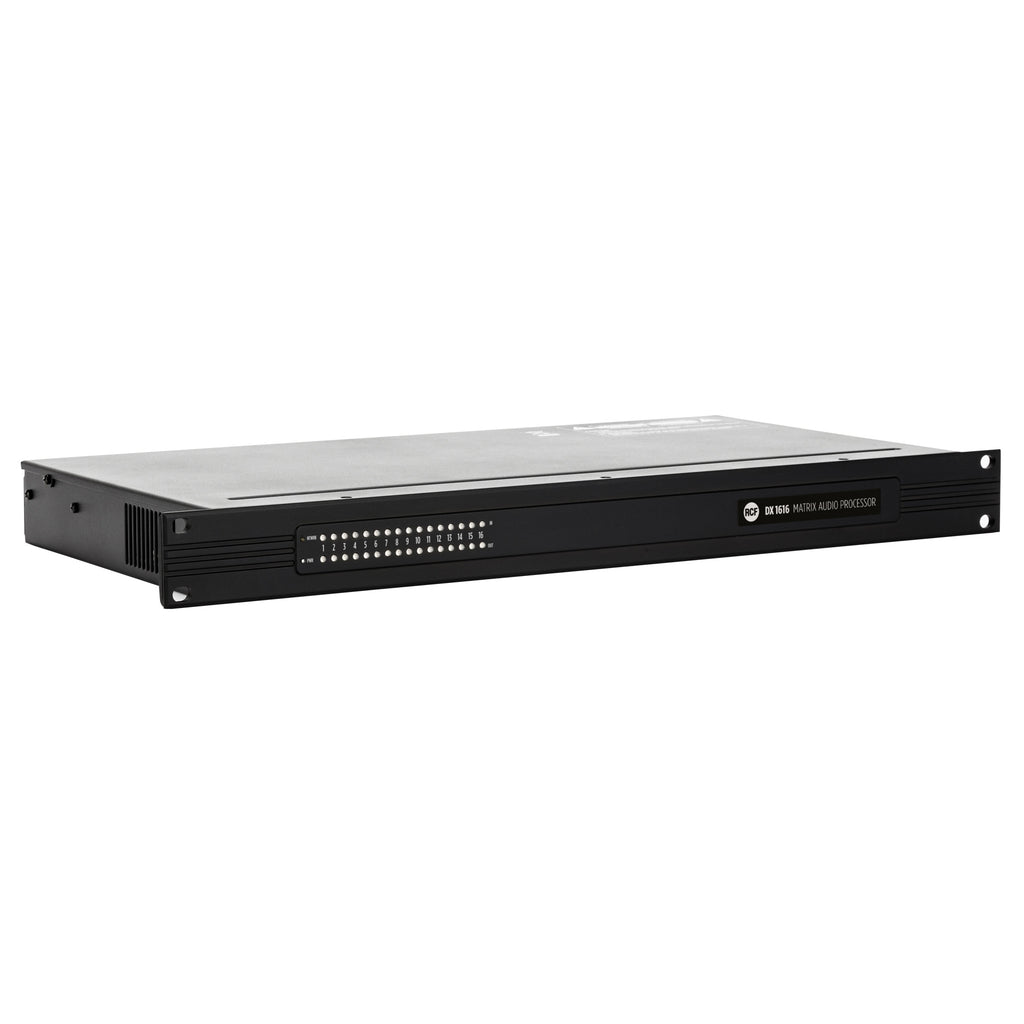

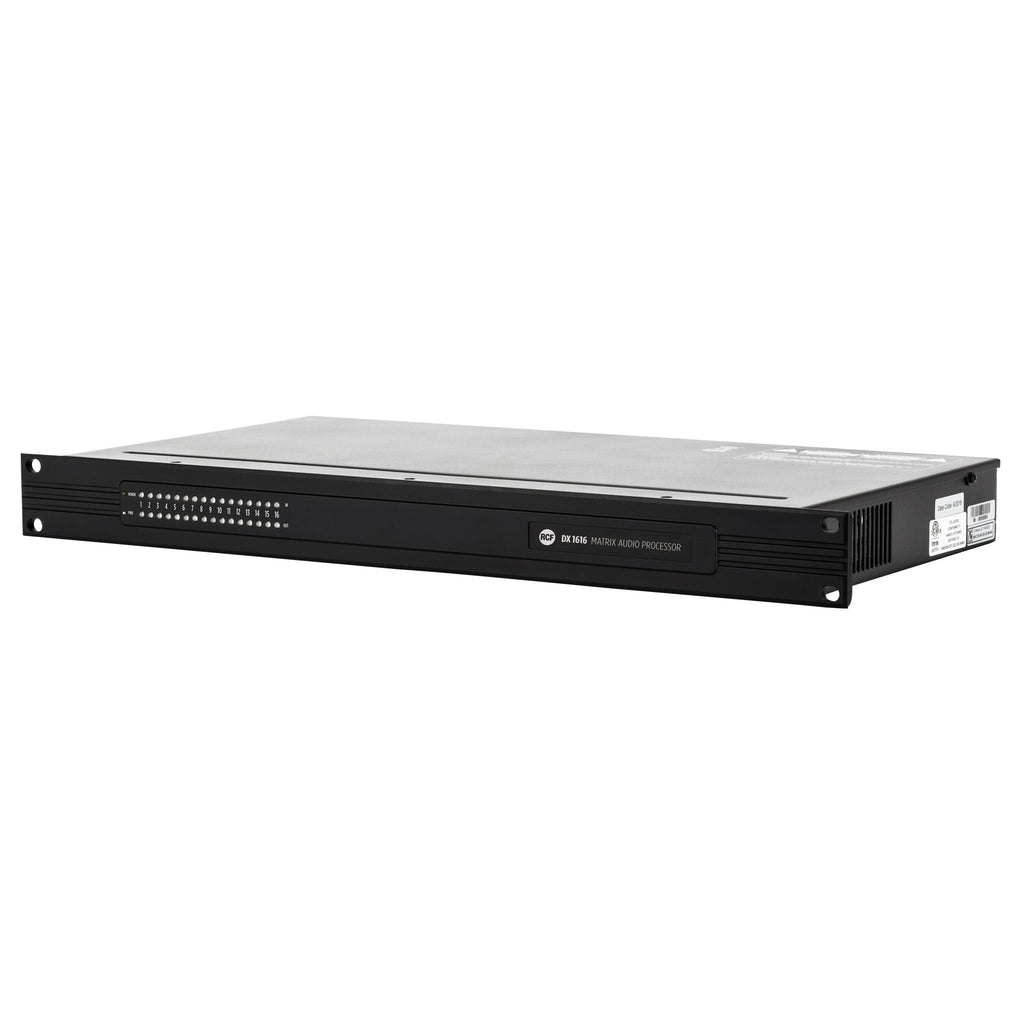

The RCF DX 1616 is a 16×16 matrix DSP audio processor designed for flexible routing and system processing in touring and installed sound. It runs a 48 kHz/40-bit floating-point engine with low latency (up to 3 ms) and combines Dante AoIP, 16 analog I/O, 8 AES I/O, and custom GPIO I/O in a single platform, with Ethernet connectivity, a dedicated Windows/macOS browser-based control panel, and XTouchApp for iOS and Android. On the processing side, it provides full input and output DSP blocks including HPF/LPF (6-48 dB/oct), 5-band parametric EQ, delay (up to 500 ms on inputs), compressor, plus output-stage tools such as shelving EQ, all-pass, additional delay, and limiting, enabling complete zone/array/feed management from one unit.
Features
- Hybrid architecture DSP
- 48 KHz sampling, 40 bit floating point engine
- 16 x 16 I/O matrix
- Dante enabled network audio transport
- 8 AES/EBU inputs - 8 AES/EBU outputs
- Ethernet connectivity and control
- Maximum latency 3 ms
- Easy to use software GUI
Specifications
| Audio performance | |
| Frequency Response (-3dB) | 20 Hz - 22 kHz |
| Dynamic range | >110 dB |
| Common Mode Rejection Ratio (50 Hz to 10 kHz) | >100 dB |
| Digital audio performance | |
| Resolution | 40 |
| Sampling rate | 48 |
| A/D - D/A converters | 24 |
| Propagation delay | 3 |
| Input section | |
| Total number of inputs | 17 |
| Balanced | 17 |
| Mono | 16 |
| Mic+Line inputs | 16 |
| Mic+Line Phantom | 21 V DC - 44 V DC |
| Digital inputs | 1 |
| Output section | |
| Signal output number | 16 |
| Processing | |
| DSP | Yes |
| EQ Filters | Yes |
| Delay | Yes |
| Tone controls | Yes |
| High-pass filter | 20 Hz - 20000 Hz |
| Crossover | 20 - 20000 Hz |
| Controls | |
| Number of programs/presets | 70 |
| Protections | |
| Cooling | Convection/Forced |
| Fuses | Yes |
| Power requirement | |
| Operating voltage | 90-240 V~ 50/60Hz |
| Power consumption (MAX) | 20 W |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Metal |
| Color | Black |
| Rack mounting | 19", 1U |
| Size / Weight | |
| Height | 44 mm / 1.73 inches |
| Width | 483 mm / 19.02 inches |
| Depth | 229 mm / 9.02 inches |
| Weight | 3.31 kg / 7.3 lbs |
| Shipping information | |
| Package Height | 378 mm / 14.88 inches |
| Package Width | 88 mm / 3.46 inches |
| Package Depth | 597 mm / 23.5 inches |
| Package Weight | 4.73 kg / 10.43 lbs |
