VOICE ALARM EN54 | COMMERCIAL | INSTALLED | DU 60EN | UNIVERSAL WALL AND CEILING STEEL SPEAKER | 5" fullrange transducer.
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
100 Hz - 20000 Hz |
| Max SPL @ 1m |
100 dB |
| Max SPL @ 4m |
88 dB |
| Coverage angle |
180° |
| System Sensitivity |
94 dB |
| System Sensitivity 1W @ 4m |
82 dB |
| Power section |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Fullrange |
1 x 5.0'' |
| Input/Output section |

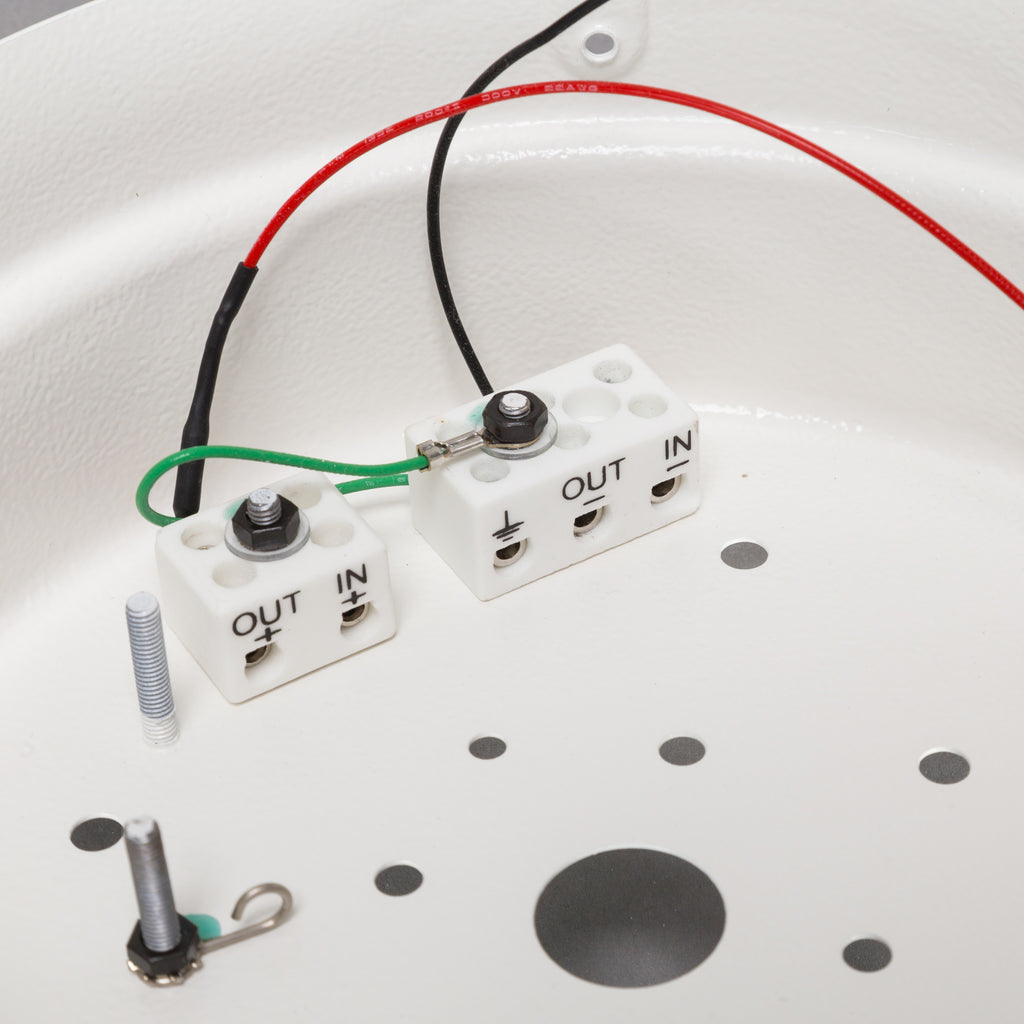

| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 6 W - 1667 ohm |
Power selection 2 |
| 3 W - 3333 ohm |
Power selection 3 |
| 1.5 W - 6667 ohm |
Power selection 4 |
| 0.75 W - 13333 ohm |
| Standard compliance |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0488/W |
| Physical specifications |
| Cabinet/Case Material |
Metal |
| Grille |
Steel |
| Color |
White - RAL 9016 |
| Size / Weight |
| Depth |
75 mm / 2.95 inches |
| Diameter |
195 mm / 7.68 inches |
| Weight |
1.61 kg / 3.55 lbs |
| Shipping information |
| Package Height |
120 mm / 4.72 inches |
| Package Width |
230 mm / 9.06 inches |
| Package Depth |
Package Weight |
| 1.84 kg / 4.06 lbs |
