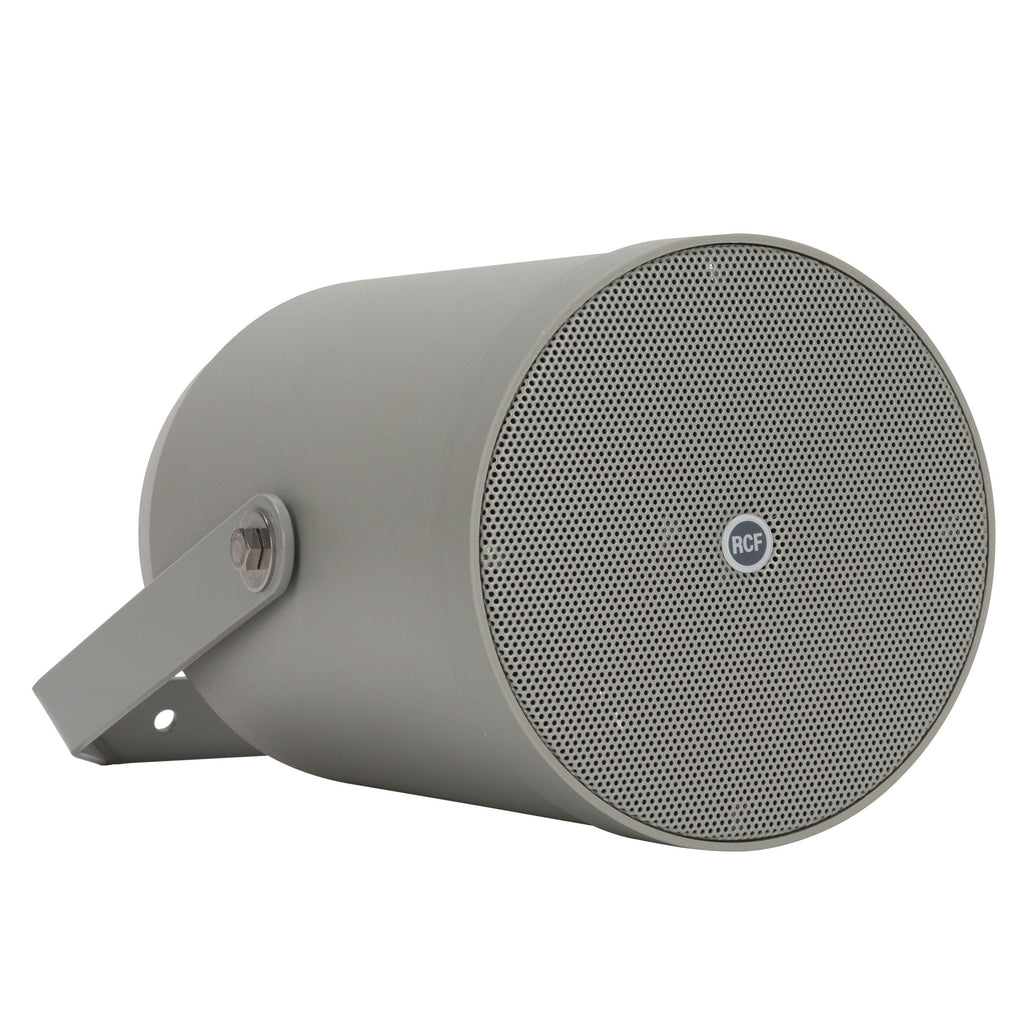

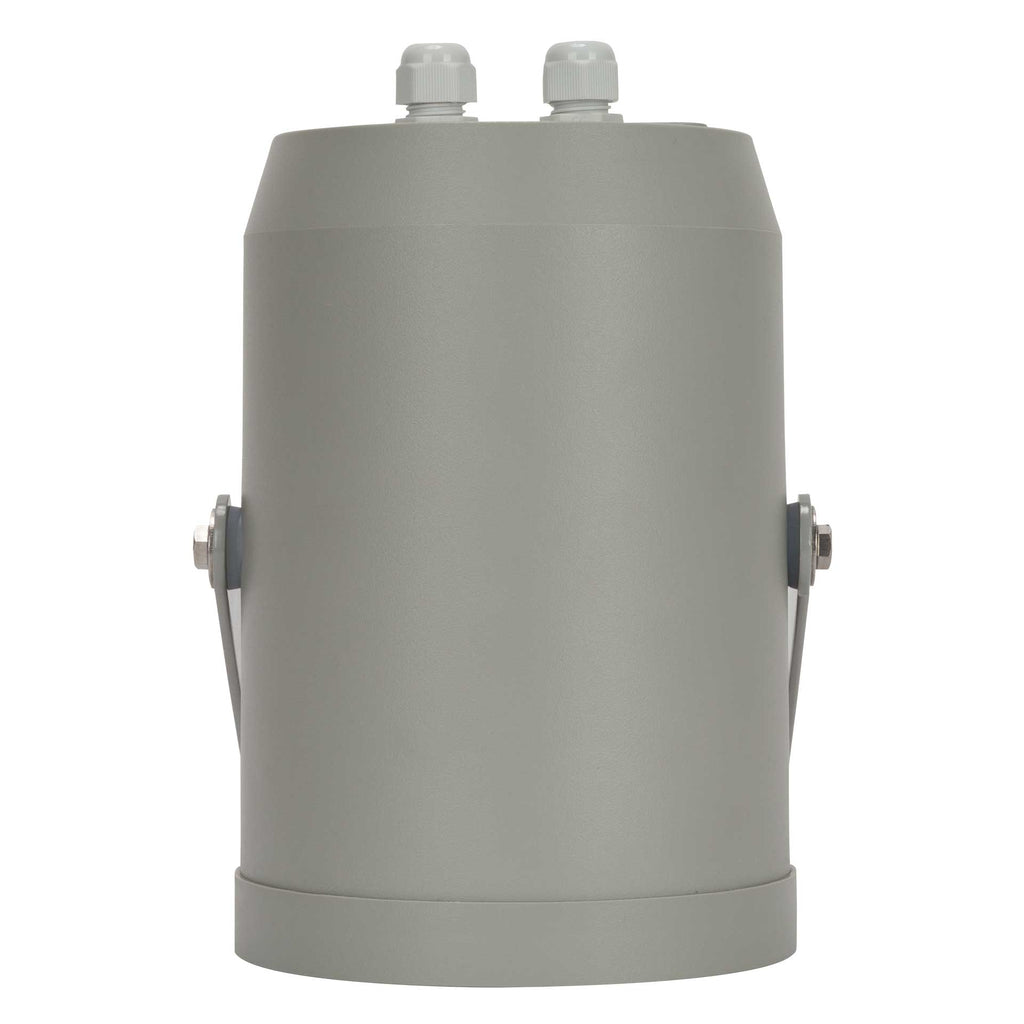

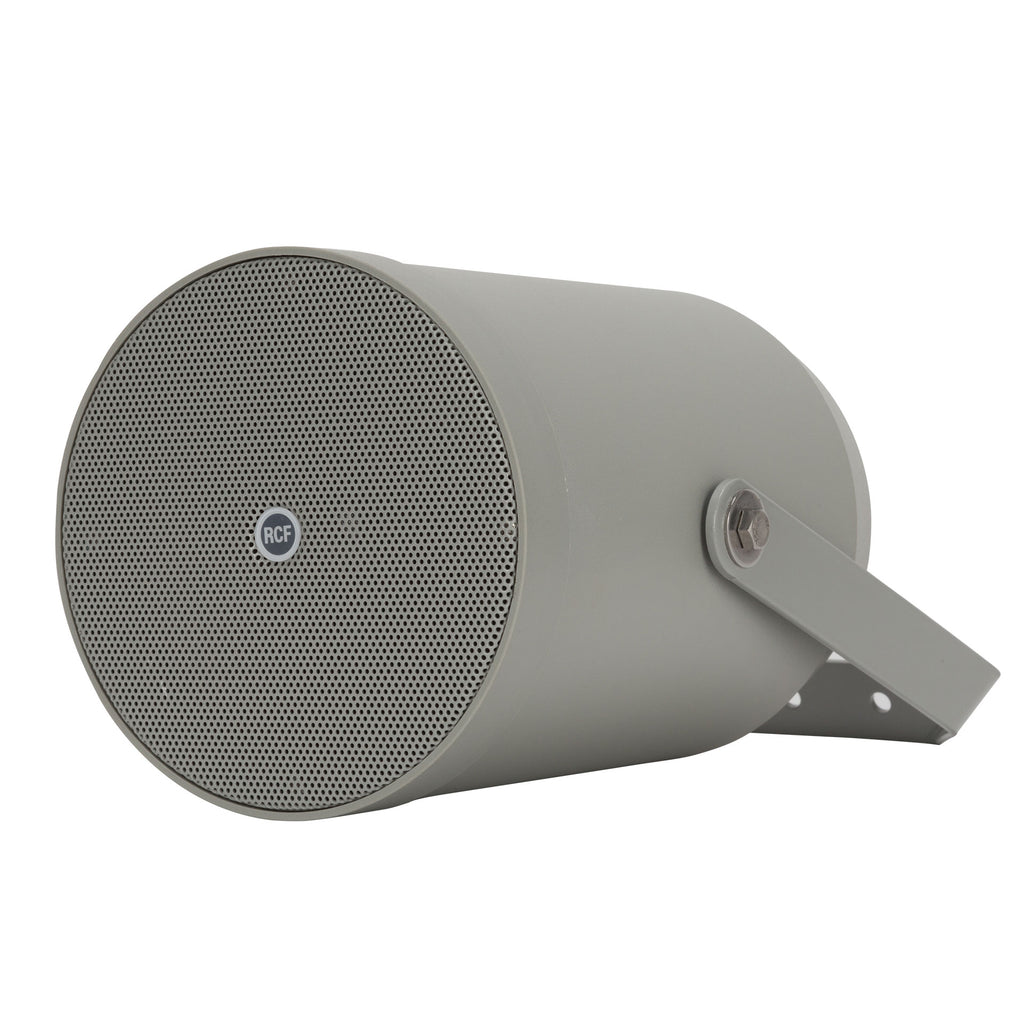

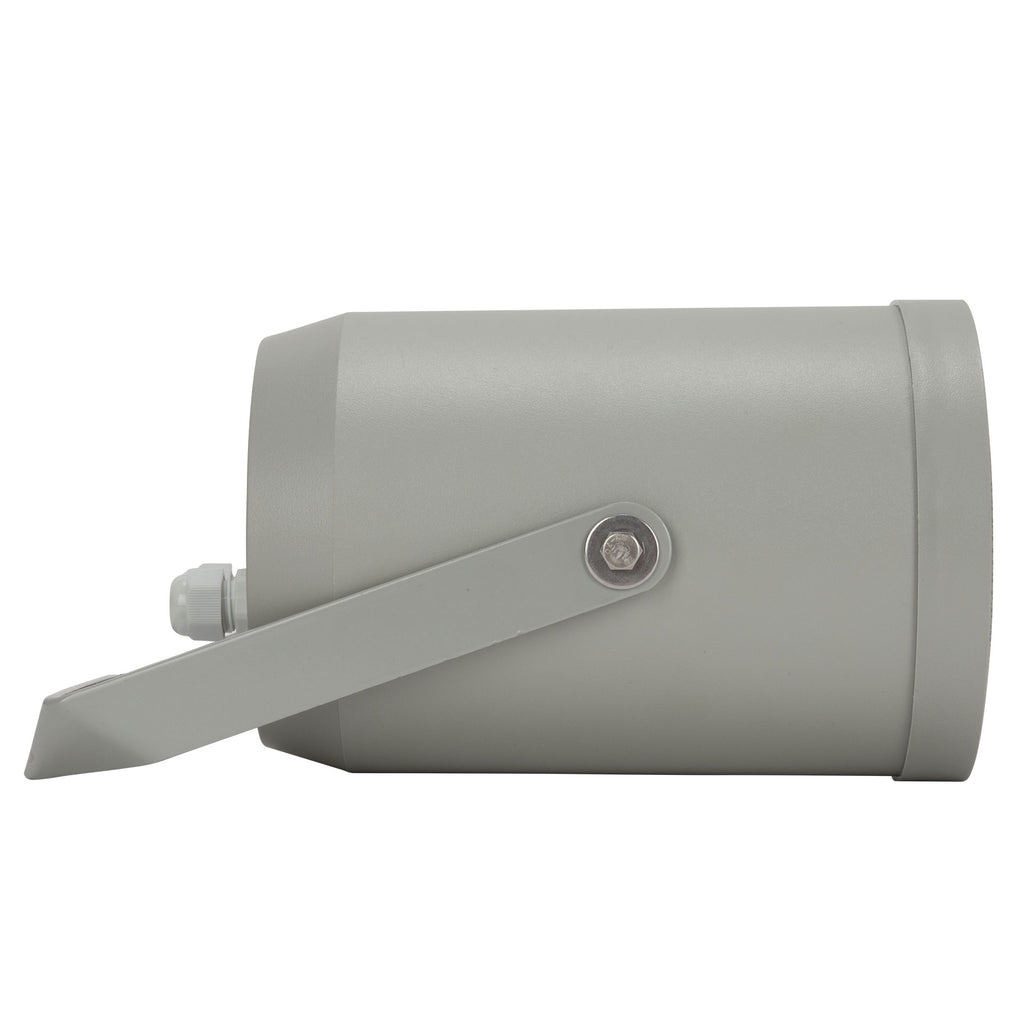

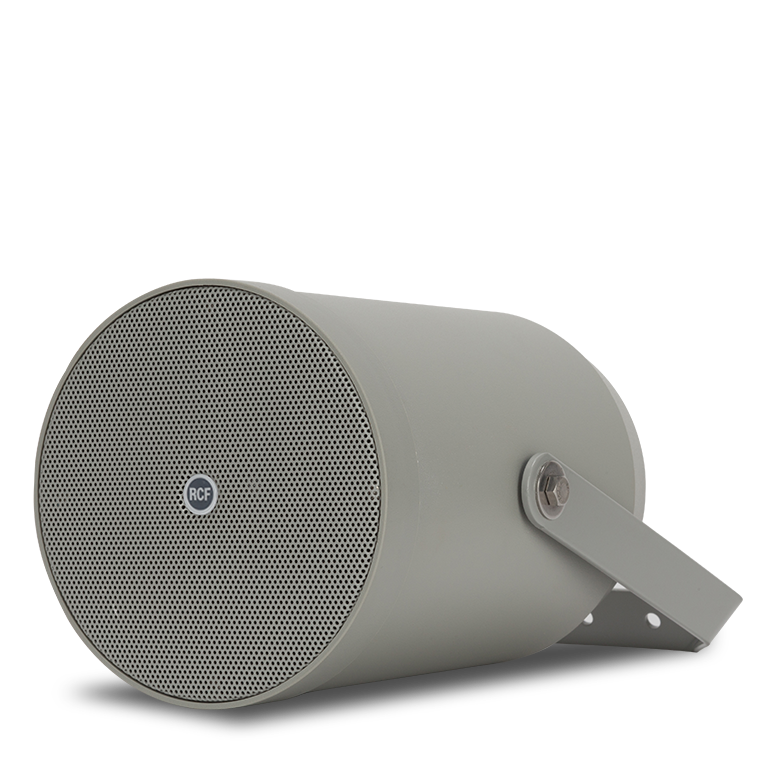

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | DP 4EN | UNIDIRECTIONAL SOUND PROJECTOR | 4" fullrange transducer.
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
180 Hz - 16000 Hz |
| Max SPL @ 1m |
101 dB |
| Max SPL @ 4m |
89 dB |
| Coverage angle |
180° |
| System Sensitivity |
91 dB |
| System Sensitivity 1W @ 4m |
79 dB |
| Power section |
| Power Handling |
10 W |
| Peak Power Handling |
40 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Fullrange |
1 x 4.0'' |

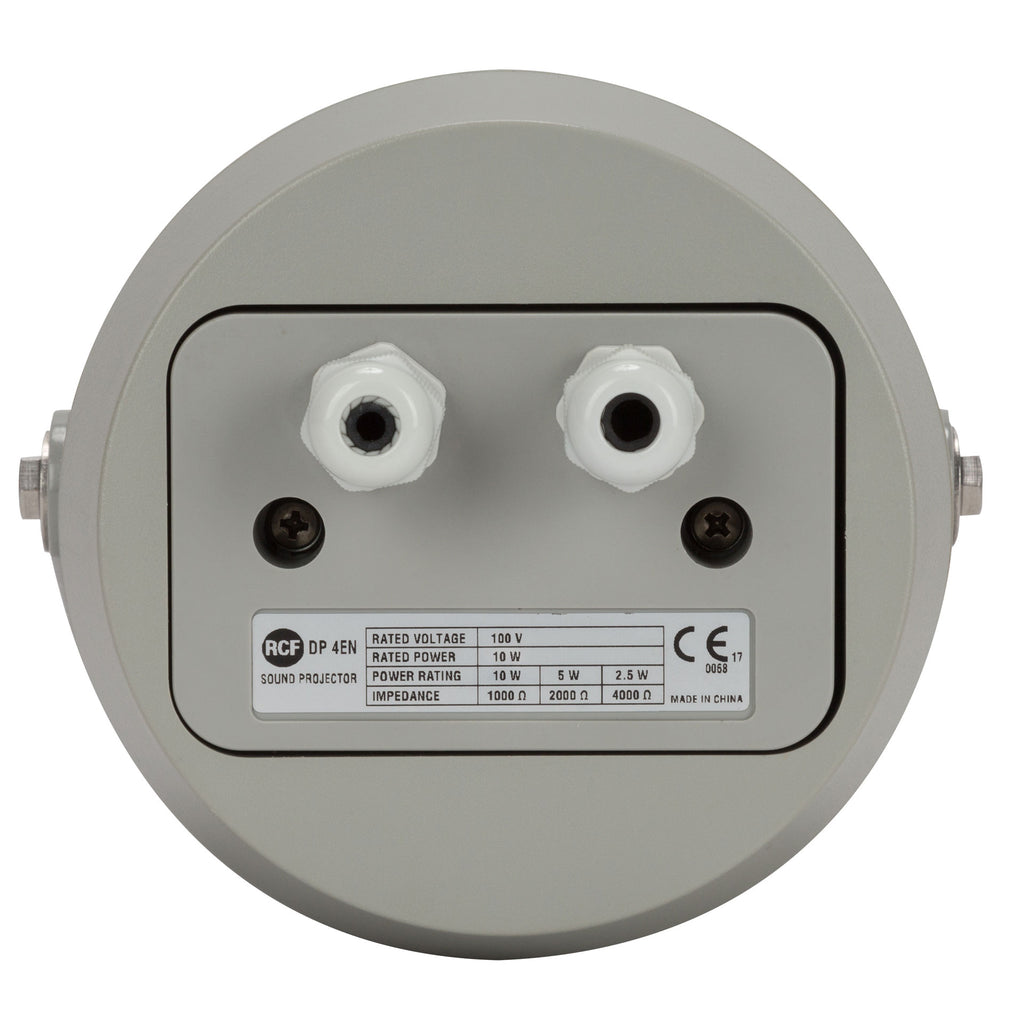

| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 10 W - 1000 ohm |
Power selection 2 |
| 5 W - 2000 ohm |
Power selection 3 |
| 2.5 W - 4000 ohm |
| Standard compliance |
| IP protection grade |
IP 55 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
0068-CPR-085/2017 |
| Physical specifications |
| Cabinet/Case Material |
ABS |

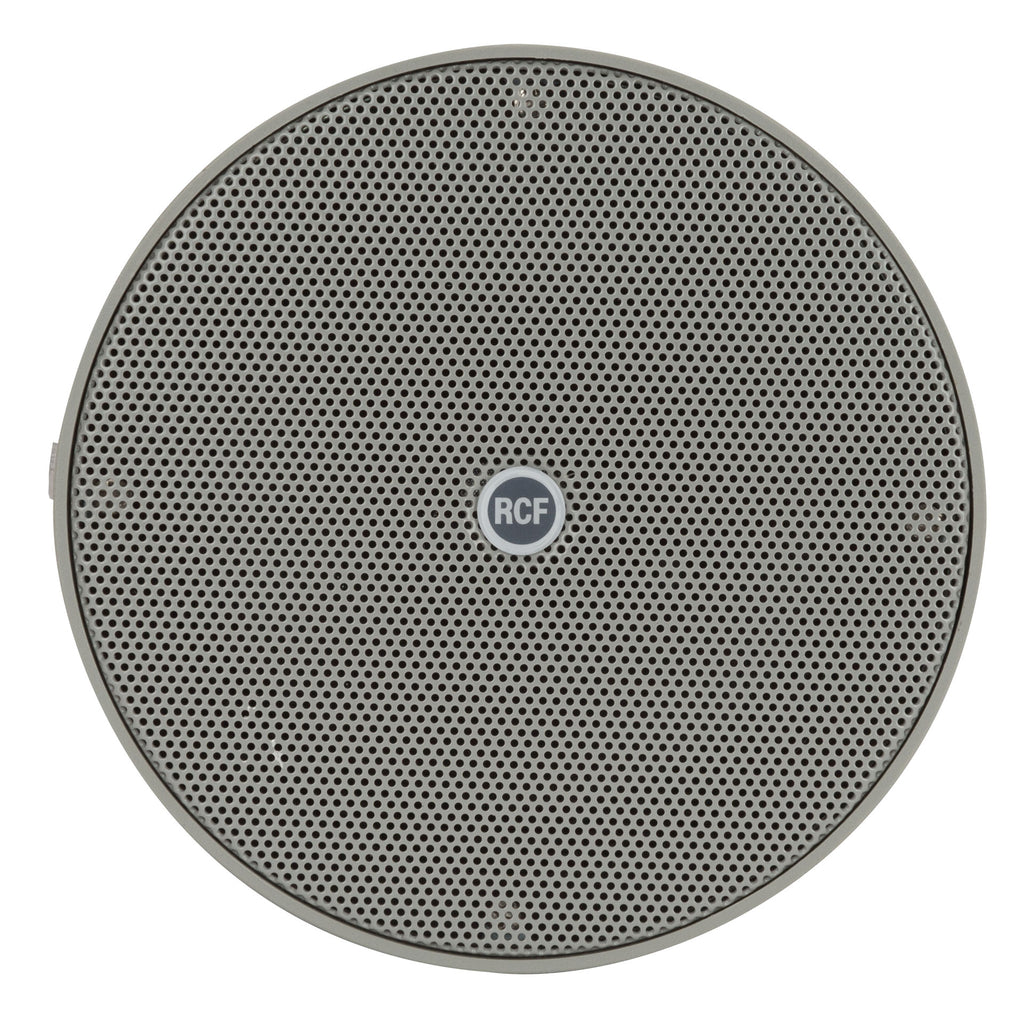

| Grille |
Aluminium |
| Color |
Grey - RAL 7035 |
| Size / Weight |
| Depth |
200 mm / 7.87 inches |
| Diameter |
137 mm / 5.39 inches |
| Weight |
1.7 kg / 3.75 lbs |
| Shipping information |
| Package Height |
290 mm / 11.42 inches |
| Package Width |
190 mm / 7.48 inches |
| Package Depth |
160 mm / 6.3 inches |
| Package Weight |
2.1 kg / 4.63 lbs |
