Elation DMX10-53

Save $99.00
Elation LightingSKU: DMX153

Price:
Sale price$396.00 Regular price$495.00

Description

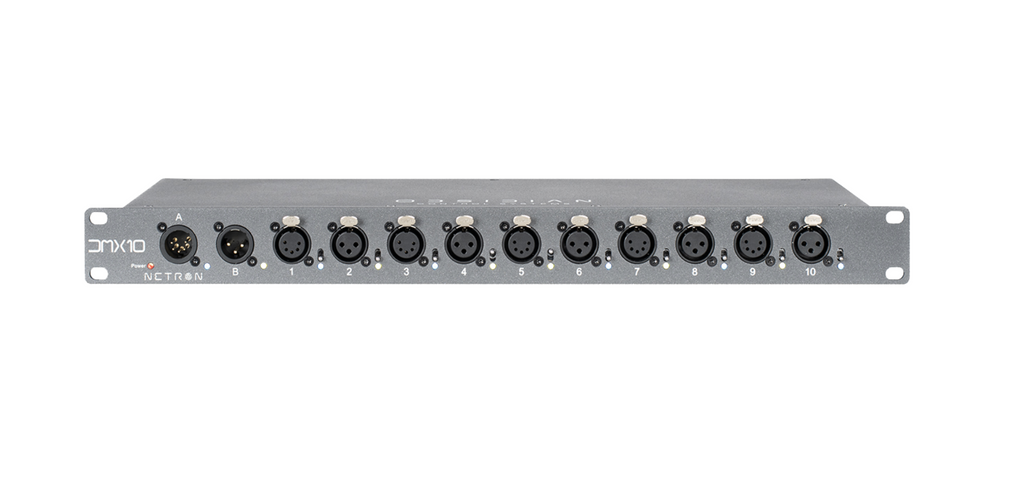

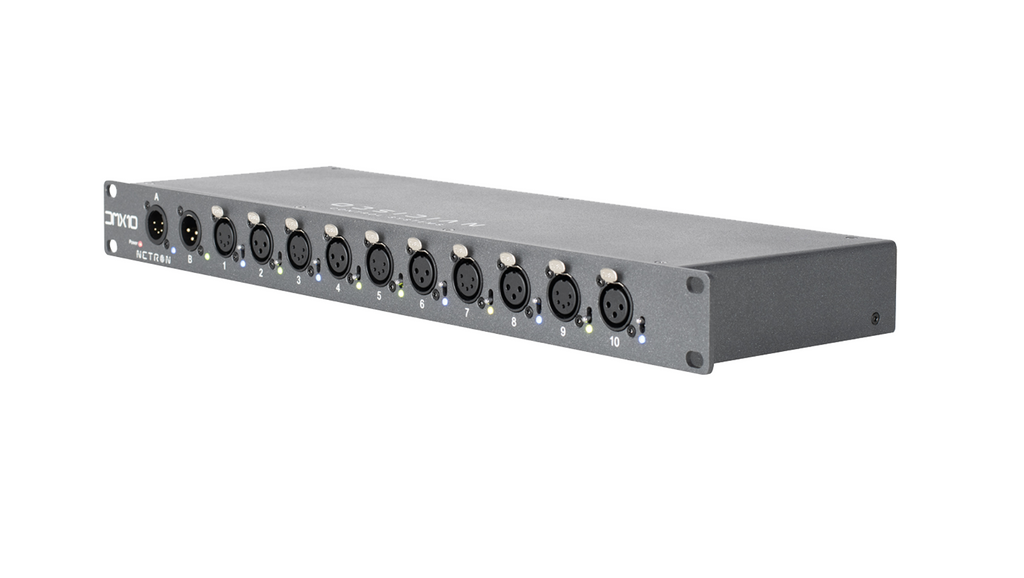

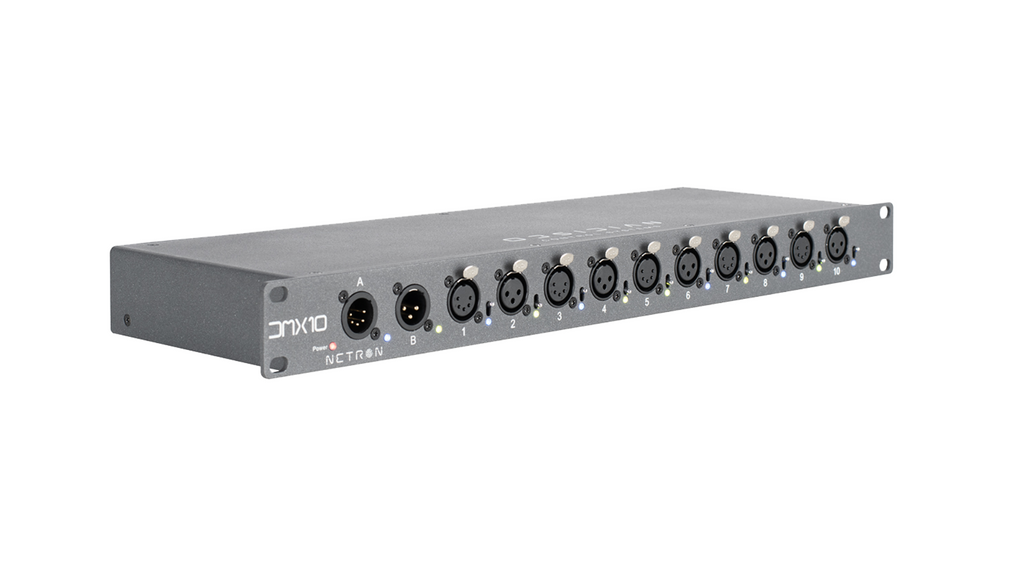

The DMX10-53 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5 and 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin, 5/3pin combo XLR configurations.

Features:

  • 5pin (A) and 3pin (B) XLR DMX Input
  • 10 isolated 5 and 3pin XLR DMX Outputs
  • A/B routing per output port
  • LED feedback for In/Out/A/B/Power
  • Industrial strength powder-coated finish
  • Lightweight and rugged rackmount housing


Specifications:
Mounting
Rackmount

Connections
Front
5pin DMX Input (A)
3pin DMX Input (B)
(5) 5pin Opto-Isolated DMX Outputs
(5) 3pin Opto-Isolated DMX Outputs

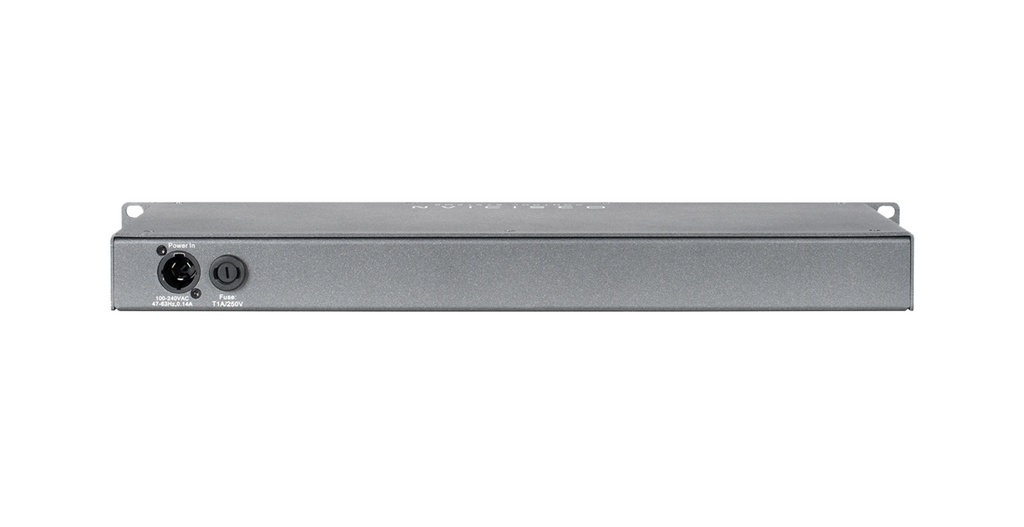

Back
Locking Power In

Physical
Length: 482.0 mm (19 in.)
Width: 155.9 mm (6.1 in.)
Height: 44 mm (1.7 in.)
Weight: 1.50kg ( 3.31 lbs)

Electrical
100-240 V nominal, 50/60 Hz

Approvals / Ratings
cETLus / CE / UKCA / IP20

Included Items
1.5m Locking power cable (EU or US version)
