Description

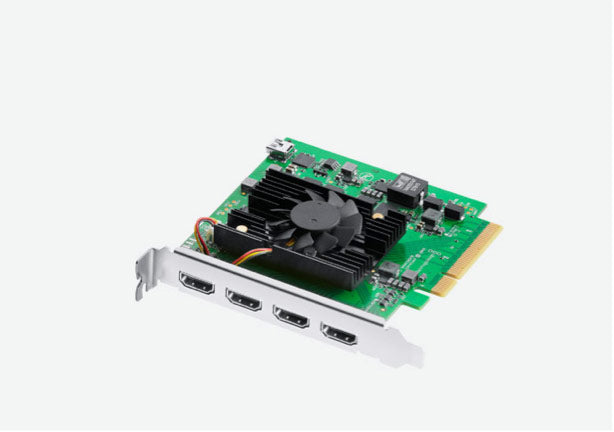

PCIe capture card with 4 HDMI inputs for capturing up to 4 different SD, HD, Ultra HD and 4K formats at the same time!
The world's highest performance capture cards for Mac, Windows and Linux
DeckLink capture and playback cards are used every day on Hollywood feature films, episodic television programs, music videos, commercials and more! Featuring the latest cutting edge technologies such as 12G-SDI and 8K support, DeckLink cards give you the highest quality video and work with more applications and platforms than any other card. Every DeckLink PCI Express card can be installed in Mac, Windows and Linux based workstations and servers, giving you ultimate flexibility!
Introducing DeckLink 8K Pro G2 12G-SDI and HDMI 2.1 capture and playback PCIe card for all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI formats! DeckLink 8K Pro G2
DeckLink 8K Pro G2 is the ultimate 8K digital cinema capture and playback card. Featuring Quad Link 12G-SDI and HDMI 2.1 connections, DeckLink 8K Pro G2 can work in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI formats. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 color, making it perfect for next generation high resolution, high frame rate and high dynamic range workflows!
Works with all file formats up to 8K DC
Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve. Depending on the model you choose, DeckLink cards support the complete range of formats used in today's high end film, television and commercial post production. You get 12-bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D and more! There are DeckLink models to support either file or tape based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even digital cinema projectors.
Specifications
Connections
- HDMI 2.0b Video Inputs: 4
- HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K.
- Computer Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Software
- Software Included: Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
- Physical Installation: PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Video Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
- Digital Video Interface (DVI) Standards: 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- HDMI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8-bit RGB 4:4:4 in all DVI modes.
- Color Space: REC 601, REC 709, REC 2020
- HDMI Video Sampling: 4:4:4, 4:2:2 and 4:2:0
- HDMI Configuration: HDMI 2.0b supports Deep Color and HDR.
- Multiple Rate Support: HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes.
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Power Requirements
- Power Consumption: 23 W
Environmental Specifications
- Operating Temperature: 5° to 40° C (41° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
Physical
- Weight: 0.44 lb
