Description

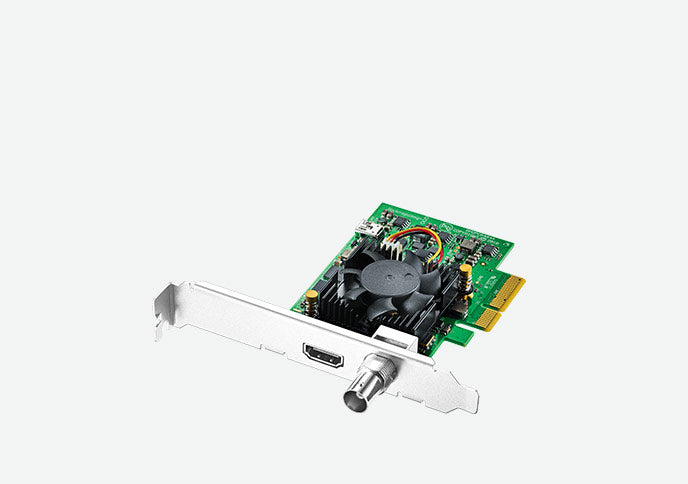

Low profile PCIe playback card featuring 6G-SDI and HDMI 2.0a for all formats up to 2160p30, including HDR!
The world's highest performance capture cards for Mac, Windows and Linux
DeckLink capture and playback cards are used every day on Hollywood feature films, episodic television programs, music videos, commercials and more! Featuring the latest cutting edge technologies such as 12G-SDI and 8K support, DeckLink cards give you the highest quality video and work with more applications and platforms than any other card. Every DeckLink PCI Express card can be installed in Mac, Windows and Linux based workstations and servers, giving you ultimate flexibility!
Introducing DeckLink 8K Pro G2 12G-SDI and HDMI 2.1 capture and playback PCIe card for all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI formats! DeckLink 8K Pro G2
DeckLink 8K Pro G2 is the ultimate 8K digital cinema capture and playback card. Featuring Quad Link 12G-SDI and HDMI 2.1 connections, DeckLink 8K Pro G2 can work in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI formats. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 color, making it perfect for next generation high resolution, high frame rate and high dynamic range workflows!
Works with all file formats up to 8K DC
Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve. Depending on the model you choose, DeckLink cards support the complete range of formats used in today's high end film, television and commercial post production. You get 12-bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D and more! There are DeckLink models to support either file or tape based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even digital cinema projectors.
Specifications
Connections
- SDI Video Outputs: 1 x 10 bit SD/HD/Ultra HD switchable.
- SDI Audio Outputs: 16 channels embedded in SD, HD, Ultra HD.
- HDMI Video Outputs: 1 x HDMI 2.0a connector.
- HDMI Audio Outputs: 8 Channels embedded in SD, HD, Ultra HD.
- Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software
- Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
- Physical Installation: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
- 2K Video Standards (SDI Only): 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.
- SDI Video Sampling: 4:4:4 & 4:2:2
- Color Space: REC 601, REC 709, REC 2020.
- SDI HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.
- HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0
- HDMI Configuration: HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
- HDMI Resolution: Pixel for pixel HD resolution output to connected device.
- HDMI Color Precision: Up to 12-bit (Deep Color)
- HDMI HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.
- Multiple Rate Support: HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
Processing
- HD to SD Down Conversion: Software based down conversion during video playback.
- HD Cross Conversion: Software based cross conversion from 720p to 1080HD on playback.
- Colorspace Conversion: Hardware based real time.
- Real Time Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power Requirements Power Consumption 10 W Environmental Specifications
- Operating Temperature: 5° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
Physical
- Weight: 0.36 lb
