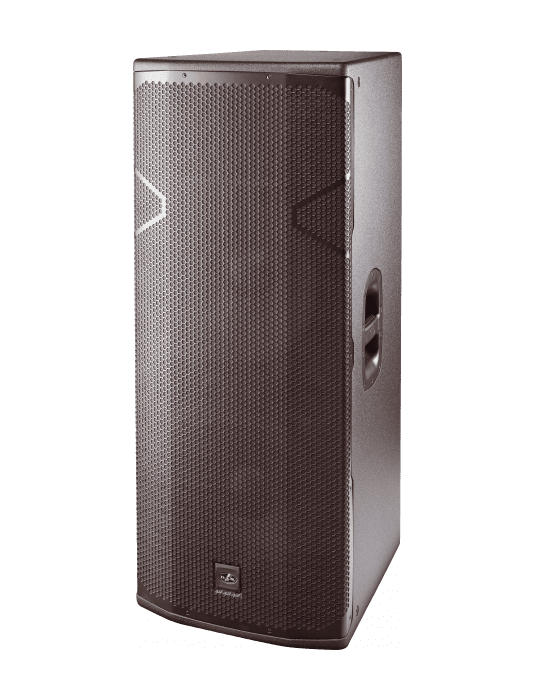

DAS AUDIO VANTEC-215A
Roll over image to zoom in Click on image to zoom
DAS AUDIO VANTEC-215A

DAS AUDIO VANTEC-215A

Save $774.49
DAS AUDIOSKU: VANTEC-215A
Price:
$1,949.00 $2,723.49

Description



VANTEC-215A

P/N. 10431010

Features

Twin 15? powered 3-way system
Increased ouput capacity
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
High-Definition wireless streaming of music in stereo
Rigging points

Applications

Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship



The VANTEC-215A is equipped with twin 15FV4 woofers for applications requiring higher SPL overall and a more powerful bass response, such as mobile DJ´s, live performances or any type of Event-that needs the added punch.
The three channel amplifier offers 2250 Wpeak and operates in a “dual-band” configuration where each loudspeaker operates in a specific frequency range. The impressively small size and light weight of the electronics package makes the VANTEC Series amps one of the worlds lightest.
Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered VANTEC systems. User configurable voicing, filters, EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec-series allows users to wirelessly stream music from mobiles devices.

Performance
Frequency Range (-10 dB) 40 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 50º
Maximum Peak SPL at 1 m 138 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 1125 W
Nominal Amplifier Power (peak) 2250 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 3 V (+12 dBu)
Audio Signal Input Connector 2 x Female XLR
AUX Input 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector 1 x Male XLR
Current Draw 230 V / 115 V 1.5 A/3.0 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 1.090 x 445 x 505 mm
42,9 x 17,5 x 19,9 in
Net Weight 43,5 kg ( 95,9 lb )
Components
LF Driver 15FV4
HF Driver M-28
Horn/Waveguide BC-95
Shipping
Carton Dimensions ( H x W x D ) 1.195 x 536 x 581 mm
47,1 x 21,1 x 22,9 in
Shipping Weight 47,5 kg ( 104,7 lb )
