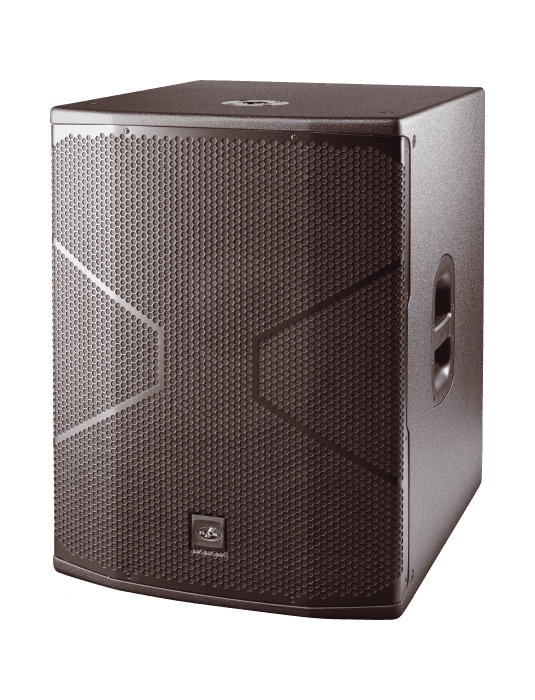

DAS AUDIO VANTEC-18A

Save $736.21
DAS AUDIOSKU: VANTEC-18A

Price:
Sale price$1,849.00 Regular price$2,585.21

Description



VANTEC-18A

P/N. 10431100

Features

Powered subwoofer system
High output 18LX loudspeaker
Polarity switch (0º180º)
Filtered output defeat switch
Variable 80-125 Hz lowpass filter
Gain control
Rigging points

Applications

Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship




The VANTEC-18A is a powered subwoofer system designed to provide extended bass response for the Vantec-full range cabinets. A 2000 Wpeak advanced Class D amplifier drives a DAS 18LX-long excursion loudspeaker incorporates a 4? voice coil for high power handling and output.

The VANTEC-18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec-satellite systems. The variable crossover ranges from 80 Hz 125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the VANTEC-18A to be used with satellite systems.


Performance
Frequency Range (-10 dB) Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz
Maximum Peak SPL at 1 m 134 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 1000 W
Nominal Amplifier Power (peak) 2000 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 3 V (+12 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 2 x Male XLR
AC Output Connector powerCON NAC3FCB
Current Draw 230 V / 115 V 1.5 A/3.0 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 720 x 545 x 655 mm
28,3 x 21,5 x 25,8 in
Net Weight 40,5 kg ( 89,2 lb )
Components
LF Driver 18LX
Shipping
Carton Dimensions ( H x W x D ) 820 x 616 x 726 mm
32,3 x 24,3 x 28,6 in
Shipping Weight 44,0 kg ( 97,0 lb )
