DAS AUDIO VANTEC-15A

Save $593.78
DAS AUDIOSKU: VANTEC-15A

Price:
Sale price$1,489.00 Regular price$2,082.78

Description



VANTEC-15A

P/N. 10431040

Features

Compact multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
High-Definition wireless streaming of music in stereo
Pole mount socket with dual angles 0º/10º
Rigging points

Applications

Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship

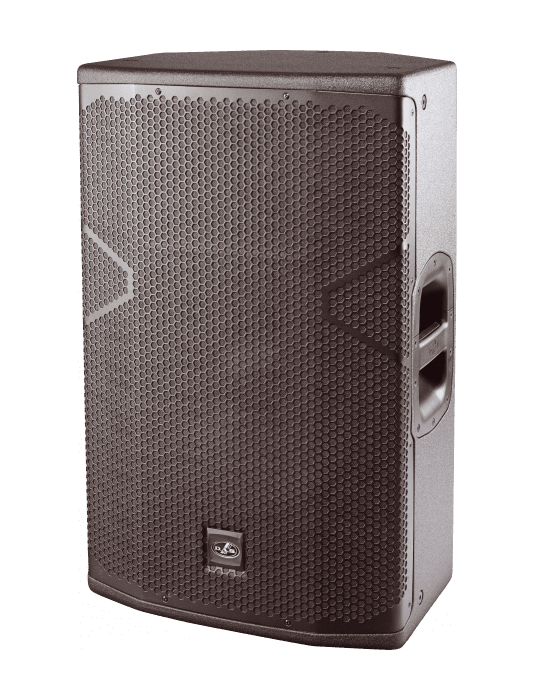

The VANTEC-15A is a powered potable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system.
The 1500 Wpeak power of the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.
Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec-systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec-series allows users to wirelessly stream music from mobiles devices.
The 15FV4 loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-28 FEM optimized compression driver with 1? exit offering excellent performance.

Performance
Frequency Range (-10 dB) 45 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 50º
Maximum Peak SPL at 1 m 135 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 750 W
Nominal Amplifier Power (peak) 1500 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 3 V (+12 dBu)
Audio Signal Input Connector 2 x Female XLR
AUX Input 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector 1 x Male XLR
Control DASlink™
DAScontrol™
Current Draw 230 V / 115 V 1.5 A/3.0 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 720 x 445 x 380 mm
28,3 x 18,0 x 17,5 in
Net Weight 25,5 kg ( 56,2 lb )
Components
LF Driver 15FV4
HF Driver M-28
Horn/Waveguide BC-95
Shipping
Carton Dimensions ( H x W x D ) 815 x 451 x 526 mm
32,1 x 17,8 x 20,7 in
Shipping Weight 27,5 kg ( 60,6 lb )
