DAS AUDIO VANTEC-15
Roll over image to zoom in Click on image to zoom
DAS AUDIO VANTEC-15

DAS AUDIO VANTEC-15

Save $394.48
DAS AUDIOSKU: VANTEC-15
Price:
$949.00 $1,343.48

Description



VANTEC-15

P/N. 10431060

Features

2-way, full range system
15? FV series bass loudspeaker
1” FEM optimized compression driver
Enclosure design allows for stage monitor use
Built-in rigging points
DualAngle (0º/10º) poleMount socket

Applications

Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship

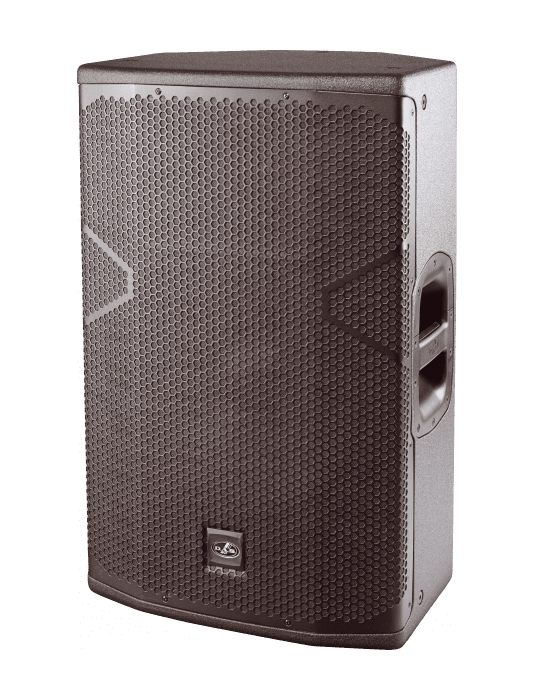

The VANTEC-15 is a 2 way passive full range loudspeaker that utilizes a 15? FV series low frequency transducer and a 1? FEM optimized compression driver.

The multi angle cabinet is constructed of Birch plywood protected by the DAS ISO flex black paint finish. Two bar handles with soft rubber inserts and a rugged steel grille are provided. A 35 mm tripod socket with dual angle (0º/10º) allows for stand mounting.

Performance
Frequency Range (-10 dB) 60 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 50º
Nominal Impedance 8 ohms
RMS Power Handling 500
Peak Power Handling 2000
On-axis Sensitivity 1W/1 m 99 dB SPL
Maximum Peak SPL at 1 m 135 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226
Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 380 mm (17,5 in)
Dimensions ( H x W x D ) 720 x 445 x 380 mm
28,3 x 18,0 x 17,5 in
Net Weight 23,5 kg ( 51,8 lb )
Components
LF Driver M-28
HF Driver 15FV
Horn/Waveguide BC-95
Shipping
Carton Dimensions ( H x W x D ) 815 x 451 x 526 mm
32,1 x 17,8 x 20,7 in
Shipping Weight 26,0 kg ( 57,3 lb )
