DAS AUDIO ALTEA-408A

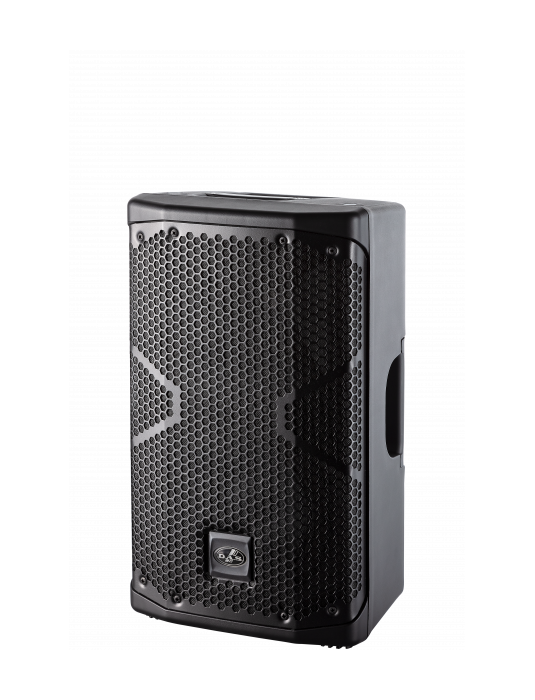

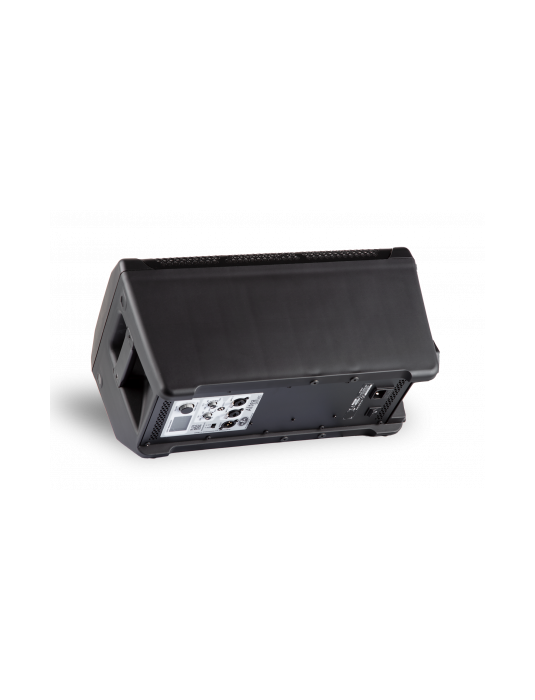

The ALTEA-408A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

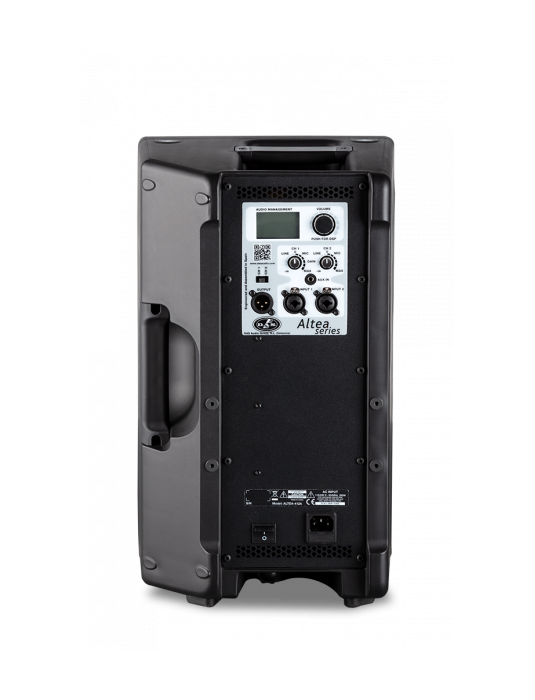

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.

The 8GV loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance.

• Lightweight multi-purpose system with monitor position
• Ultra lightweight Class D amplifier with SMPS
• User definable 24-bit DSP with LCD screen
• Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
• Stackable 3-band EQ
• Standby Mode
• Rigging points

• Live sound reinforcement
• Speech and vocals
• Music playback in entertainment
• A/V, and institutional venues

• Frequency Range (-10 dB): 70 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 90º
• Vertical Coverage: 90º
• Maximum Peak SPL at 1 m: 123 dB
• Electronics and Connectors
• Nominal Amplifier Power (continuous): 400 W
• Nominal Amplifier Power (peak): 800 W
• Input Type: Balanced
• Input Impeadance: 20 kohms
• Input Sensitivity: 1.95 V (+8 dBu)
• Audio Signal Input Connector: 2 x Female XLR
• AUX Input: 1 x 3.5 mm Mini Jack
• Audio Signal Loop Thru Connector: 1 x Male XLR
• Control: DAScontrol™
• Current Draw 230 V / 115 V: 0.8 A/1.6 A

• Enclosure Construction: Polypropylene
• Enclosure Geometry: Trapezoidal
• Rigging: M8 Rigging Points
• Finish: Textured
• Color: Black
• Dimensions ( H x W x D ):
• 480 x 280 x 260 mm
• 18,9 x 11,0 x 10,2 in
• Net Weight: 9,5 kg ( 21,0 lb )

• LF Driver: 8GV
• HF Driver: M-32

• Shipping Weight: 13,0 kg ( 28,6 lb )
