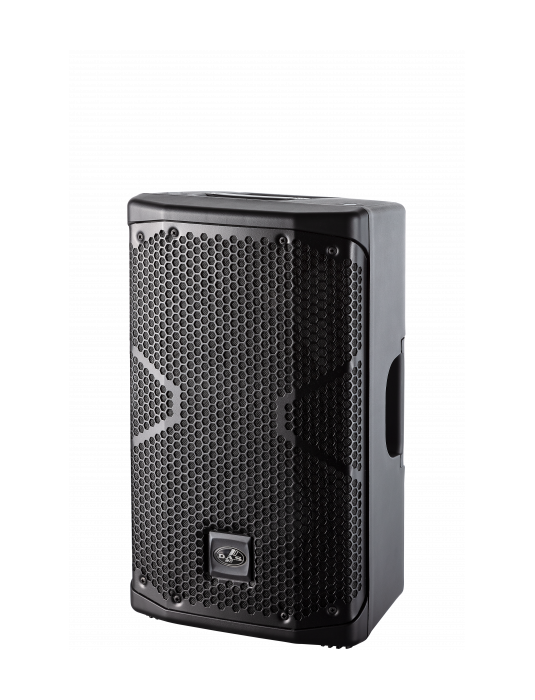

DAS AUDIO ALTEA-408

ALTEA-408 is a passive system, designed for use with external DSP and amplification. These allow users to choose their preferred amplification option and benefit from the same features and components as the self-powered version.

ALTEA-408 uses an 8GV transducer that offers very accurate bass reproduction with excellent musicality. The high frequencies are managed by the M-32 compression driver, with a 1″ exit that provides exceptional performance. This winning combination of components offers ideal characteristics for music reproduction.

• 2-way, full range system
• 8″ bass loudspeaker
• 1″ compression driver
• Angled enclosure design for stage monitor use
• Built-in rigging points
• Stand mountable

• Concerts and corporate A/V
• Portable and live clubs
• Concert halls, theaters and auditoriums
• Houses of worship

• Frequency Range (-10 dB): 70 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 90º
• Vertical Coverage: 90º
• RMS Power Handling: 150 W
• Peak Power Handling: 600 W
• On-axis Sensitivity 1W/1 m: 94 dB SPL
• Maximum Peak SPL at 1 m: 122 dB
• Recommended Amplifier:
• INTEGRAL-A402
• INTEGRAL-A1002
• INTEGRAL-A1004
• Recommended Processor: DSP-226
• Connectors
• Audio Input Connector: 1 x speakON NL4
• Audio Output Connector: 1 x speakON NL4

• Enclosure Construction: Polypropylene
• Enclosure Geometry: Trapezoidal
• Rigging: M8 Rigging Points
• Color: Black
• Depth: 260 mm (10,2 in)
• Dimensions ( H x W x D ):
• 480 x 280 x 260 mm
• 18,9 x 11,0 x 10,2 in
• Net Weight: 8,5 kg ( 18,7 lb )

• LF Driver: 8GV
• HF Driver: M-32

• Shipping Weight: 12,0 kg ( 26,5 lb )
