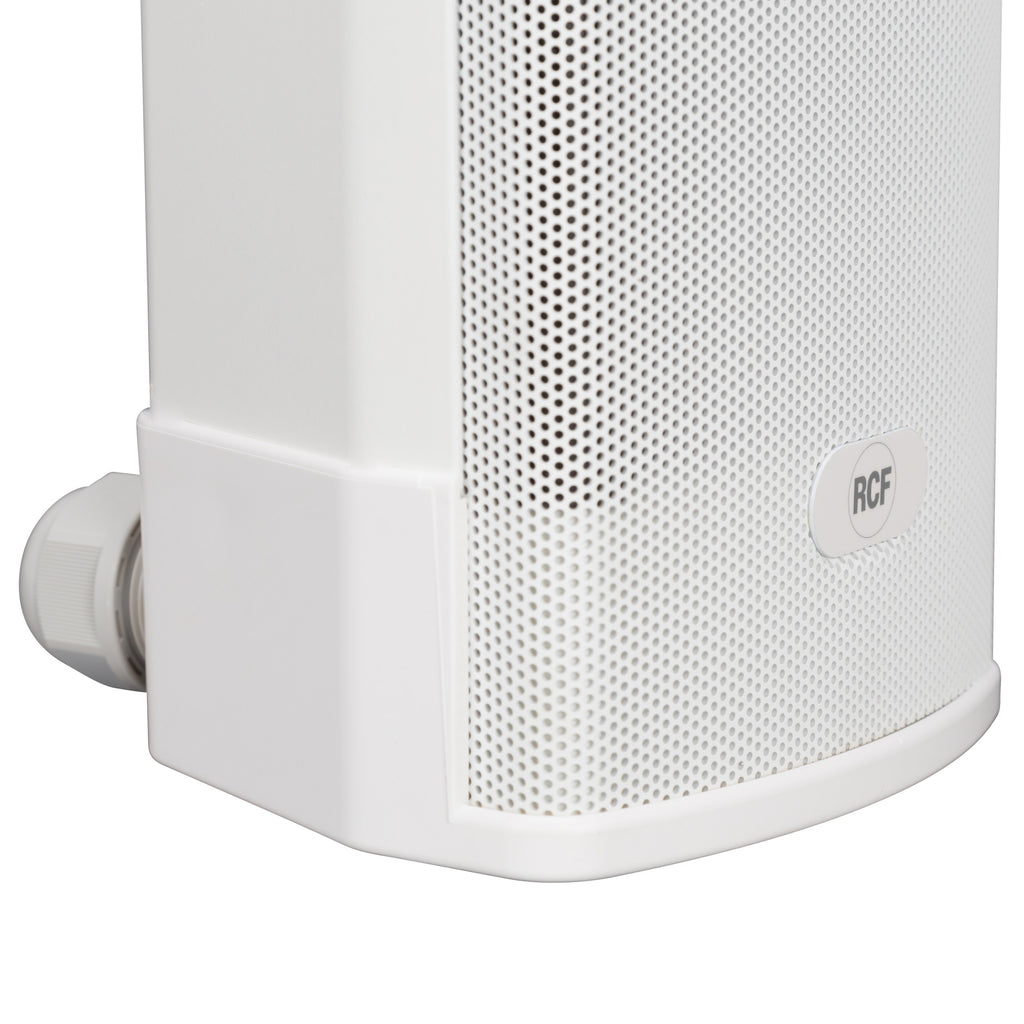

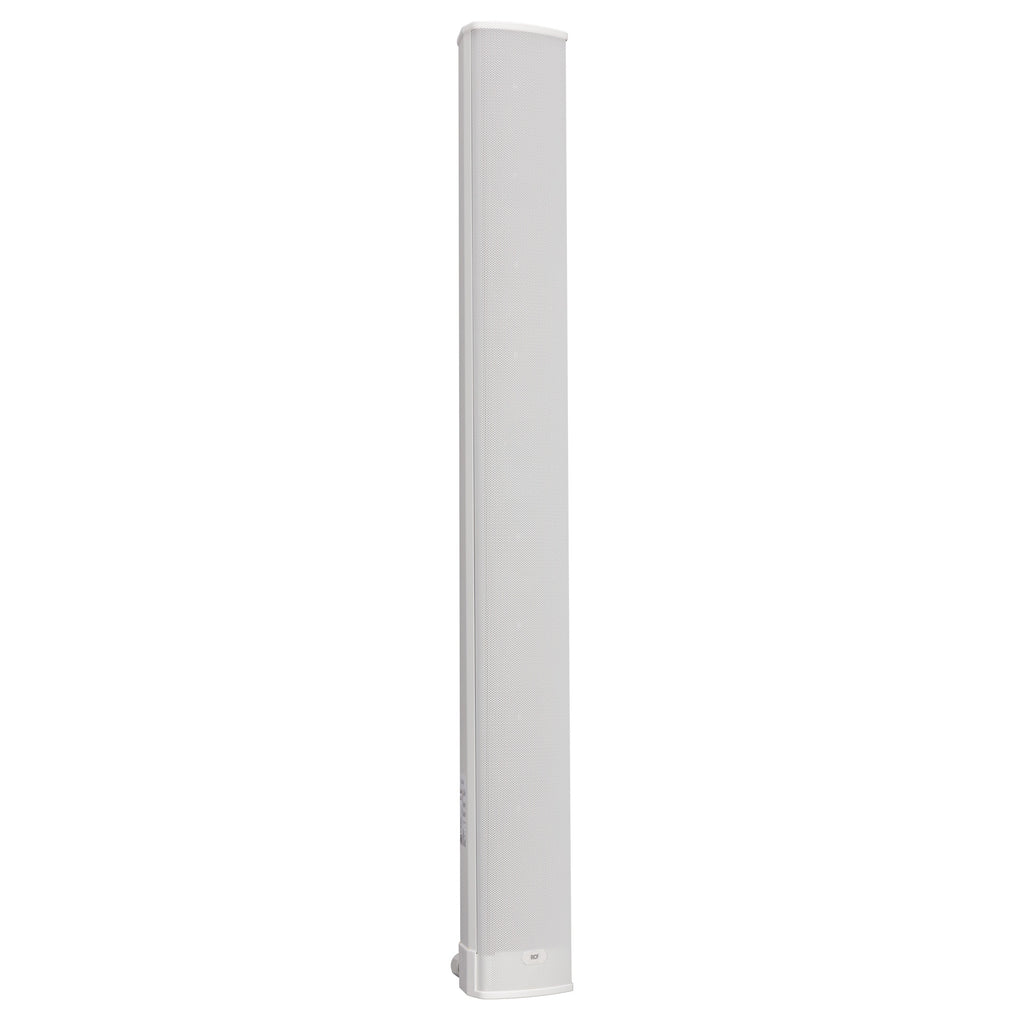

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | CS 6940EN | TWO-WAY COLUMN SPEAKER | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
140 Hz - 20000 Hz |
| Max SPL @ 1m |
109 dB |
| Max SPL @ 4m |
97 dB |
| Horizontal coverage angle |
194° |
| Vertical coverage angle |
30° |
| System Sensitivity |
95 dB |
| System Sensitivity 1W @ 4m |
83 dB |
| Power section |
| Amplification |
Full Range |
| Power Handling |
40 W |
| Peak Power Handling |
160 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Dome Tweeter |
1 x 0.75'' |
| Fullrange |
8 x 3.0'' |
| Input/Output section |

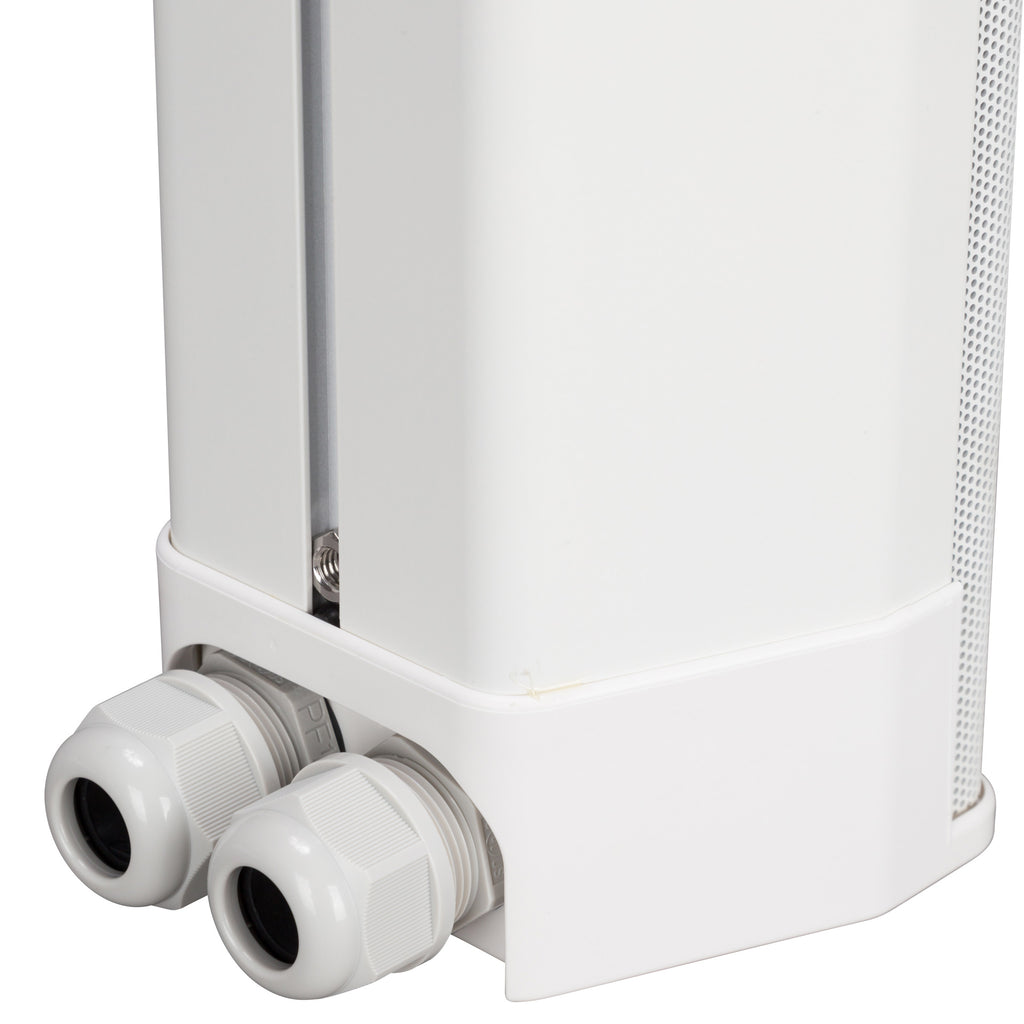

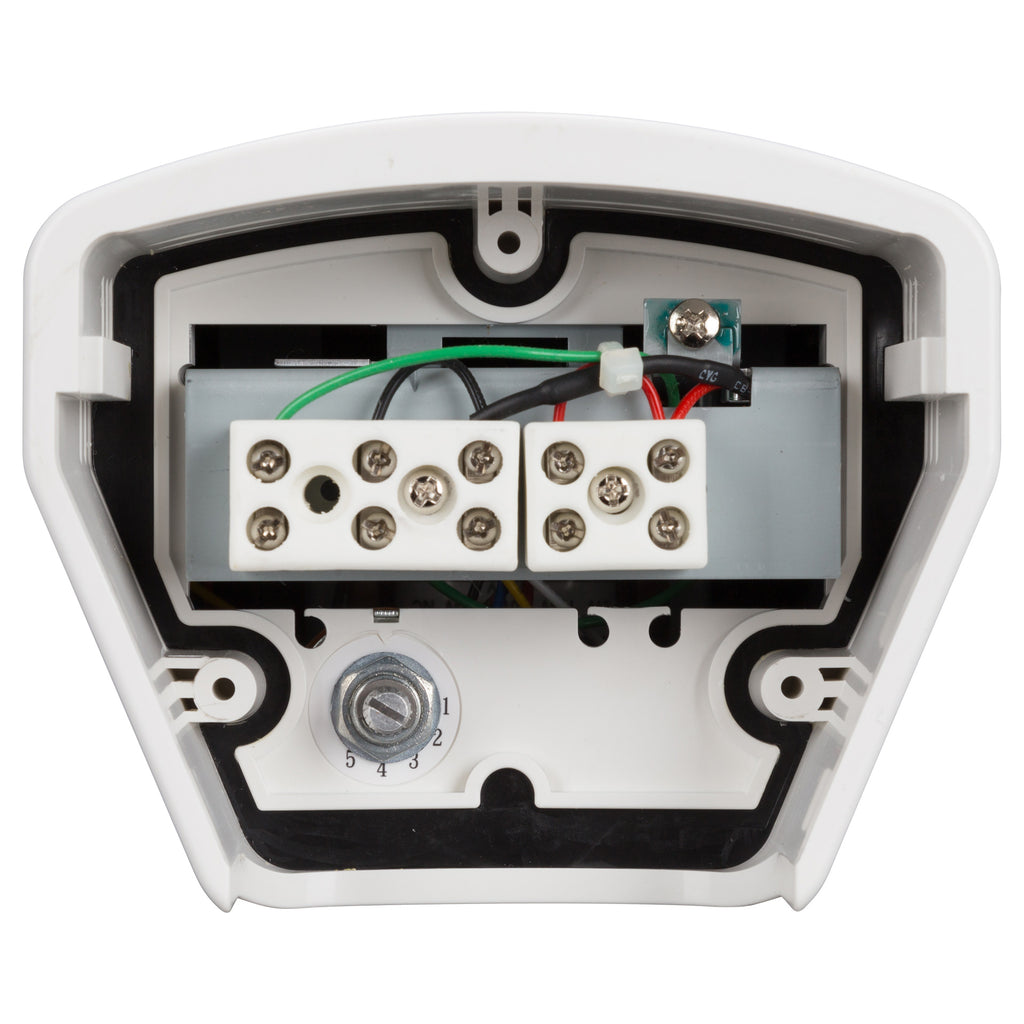

| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 70/100 V |
Power selection 1 |
| 40 W - 250 ohm |
Power selection 2 |
| 20 W - 500 ohm |
Power selection 3 |
| 10 W - 1000 ohm |
Power selection 4 |
| 5 W - 2000 ohm |
Power selection 5 |
| 2.5 W - 4000 ohm |
| Standard compliance |
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0490/W |
| Physical specifications |
| Cabinet/Case Material |
Aluminum |
| Grille |
Aluminium |
| Color |
White - RAL 9003 |
| Size / Weight |
| Height |
995 mm / 39.17 inches |
| Width |
114 mm / 4.49 inches |
| Depth |
96 mm / 3.78 inches |
| Weight |
7 kg / 15.43 lbs |
| Shipping information |
| Package Height |
200 mm / 7.87 inches |
| Package Width |
1090 mm / 42.91 inches |
| Package Depth |
170 mm / 6.69 inches |
| Package Weight |
8.4 kg / 18.52 lbs |
