Description

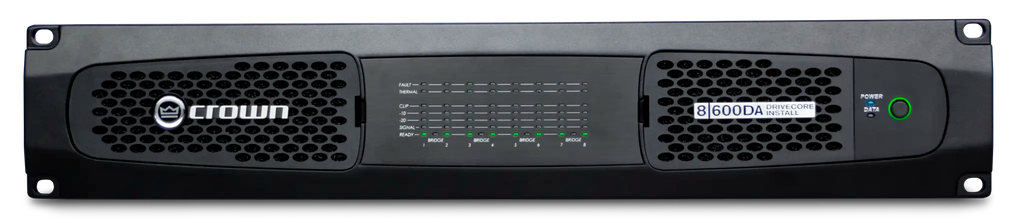

For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp’s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport. This amplifier is EN 54-16 Compliant for life safety applications.
- Redundant, independent Dante / AES67 ports • Primary & Secondary • Will accept 48khz or 96khz • Capable of sending out Dante / AES67 audio from analog inputs pre/post processing (@ 48kHz) - Audio Architect Control and Monitoring - DriveCore Amplifier Technology - Universal PFC Power Supply - DSP • 48kHz processing • 20 Presets • Input router - High, medium, and low priority inputs • Input delay up to 2s • Input EQ • Crossover • Output EQ • Output Delay up to 100ms • LevelMAX limiter • Load Monitoring - Pilot tone • Normal • Burst - Continuous Load Monitoring - Sweep Load Monitoring • Channel Auto-Standby • Speaker Tunings - Aux-Port • Sleep contact closure • Amp Status output - Removable air filters - Front panel LED indicators - AES67 Compatible - EN 54-16 Compliant for life safety applications
INTEGRATED DANTE™ / AES67 NETWORKED AUDIO - Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.
Specifications
- Output Channels: 8
- Frequency Response (8Ω, 20Hz - 20kHz): ±0.25dB
- Total Harmonic Distortion (at full rated power, 20Hz - 20kHz): 0.35%
- Damping Factor (20Hz to 100Hz): >1000
- Load Impedance (Stereo/Dual Mode): 2Ω - 16Ω; 70Vrms and 100Vrms
- Load Impedance Bridge Mono: 4Ω - 16Ω; 140Vrms and 200Vrms
- Cooling: Continuously variable speed forced air, front to back airflow
- Maximum Fan Noise (re dBA SPL @ 1M): 47
- Required AC Mains (±10%): 100V-240V ~ 50/60Hz
- Power Connector: 20A IEC
- Dimensions (W x H x D): 483 mm x 89 mm x 432 mm 19 in x 3.5 in x 17 in
- Weight: 13.60 kg (30 lbs)
