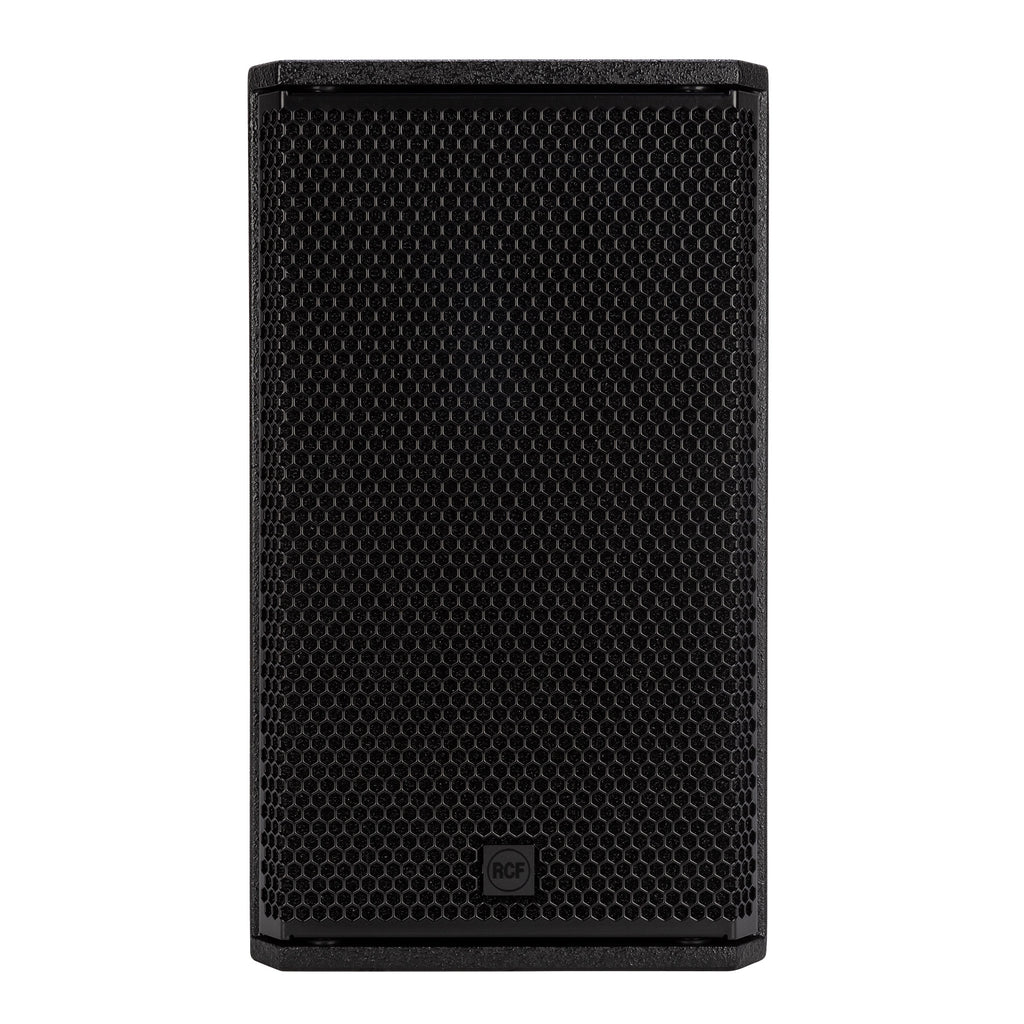

INSTALLED | COMPACT M 08 | TWO-WAY PROFESSIONAL SPEAKER | 200W RMS power handling | Technical Specifications | 124 dB max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
124 dB |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
70° |
| Directivity index Q |
9 |
| System Sensitivity |
95 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
200 W |
| Peak Power Handling |
800 W PEAK |
| Protections |
Dynamic active mosfet |
| Crossover Frequencies |
1800 Hz |
| Recommended Amplifiers |
| XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504 |

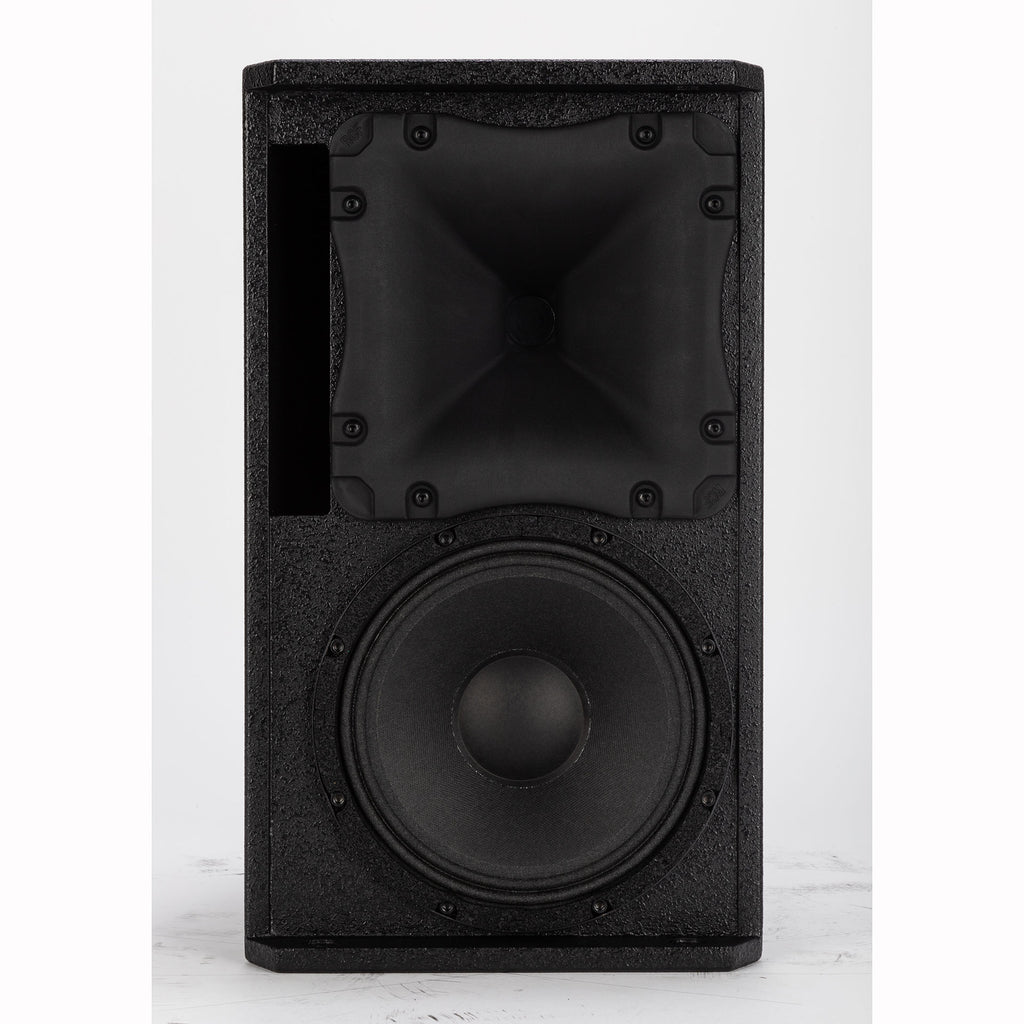

| Transducers |
| Compression Driver |
1 x 1.0'', 1.4'' v.c |
| Woofer |
1 x 8'', 1.7'' v.c |
| Input/Output section |

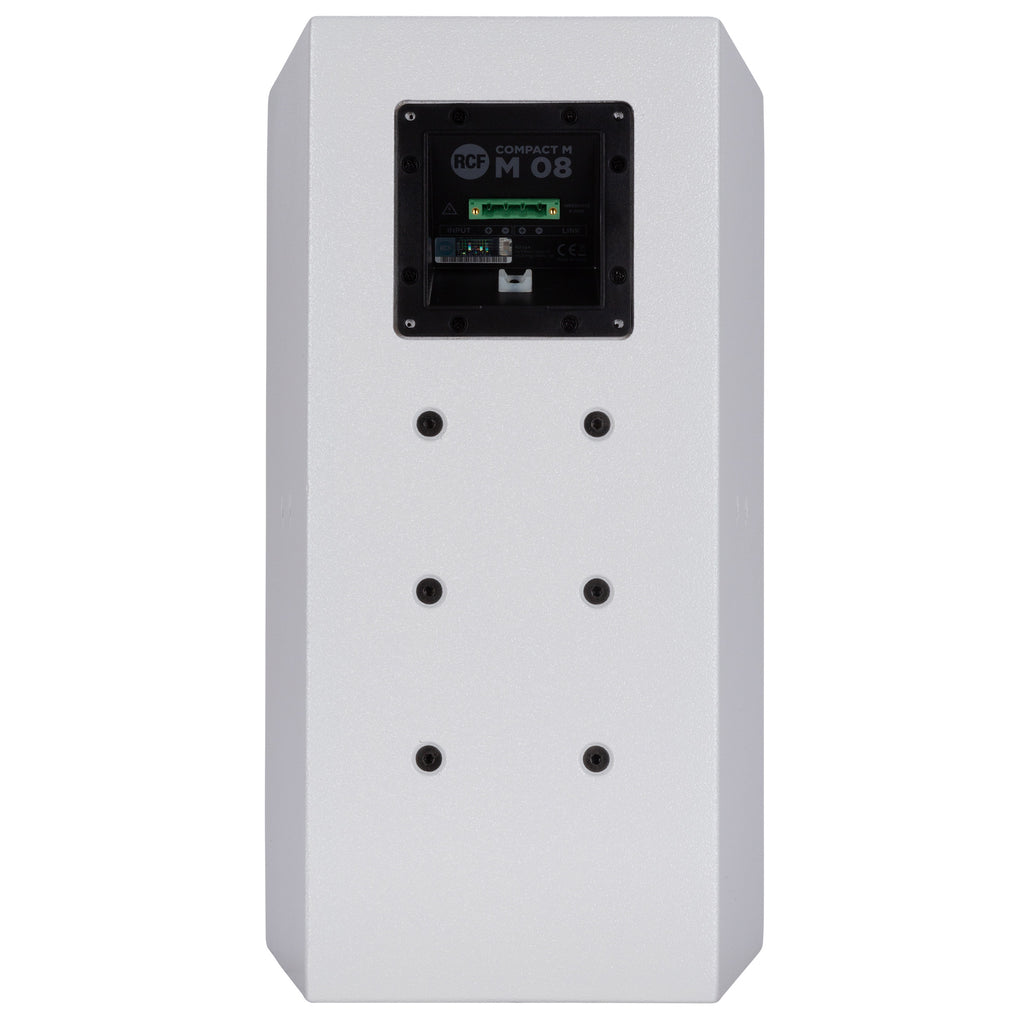

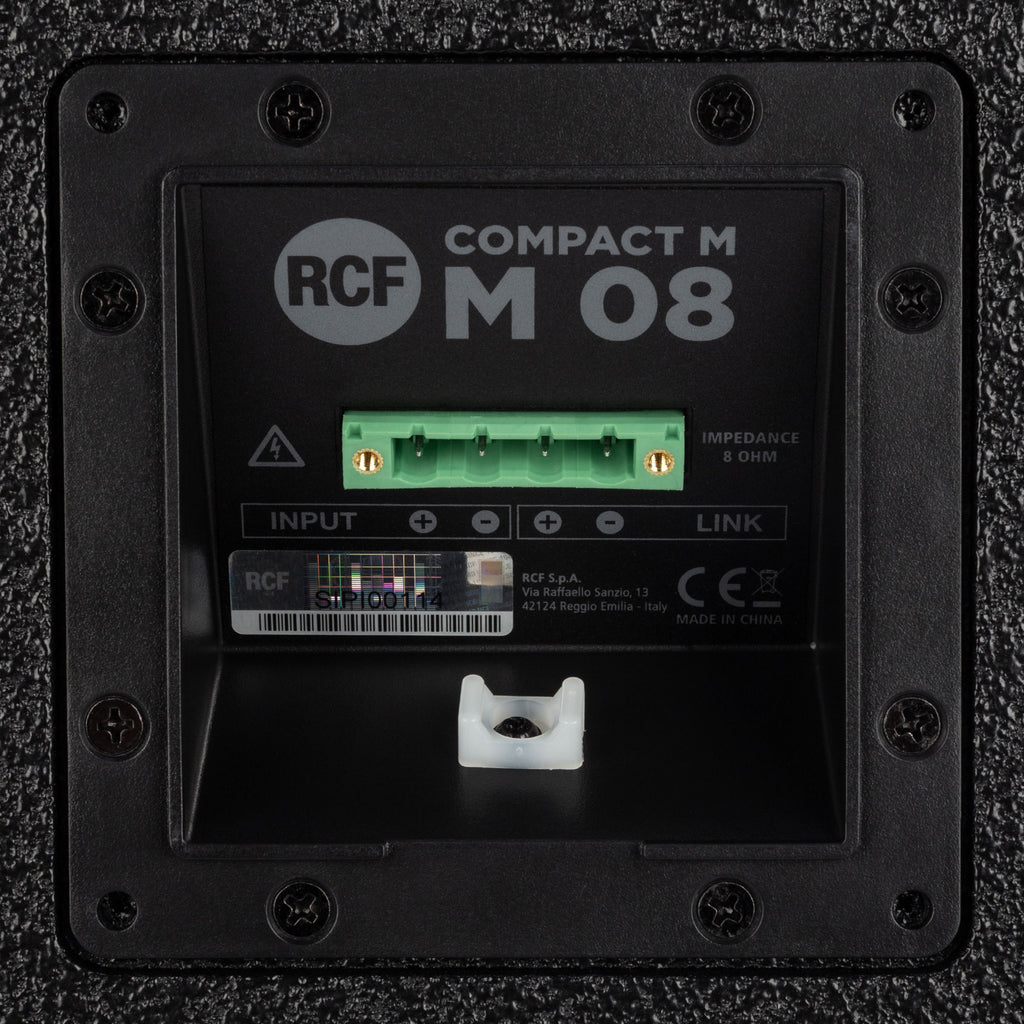

| Input connectors |
Euroblock |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
6 x M6, 4 x M8, 2 x M10 |
| Grille |
Steel with clothing |
| Color |

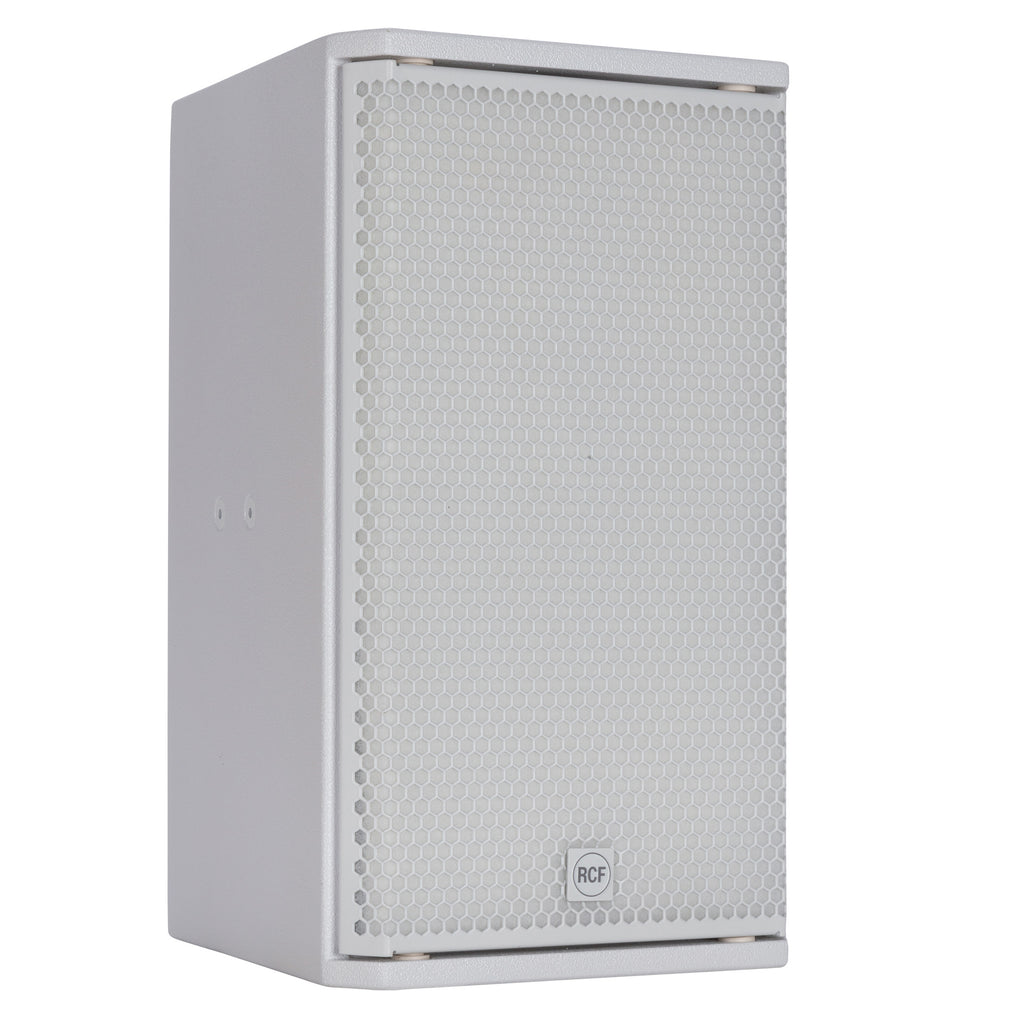

Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
| Height |
442 mm / 17.4 inches |
| Width |
257 mm / 10.12 inches |
| Depth |
284 mm / 11.18 inches |
| Weight |
10.5 kg / 23.15 lbs |
| Shipping information |
| Package Height |
477 mm / 18.78 inches |
| Package Width |
322 mm / 12.68 inches |
| Package Depth |
295 mm / 11.61 inches |
| Package Weight |
12.4 kg / 27.34 lbs |
