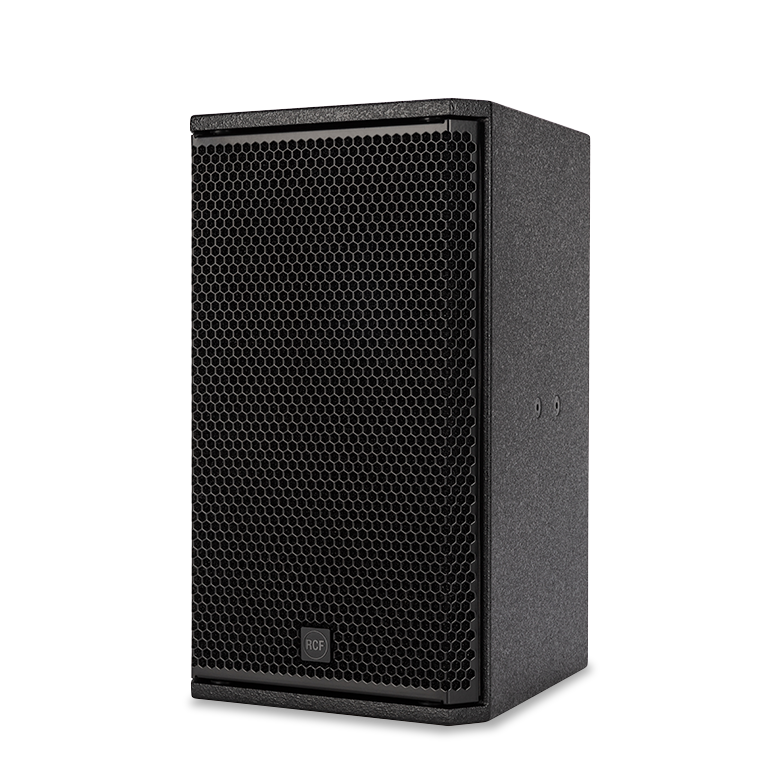

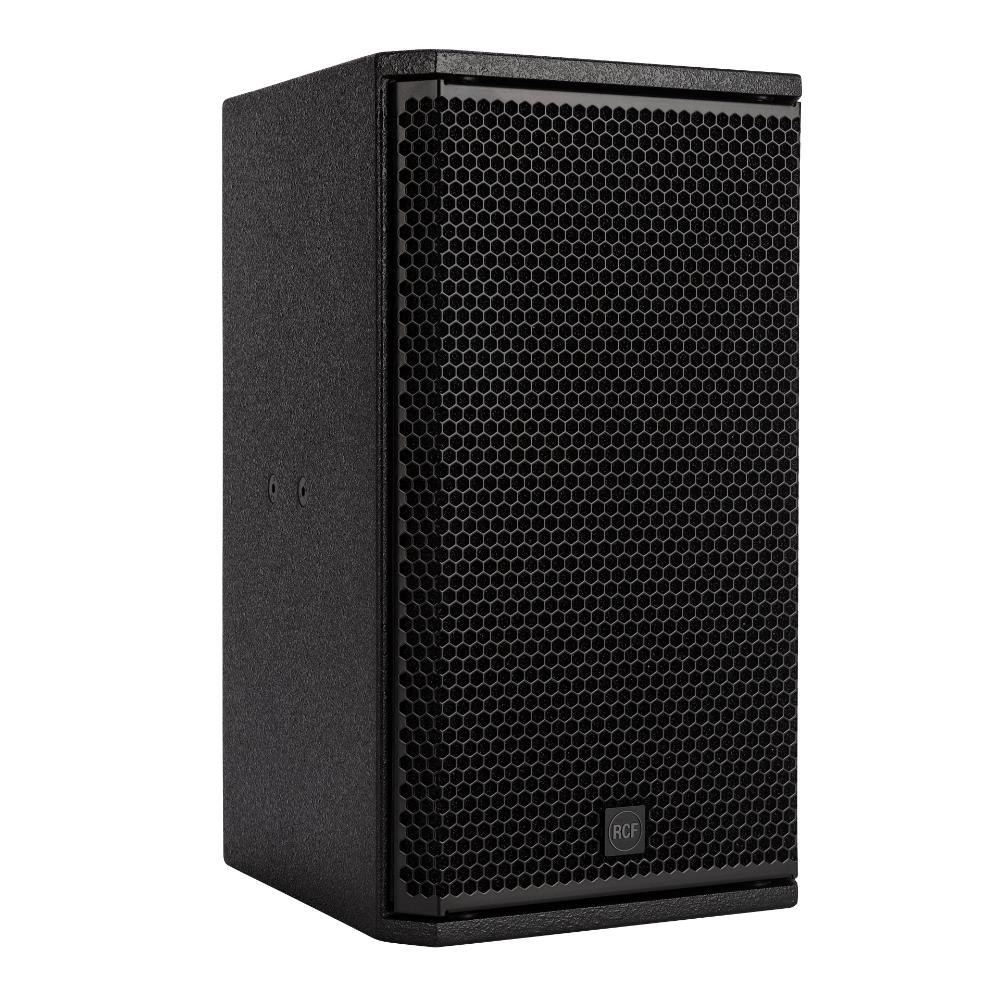

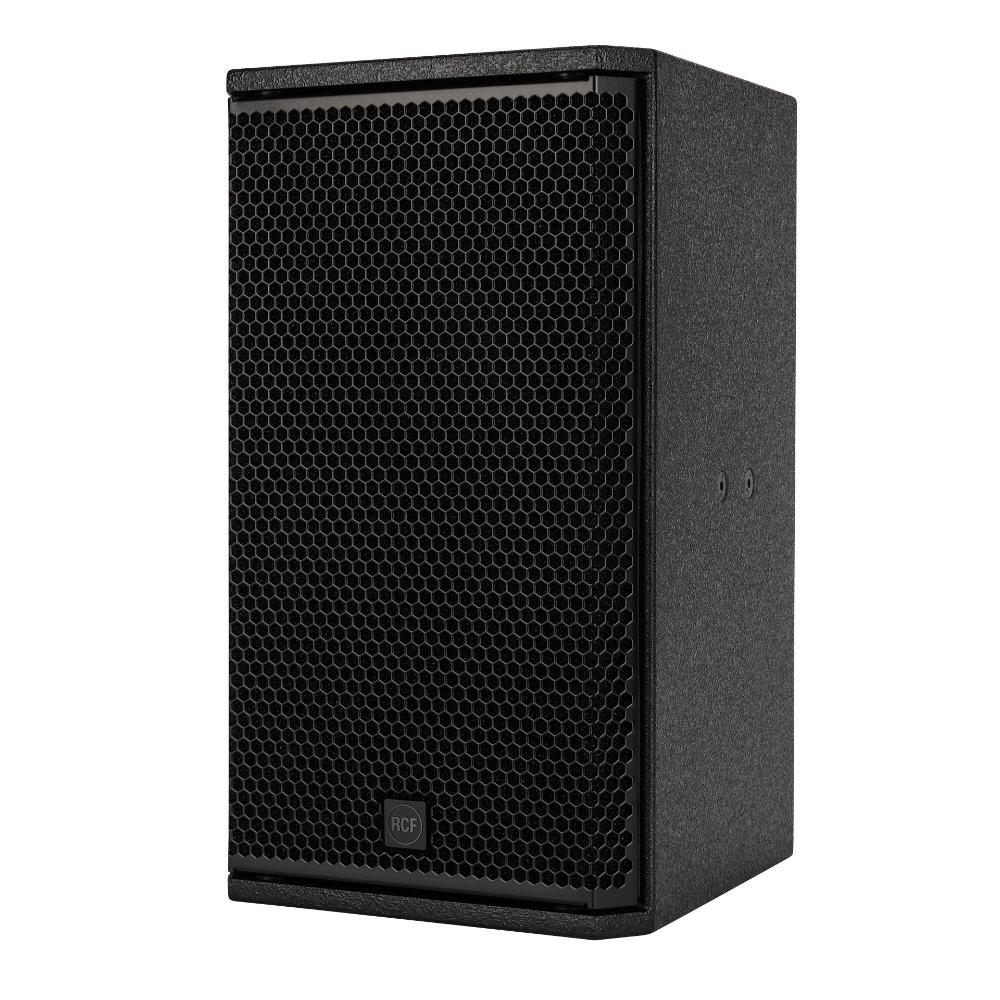

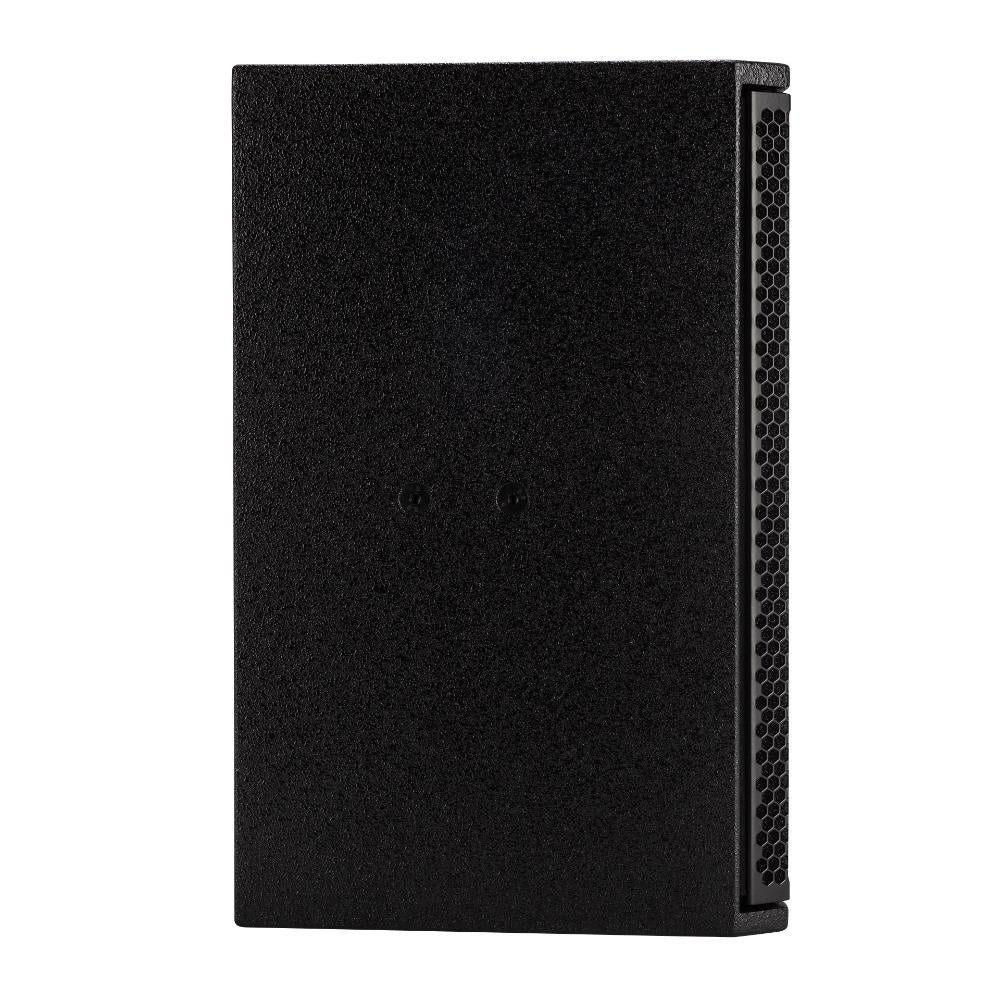

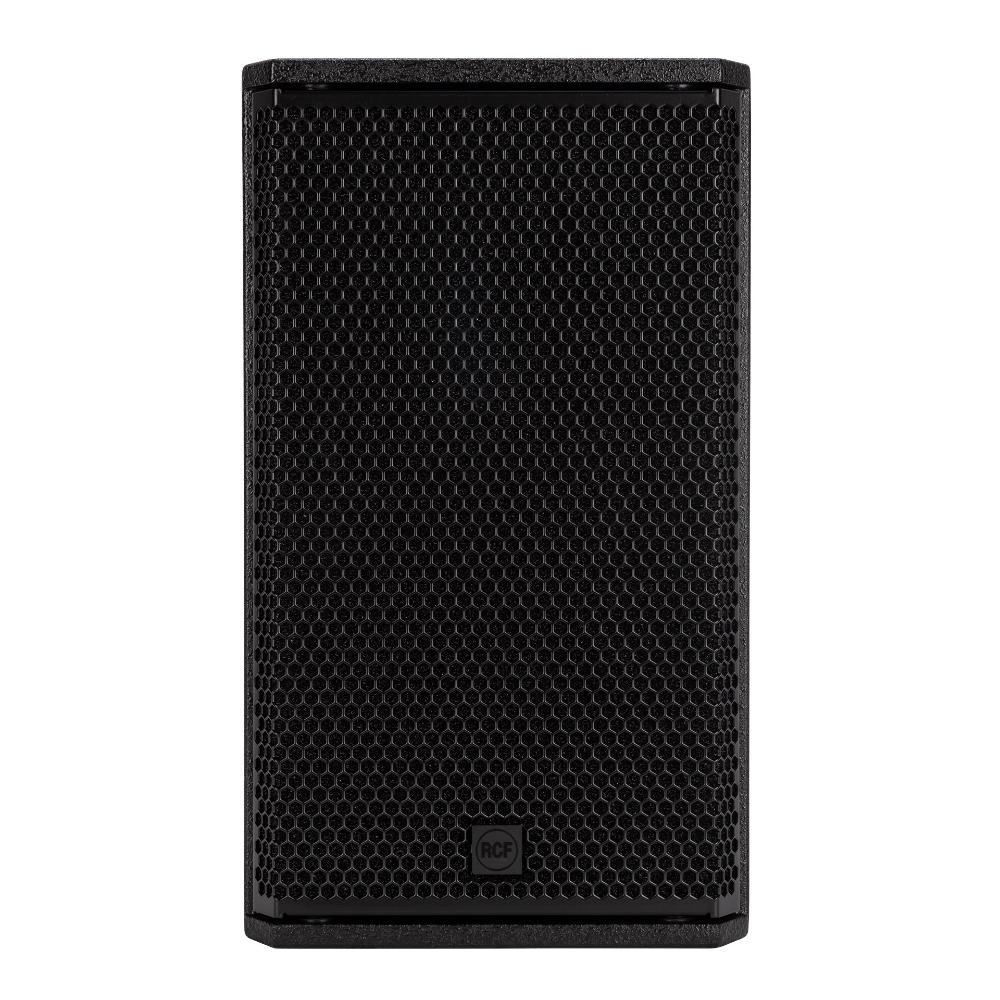

BUSINESS MUSIC | INSTALLED | COMPACT M 06 | TWO-WAY PROFESSIONAL SPEAKER | 100 W RMS power handling | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
116 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
80° |
| Directivity index Q |
7 |
| System Sensitivity |
90 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
100 W |
| Peak Power Handling |
400 W PEAK |
| Protections |
Dynamic active mosfet |
| Crossover Frequencies |
2200 Hz |
| Recommended Amplifiers |
DMA 162, DMA 162P, DMA 504, DMA 82 |
| Transducers |
| Dome Tweeter |
1 x 1.3'' neo, 1.0'' v.c |
| Woofer |
1 x 6.0'', 1.5'' v.c |
| Input/Output section |
| Input connectors |
Euroblock |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
4 x M6, 2 x M8 |
| Grille |
Steel with clothing |
| Color |
Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
| Height |
365 mm / 14.37 inches |
| Width |
211 mm / 8.31 inches |
| Depth |
232 mm / 9.13 inches |
| Weight |
5.5 kg / 12.13 lbs |
| Shipping information |
| Package Height |
386 mm / 15.2 inches |
| Package Width |
256 mm / 10.08 inches |
| Package Depth |
235 mm / 9.25 inches |
| Package Weight |
7 kg / 15.43 lbs |
