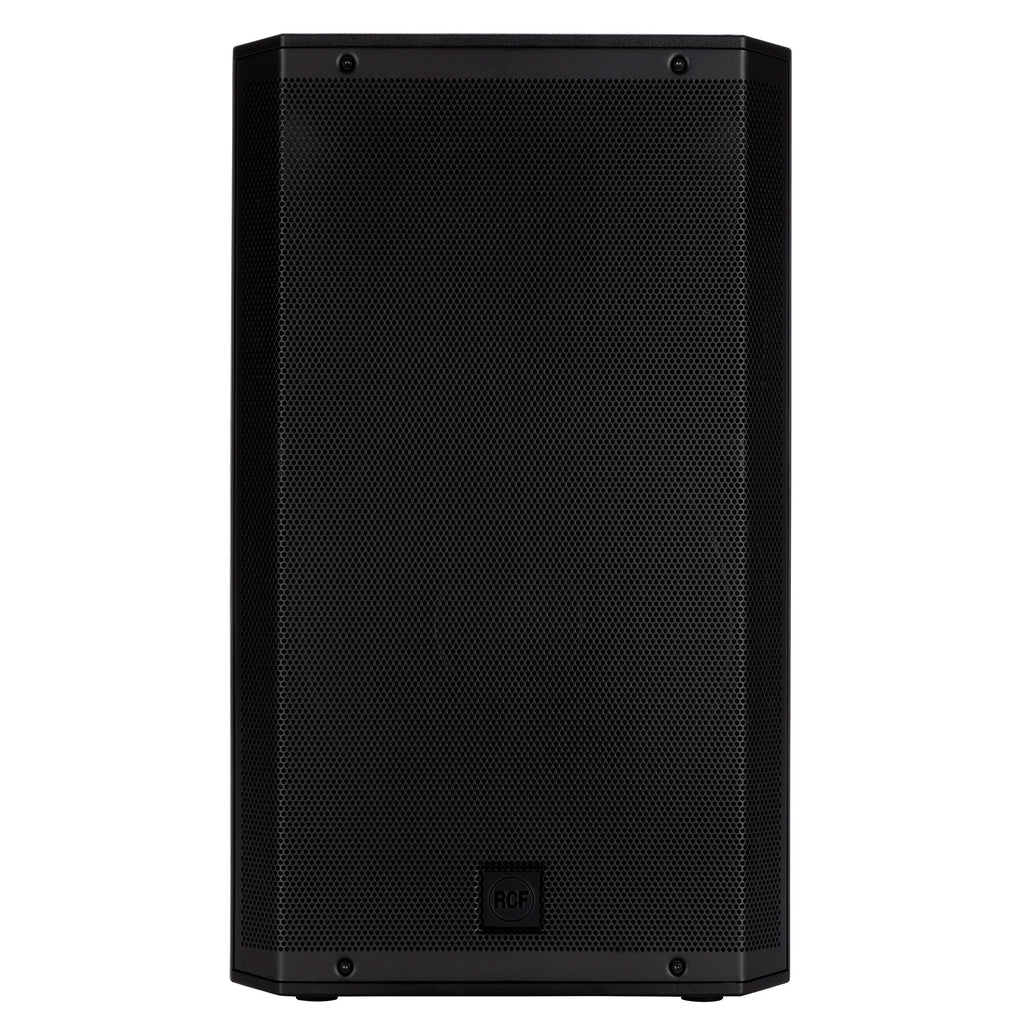

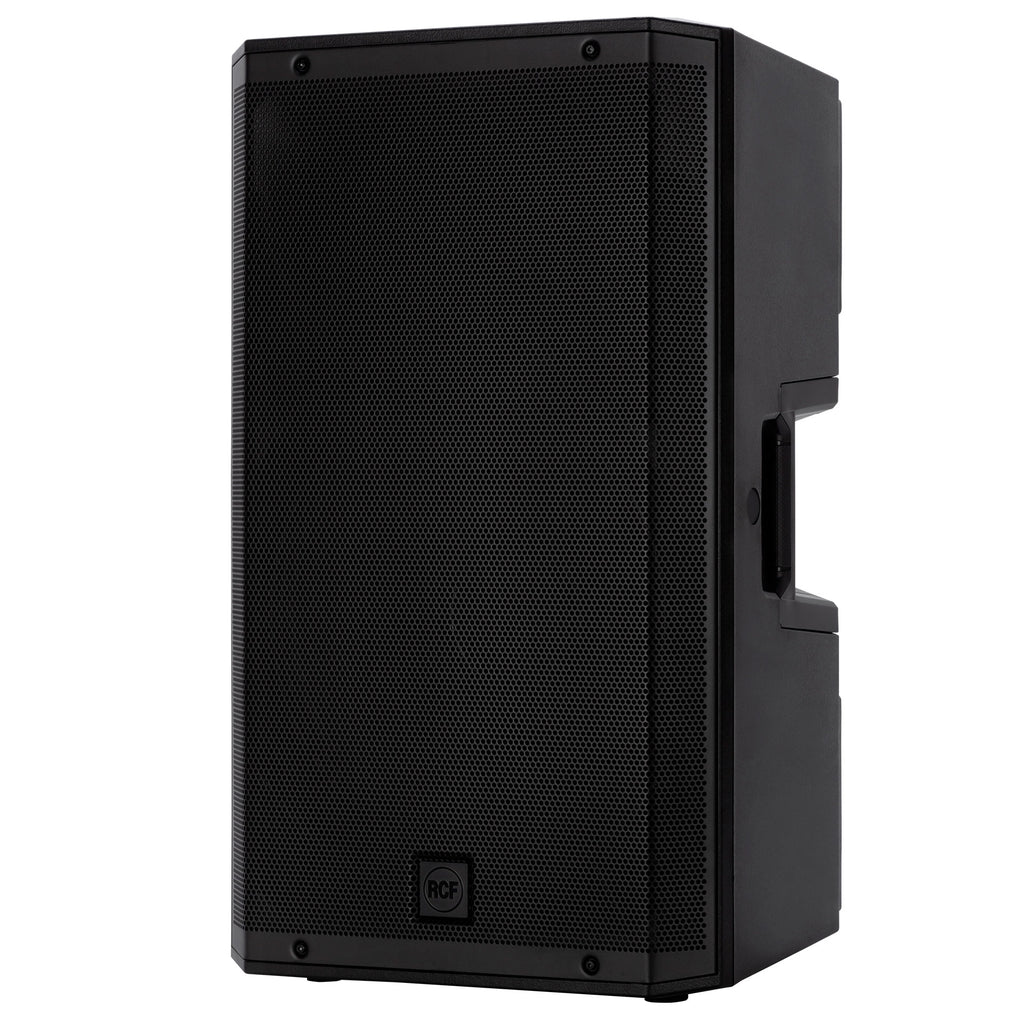

INSTALLED | COMPACT A 15 | TWO-WAY PROFESSIONAL SPEAKER | 450 W power handling | Up to 130 dB Sound Pressure Level | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
130 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
60° |
| System Sensitivity |
98 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
450 W |
| Peak Power Handling |
1800 W PEAK |
| Protections |
Dynamic Active Mosfet |
| Crossover Frequencies |
1200 Hz |
| Transducers |
| Compression Driver |
1 x 1.0'', 1.75'' v.c |
| Woofer |
1 x 15'', 3.0'' v.c |
| Input/Output section |
| Input connectors |
Speakon |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
1 x M10 top, 1 x M10 each side |

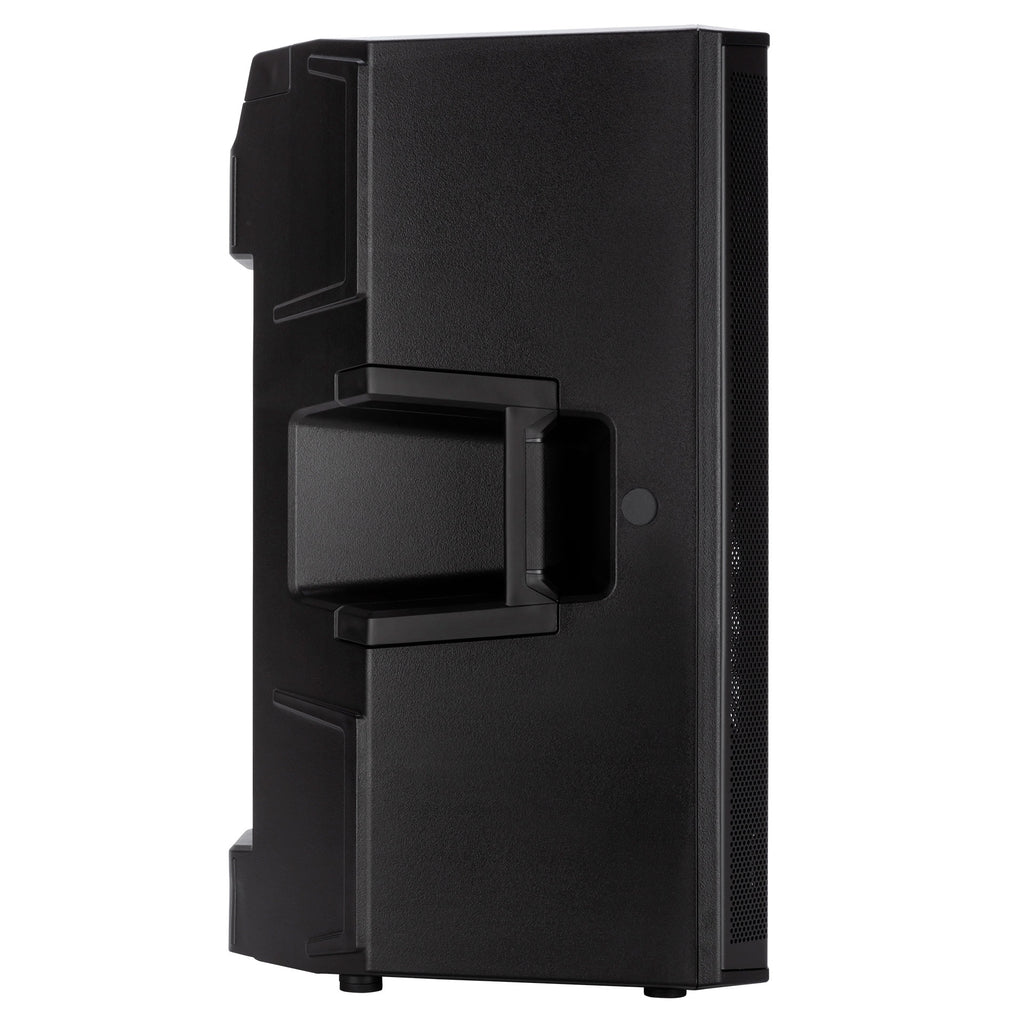

| Handles |
1 top, 1 each side |

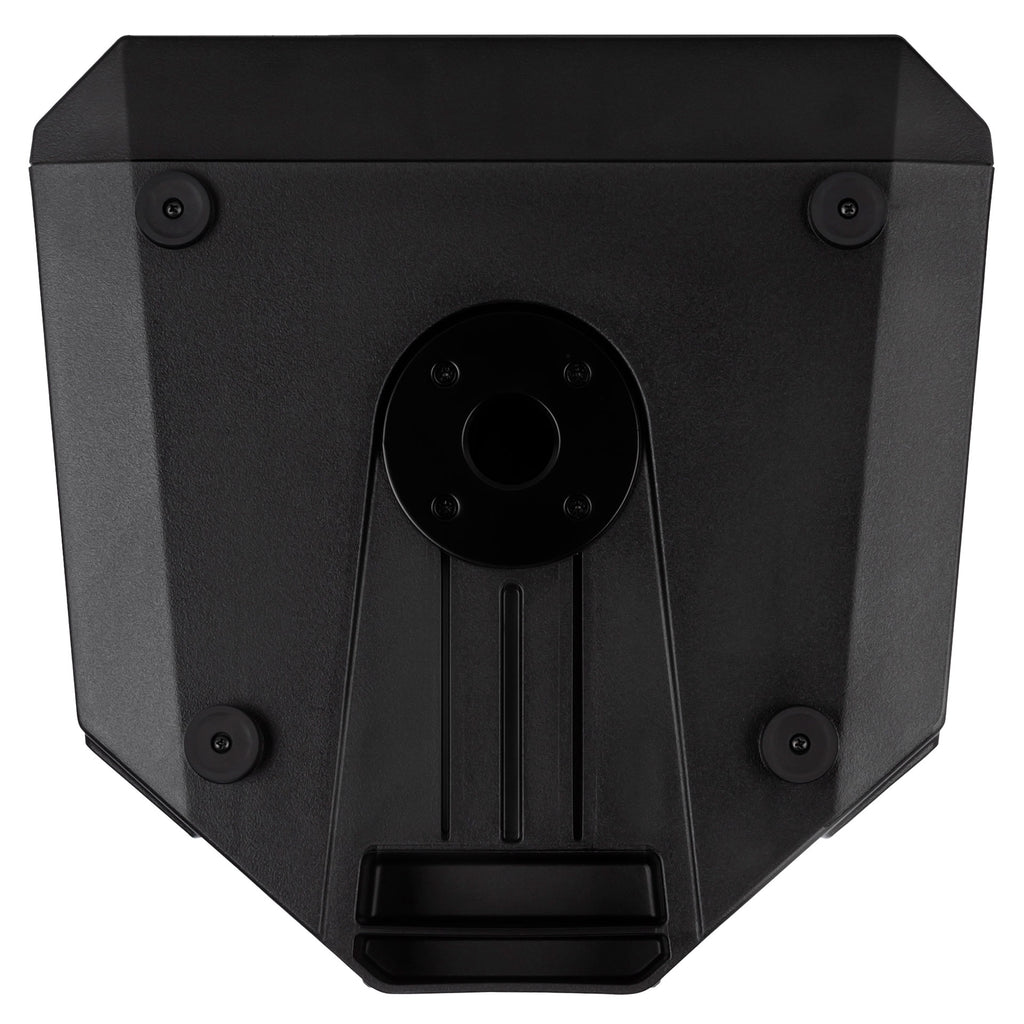

| Pole mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black - RAL 9005 |
| Size / Weight |
| Height |
716.6 mm / 28.21 inches |
| Width |
414.9 mm / 16.33 inches |
| Depth |
410 mm / 16.14 inches |
| Weight |
23.5 kg / 51.81 lbs |
| Shipping information |
| Package Height |
760 mm / 29.92 inches |
| Package Width |
475 mm / 18.7 inches |
| Package Depth |
470 mm / 18.5 inches |
| Package Weight |
25.5 kg / 56.22 lbs |
