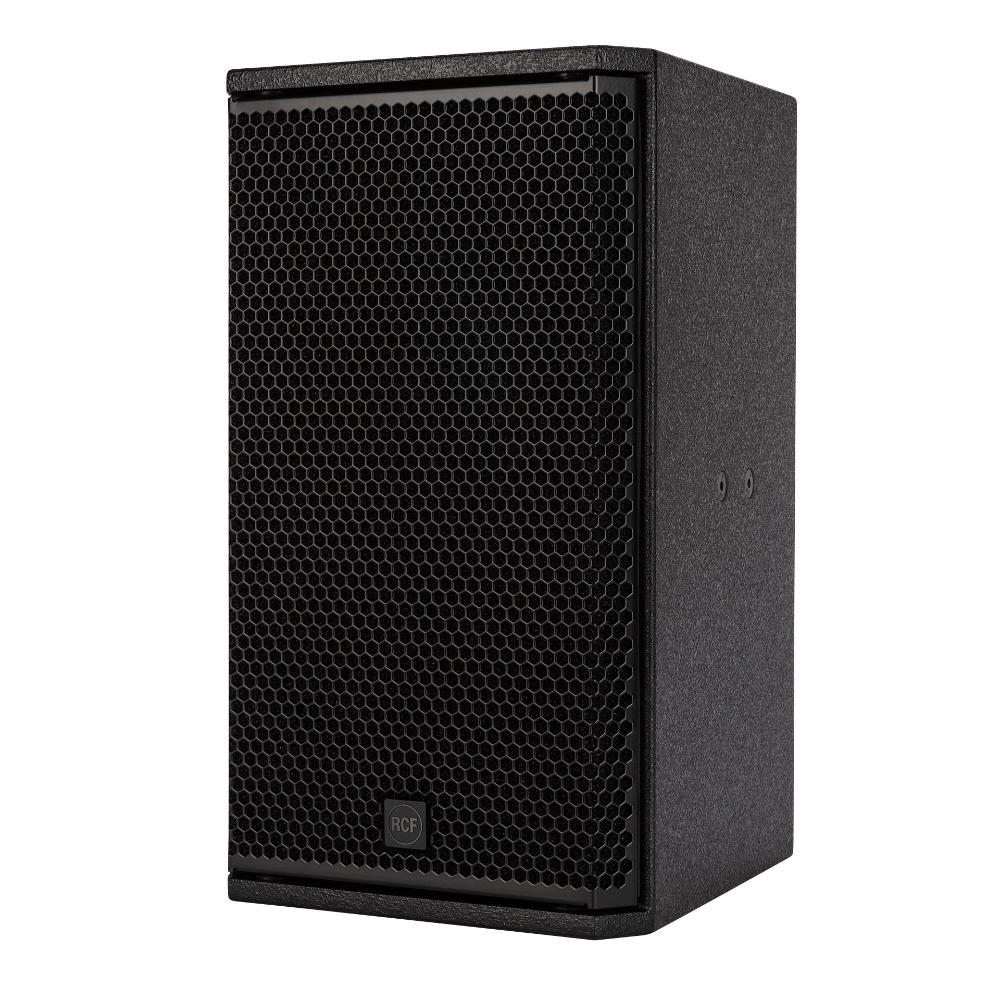

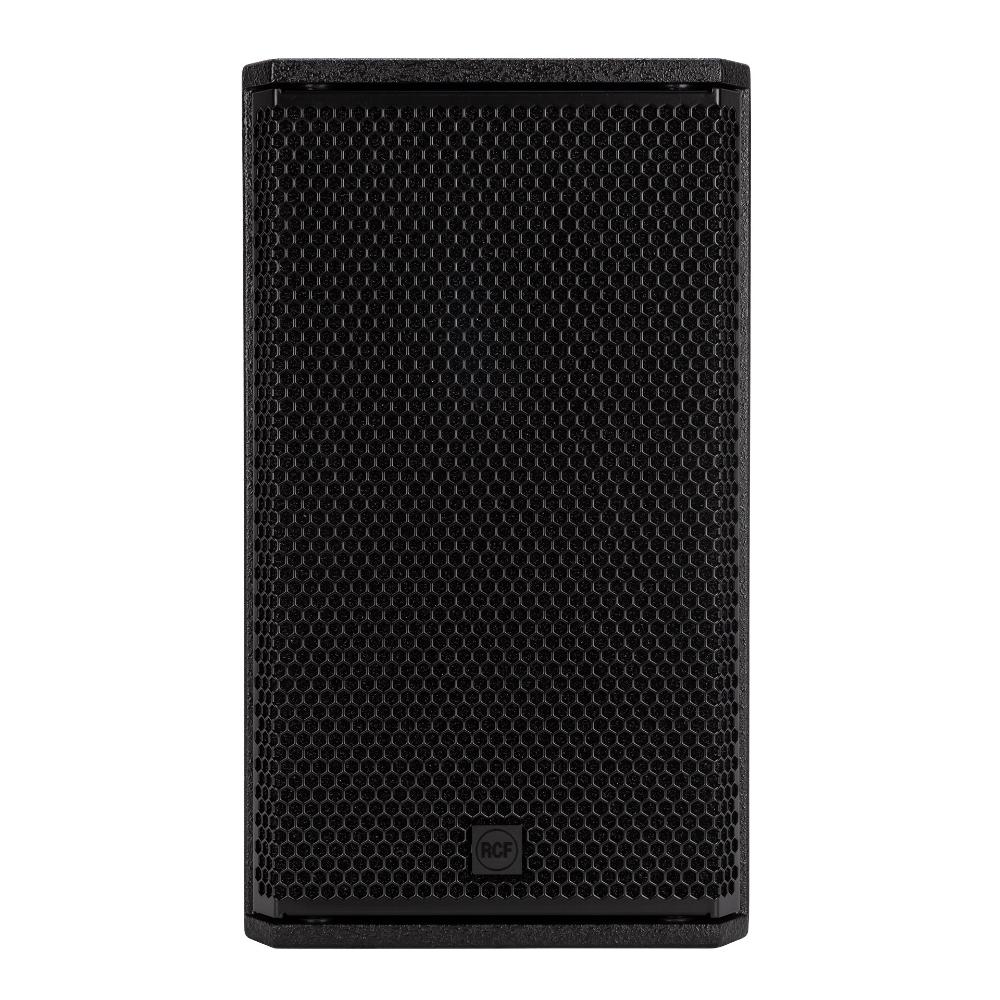

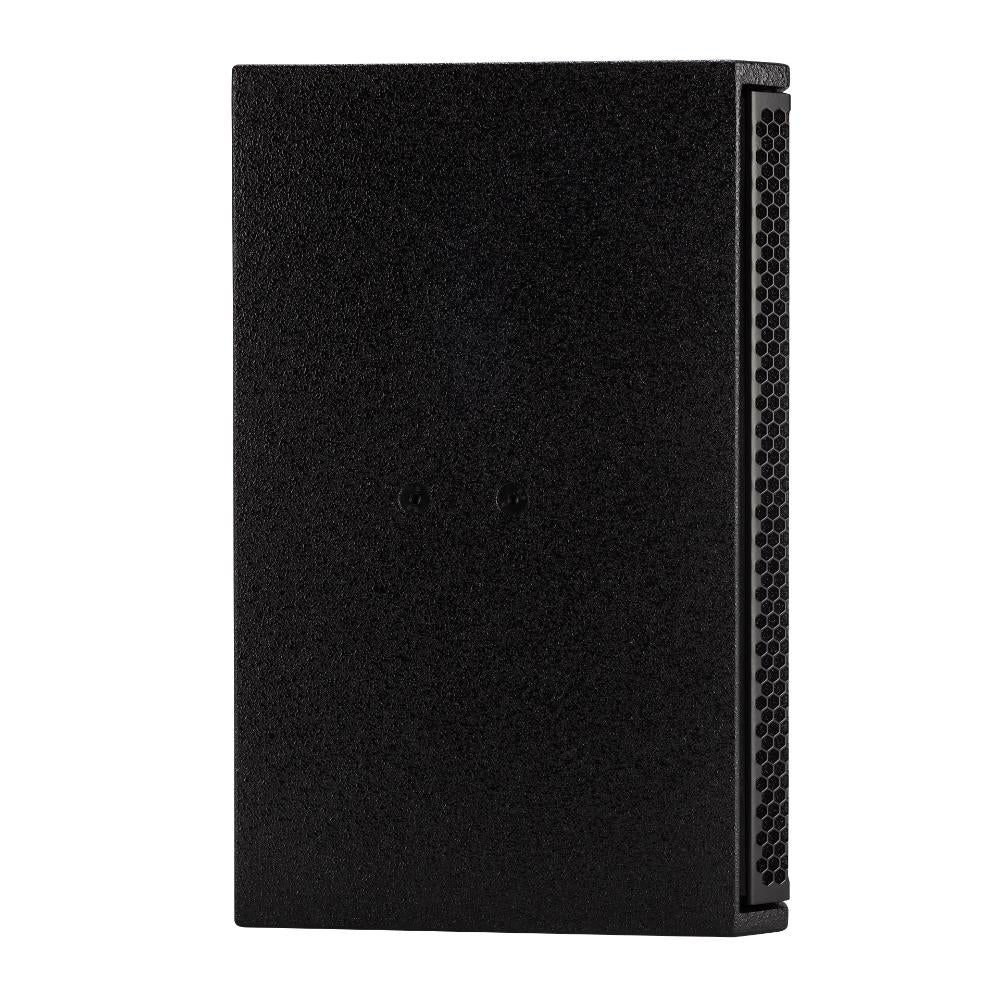

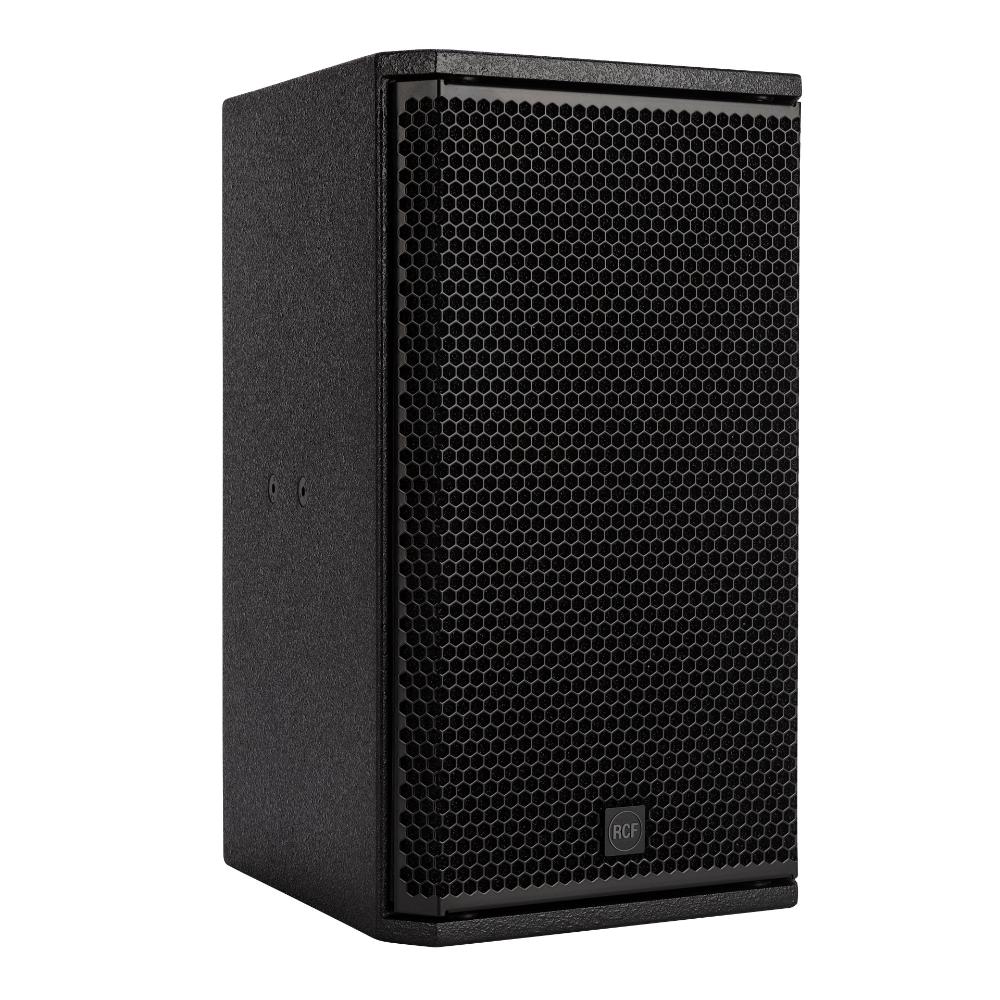

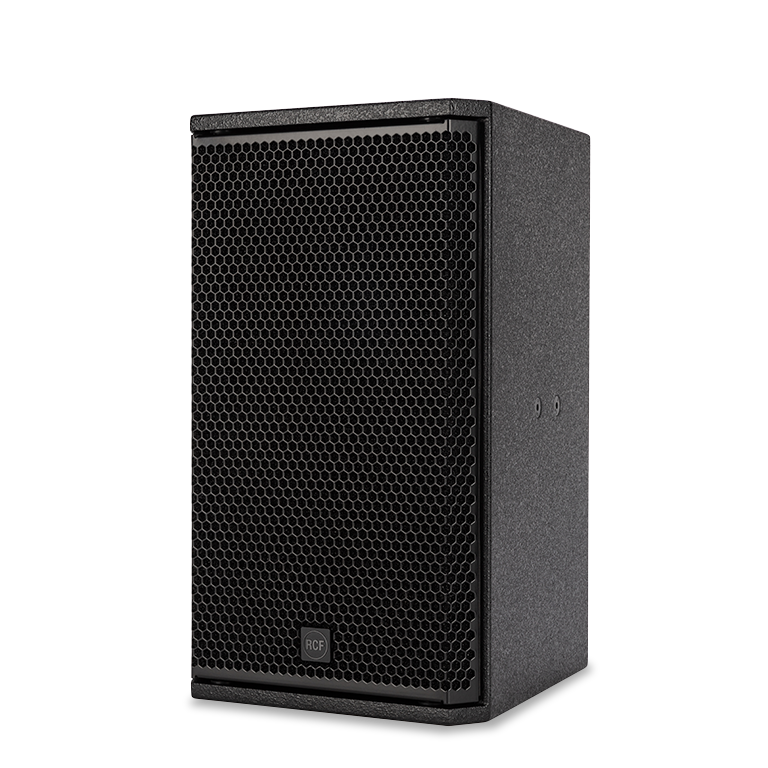

INSTALLED | COMPACT A 12 | TWO-WAY PROFESSIONAL SPEAKER | 400 W power handling | Up to 129 dB Sound Pressure Level | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
55 Hz - 20000 Hz |
| Max SPL @ 1m |
129 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
60° |
| System Sensitivity |
97 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
400 W |
| Peak Power Handling |
1600 W PEAK |
| Protections |
Dynamic Active Mosfet |
| Crossover Frequencies |
1200 Hz |
| Recommended Amplifiers |
QPS 10K, QPS 6.0K, IPS 2.5K, IPS 1.5K, DMA 504 |
| Transducers |
| Compression Driver |
1 x 1.0'', 1.75'' v.c |
| Woofer |
1 x 12'', 2.5'' v.c |
| Input/Output section |
| Input connectors |
Speakon |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
1 x M10 top, 1 x M10 each side |
| Handles |
1 top , 1 each side |
| Pole mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black - RAL 9005 |
| Size / Weight |
| Height |
641.6 mm / 25.26 inches |
| Width |
369.9 mm / 14.56 inches |
| Depth |
363 mm / 14.29 inches |
| Weight |
18.8 kg / 41.45 lbs |
| Shipping information |
| Package Height |
685 mm / 26.97 inches |
| Package Width |
430 mm / 16.93 inches |
| Package Depth |
423 mm / 16.65 inches |
| Package Weight |
21.4 kg / 47.18 lbs |
