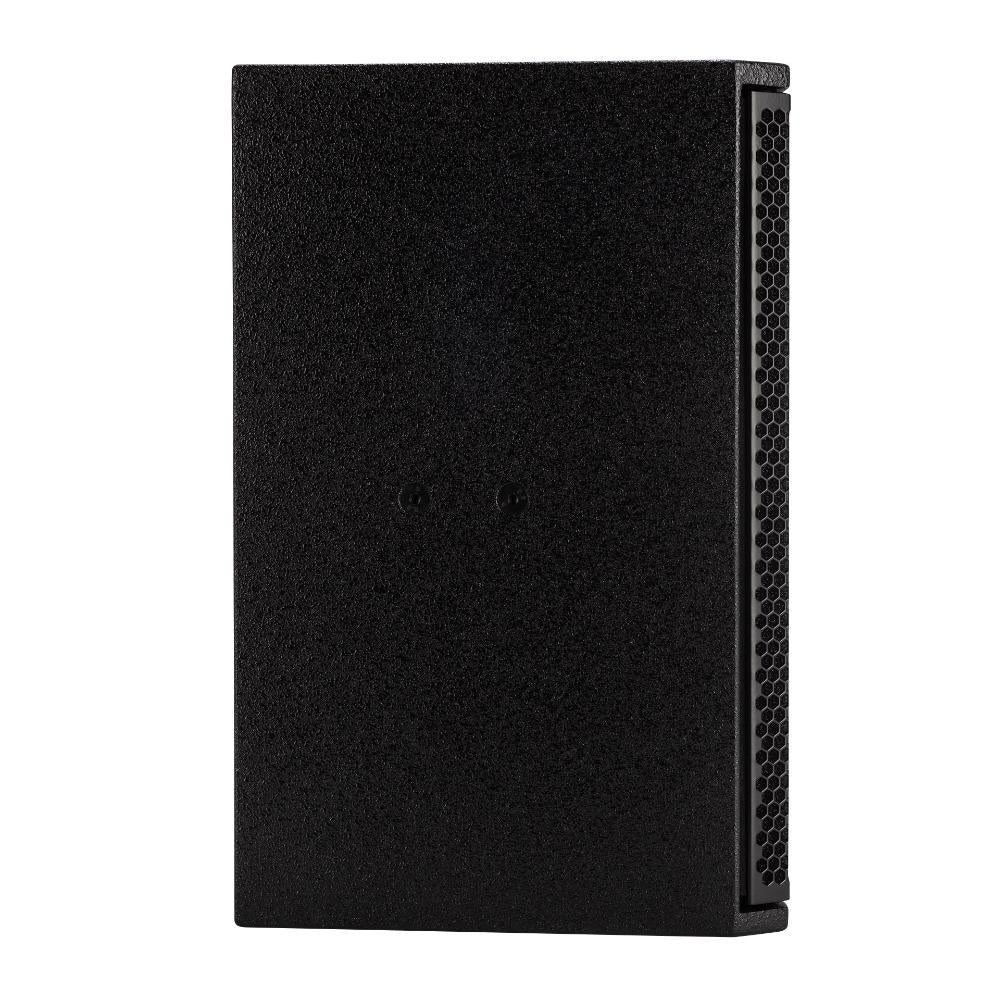

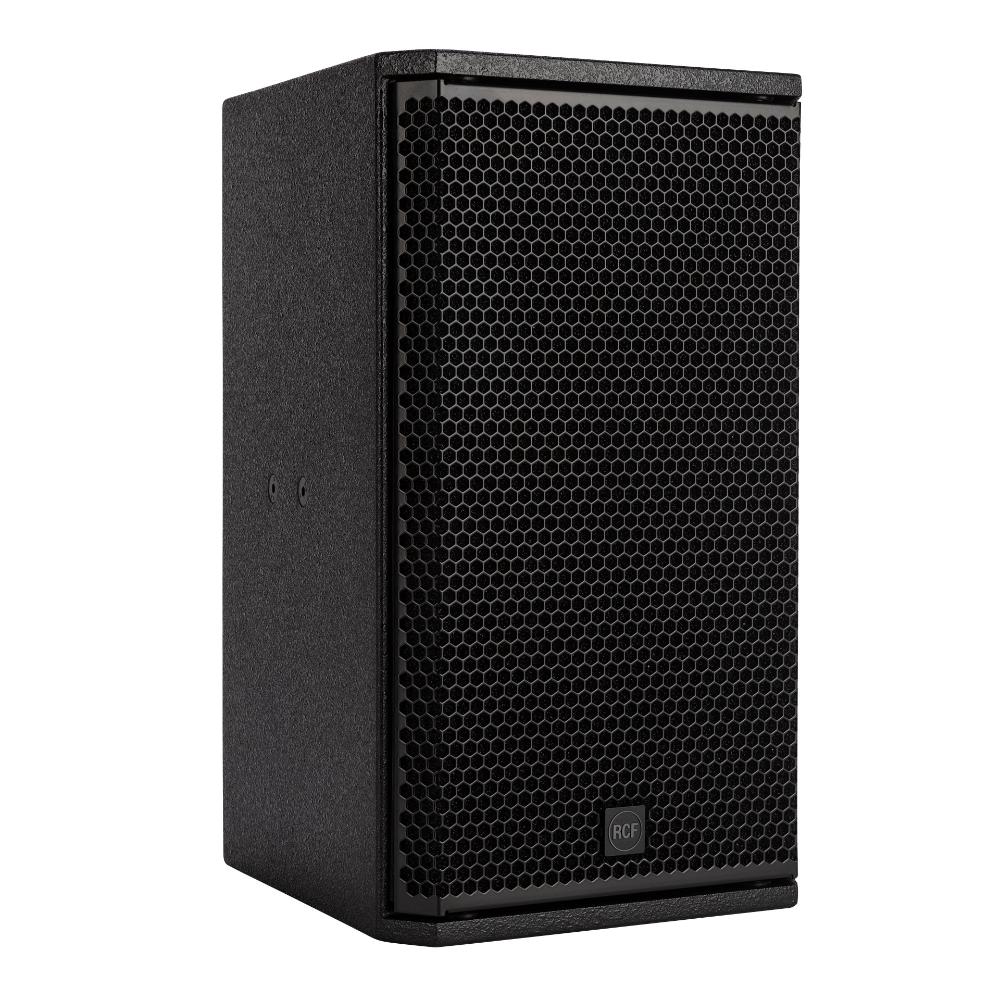

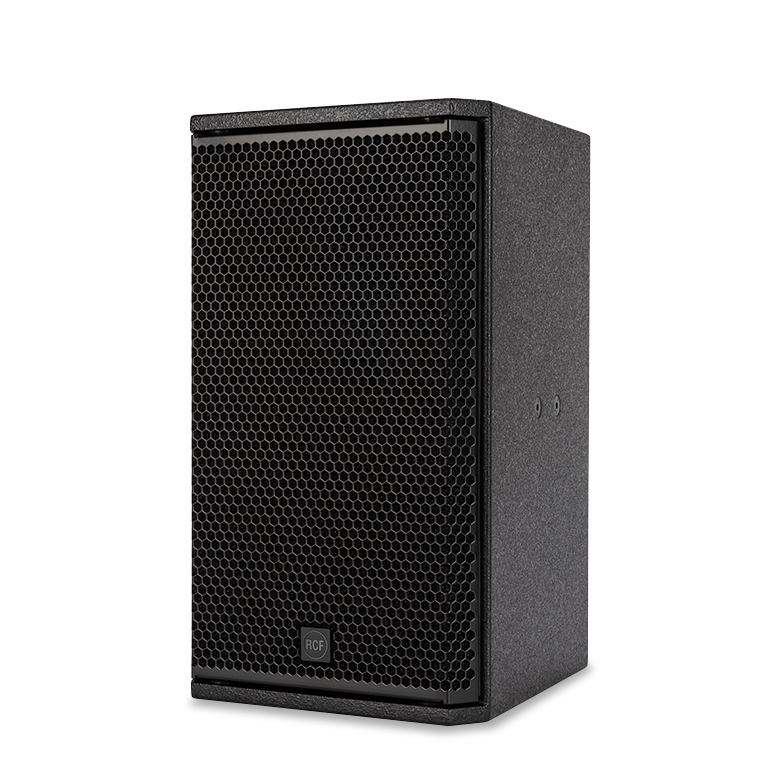

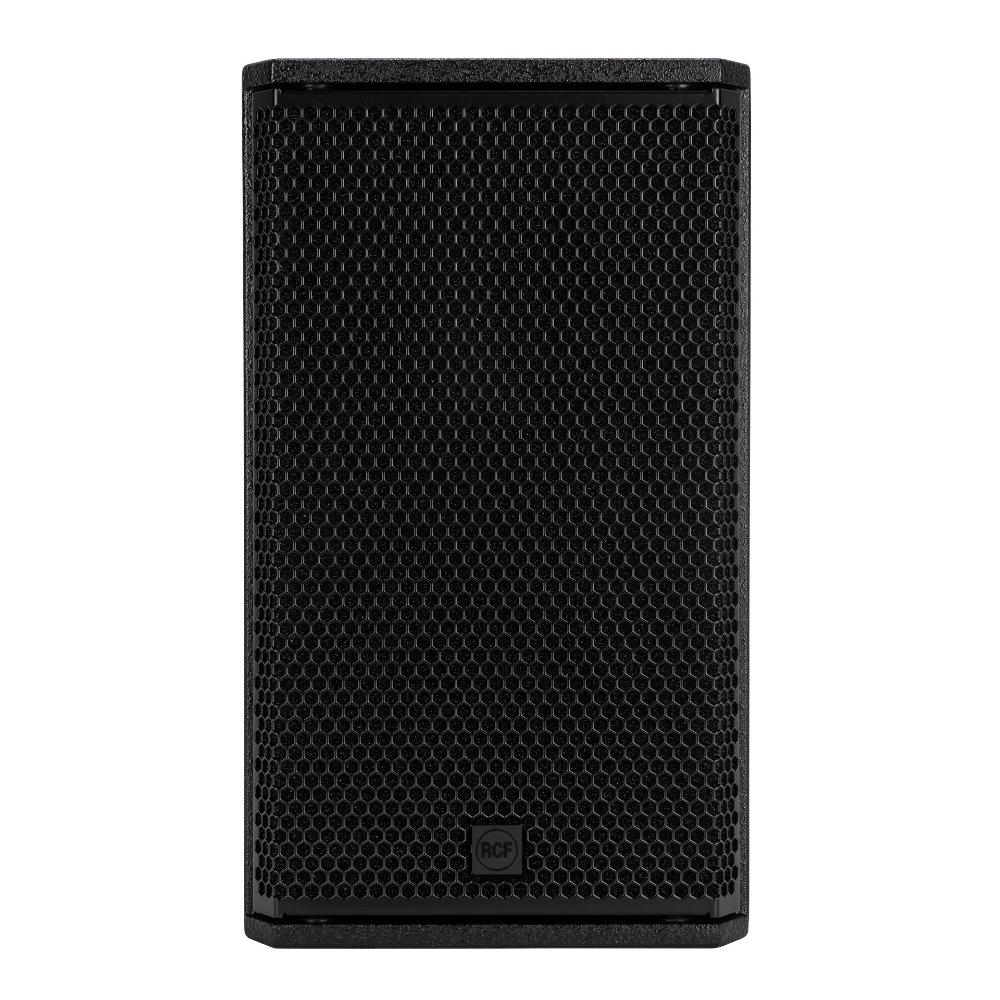

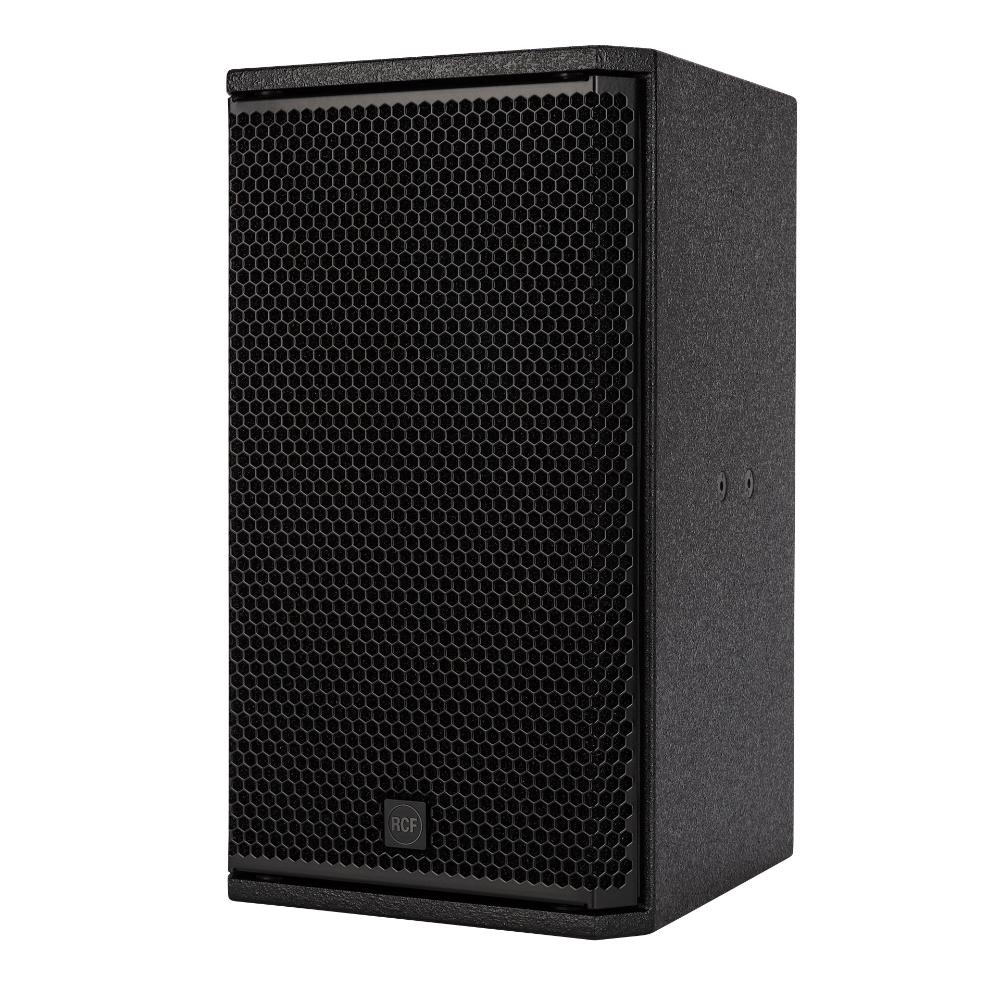

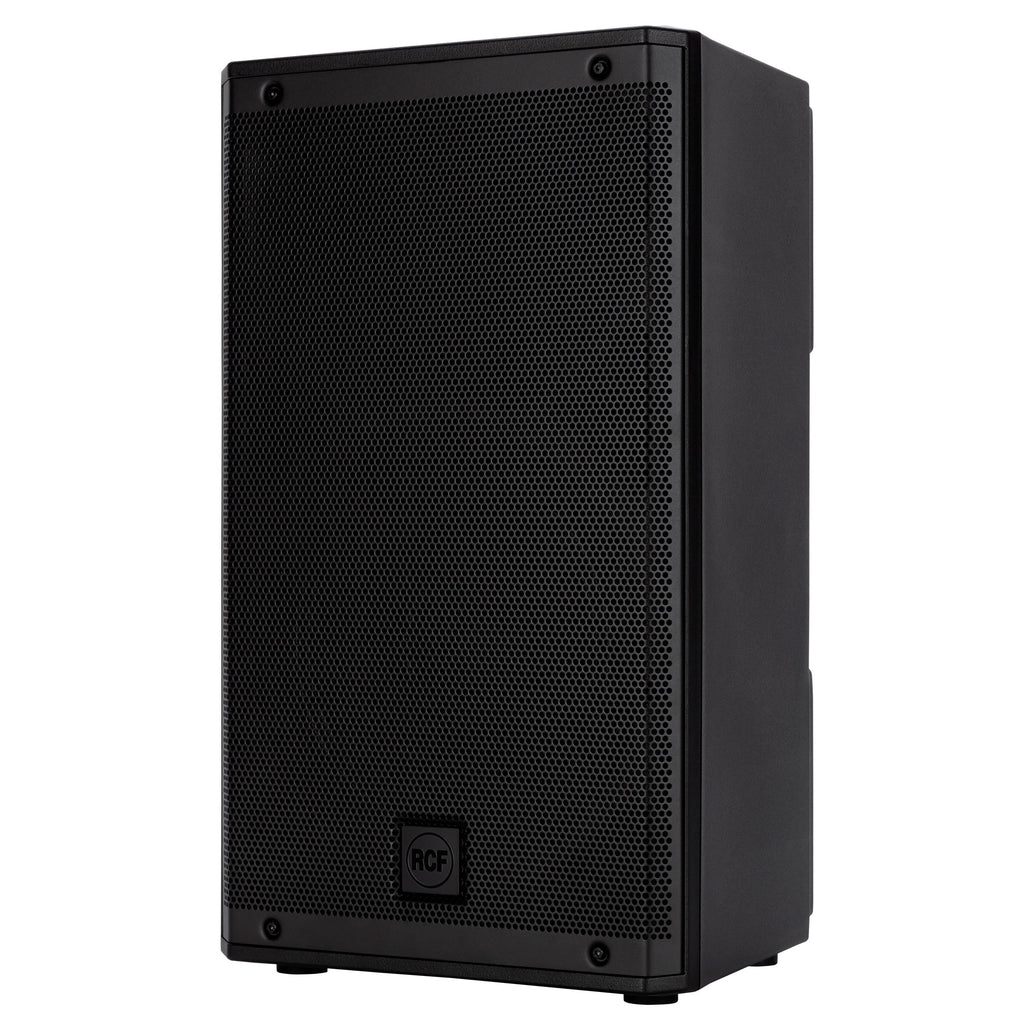

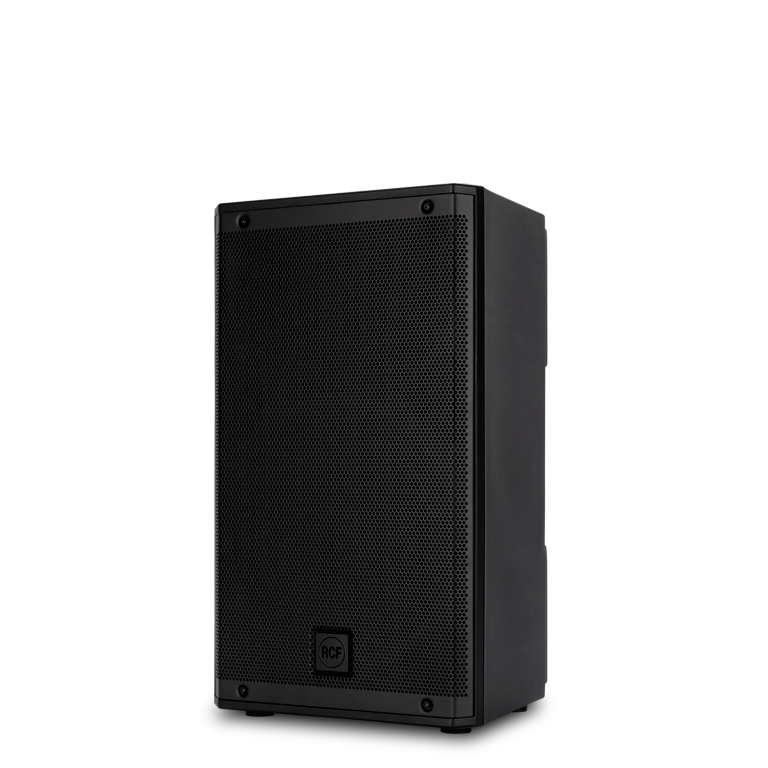

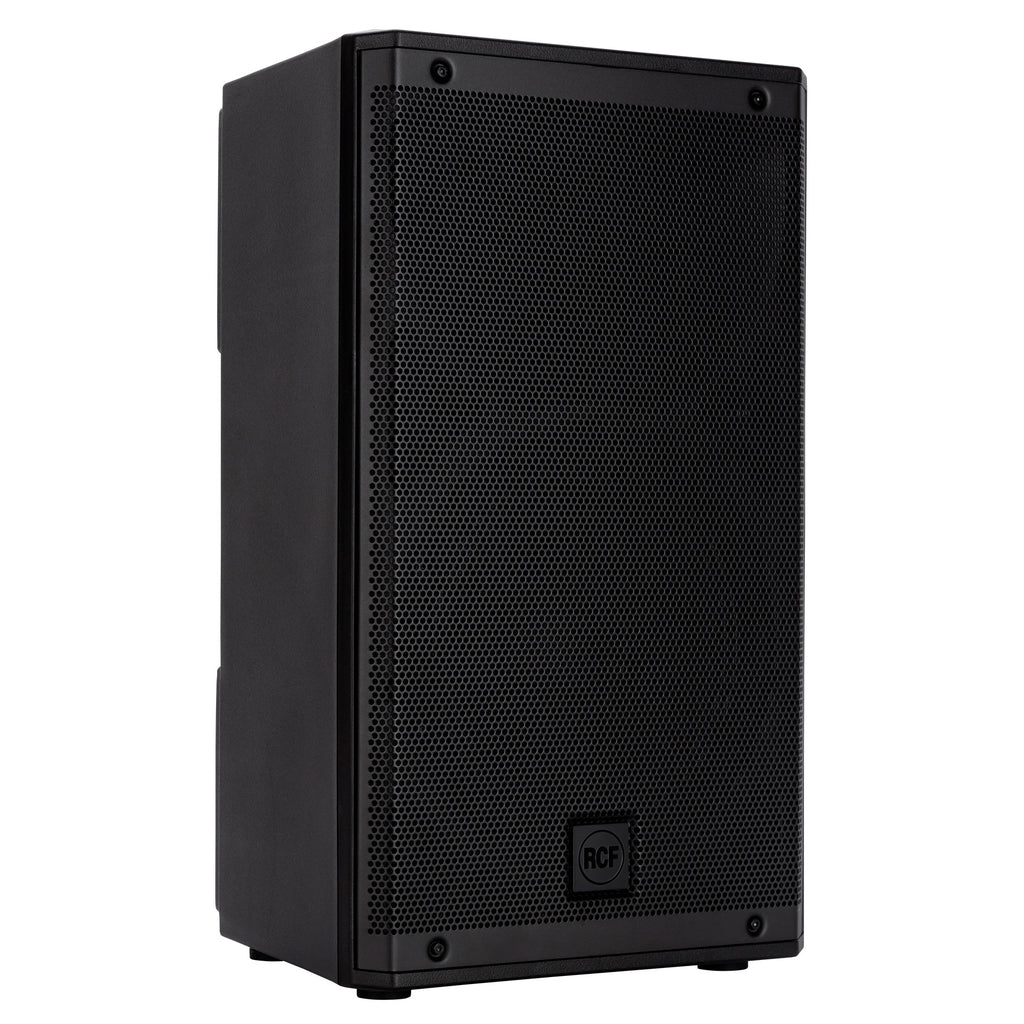

INSTALLED | COMPACT A 10 | TWO-WAY PROFESSIONAL SPEAKER | 350 W power handling | Up to 128 dB Sound Pressure Level | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
60° |
| System Sensitivity |
97 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
350 W |
| Peak Power Handling |
1400 W PEAK |
| Protections |
Dynamic Active Mosfet |
| Crossover Frequencies |
1400 Hz |
| Recommended Amplifiers |
QPS 10K, QPS 6.0K, IPS 2.5K, IPS 1.5K, DMA 504 |
| Transducers |
| Compression Driver |
1 x 1.0'', 1.75'' v.c |
| Woofer |
1 x 10'', 2.5'' v.c |
| Input/Output section |

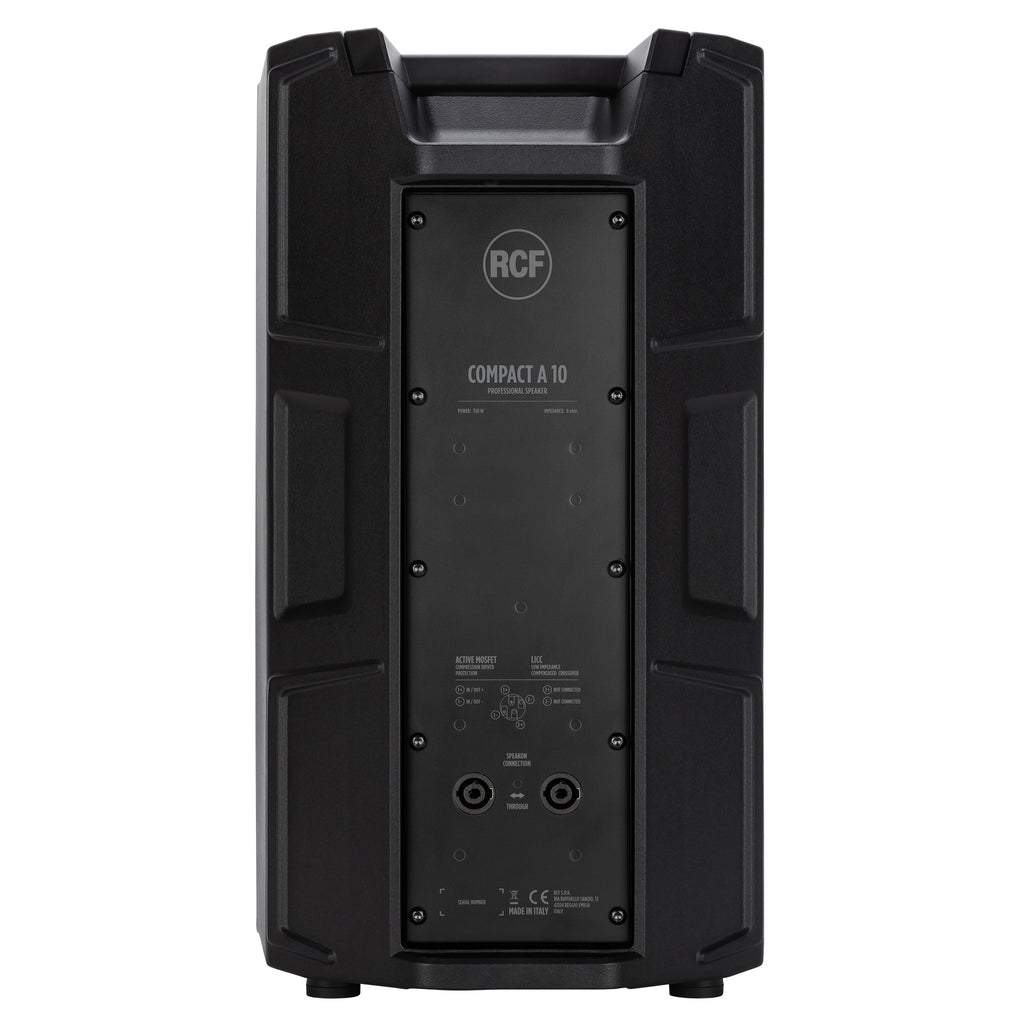

| Input connectors |
Speakon |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
1 x M10 top and bottom |

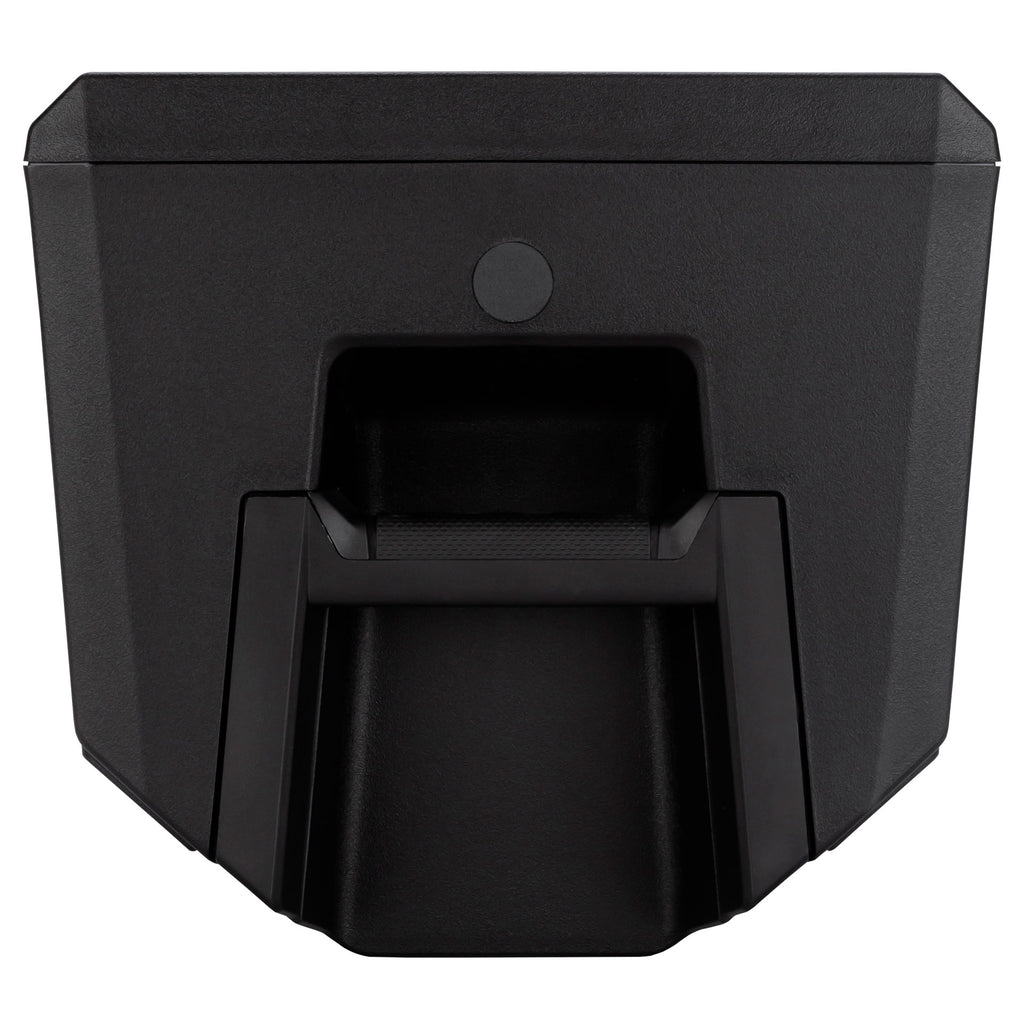

| Handles |
1 top |

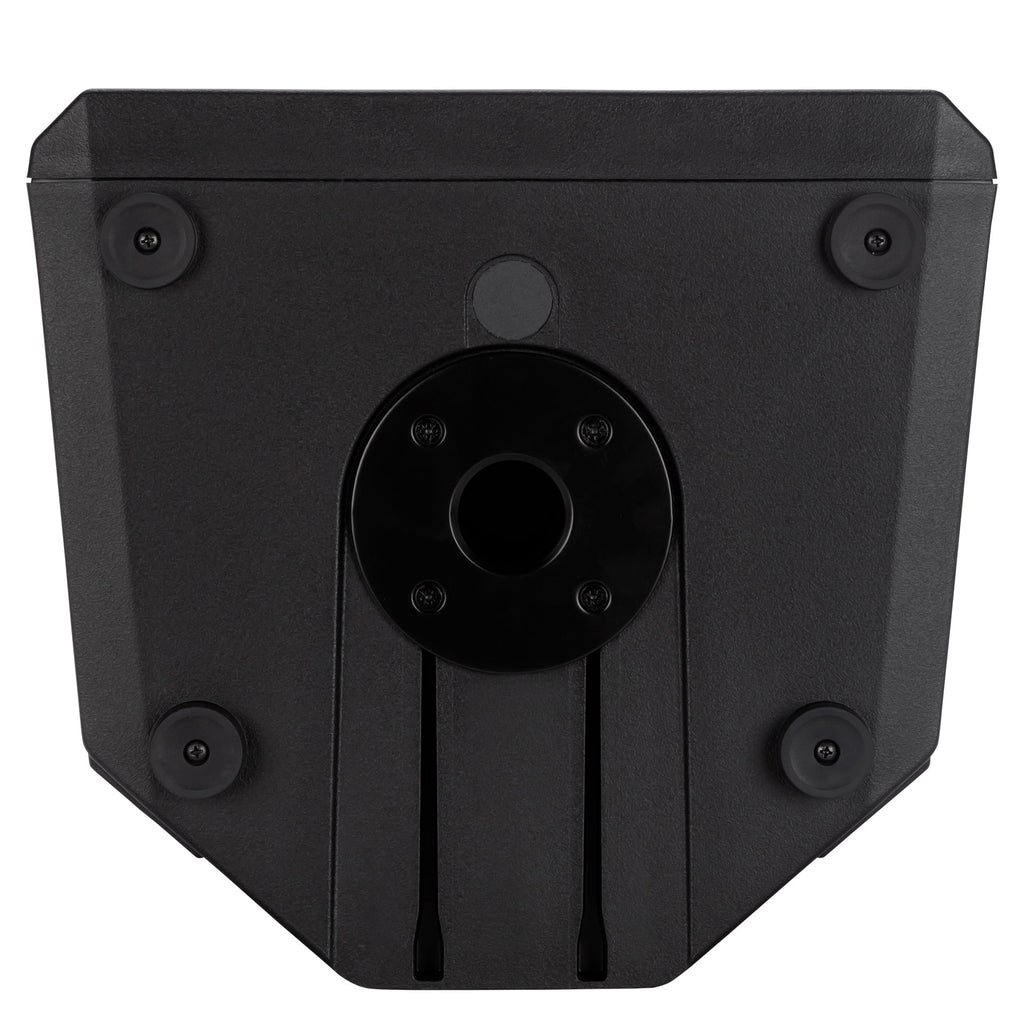

| Pole mount/Cap |
35 mm insert |

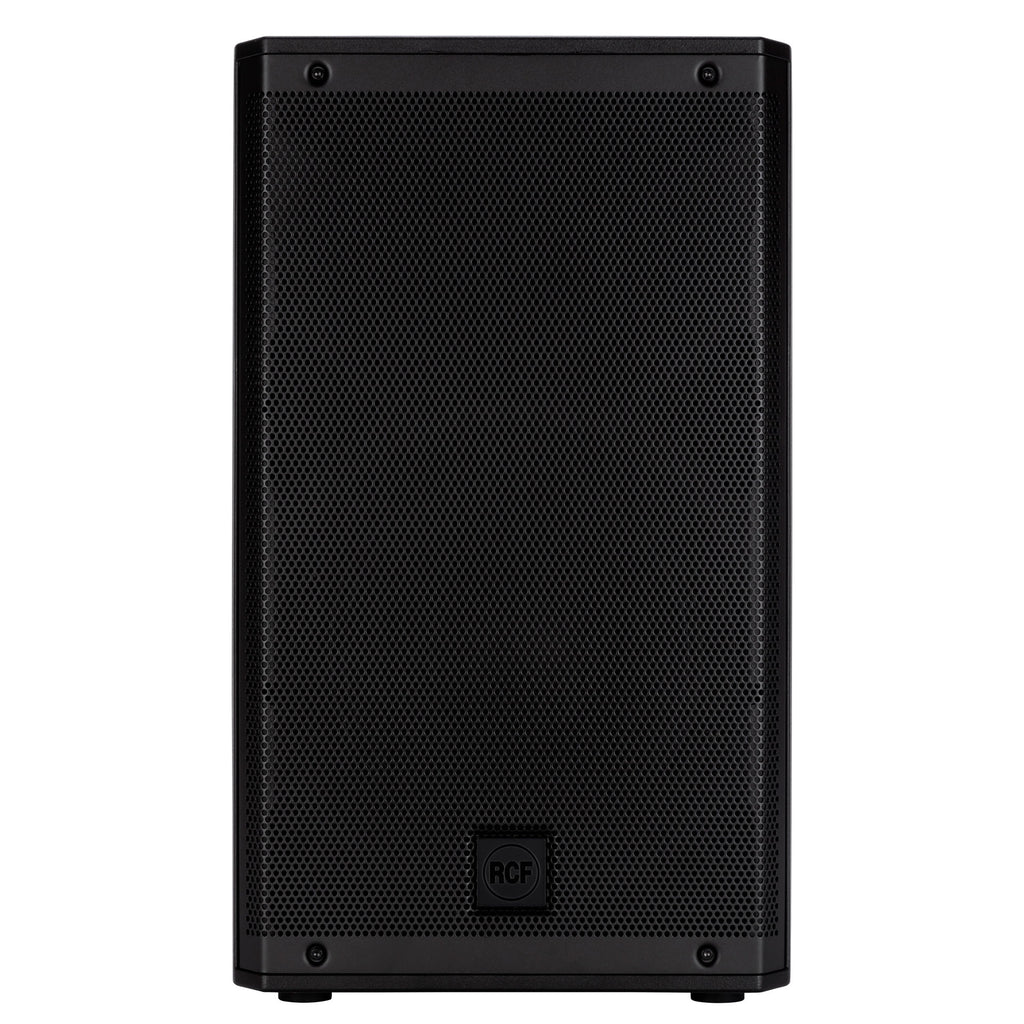

| Grille |
Steel |
| Color |
Black - RAL 9005 |
| Size / Weight |
| Height |
572.1 mm / 22.52 inches |
| Width |
329.9 mm / 12.99 inches |
| Depth |
310 mm / 12.2 inches |
| Weight |
16.2 kg / 35.71 lbs |
| Shipping information |
| Package Height |
616 mm / 24.25 inches |
| Package Width |
370 mm / 14.57 inches |
| Package Depth |
390 mm / 15.35 inches |
| Package Weight |
18.2 kg / 40.12 lbs |
