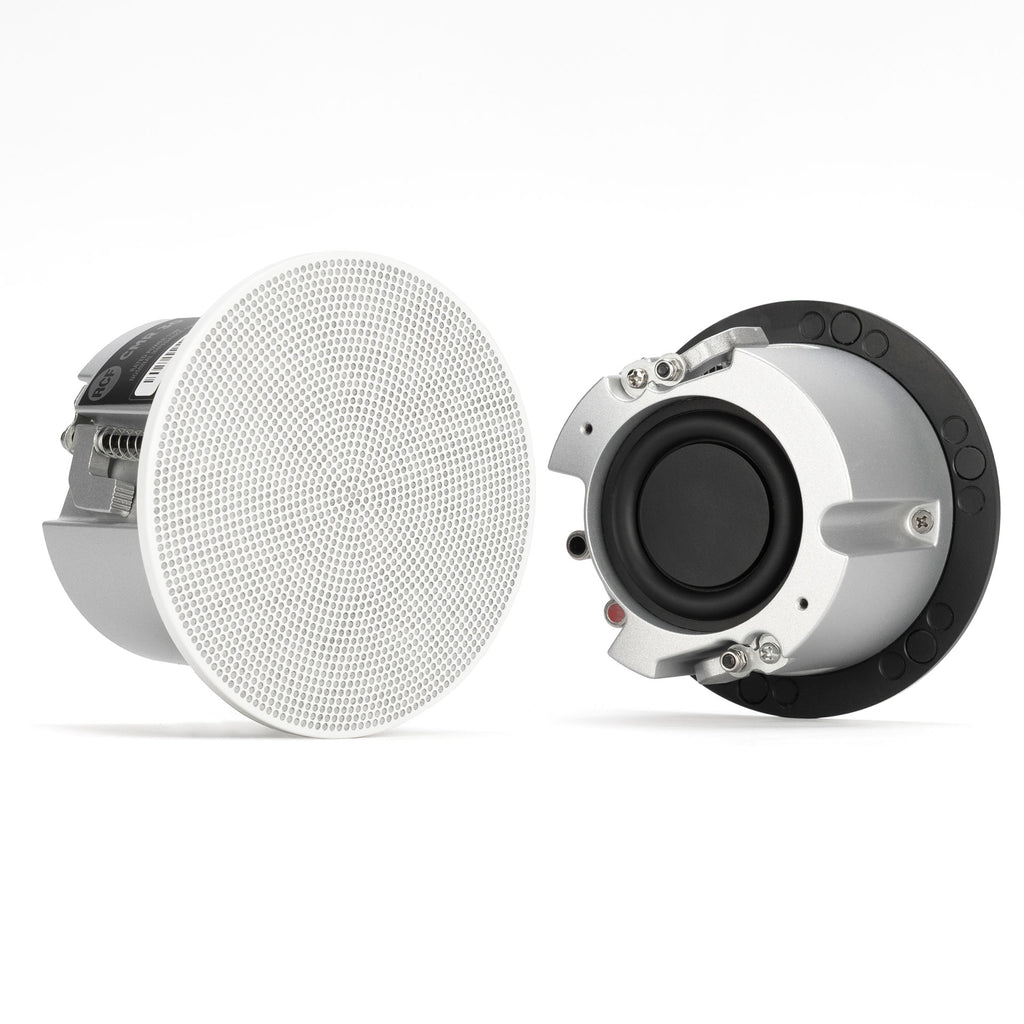

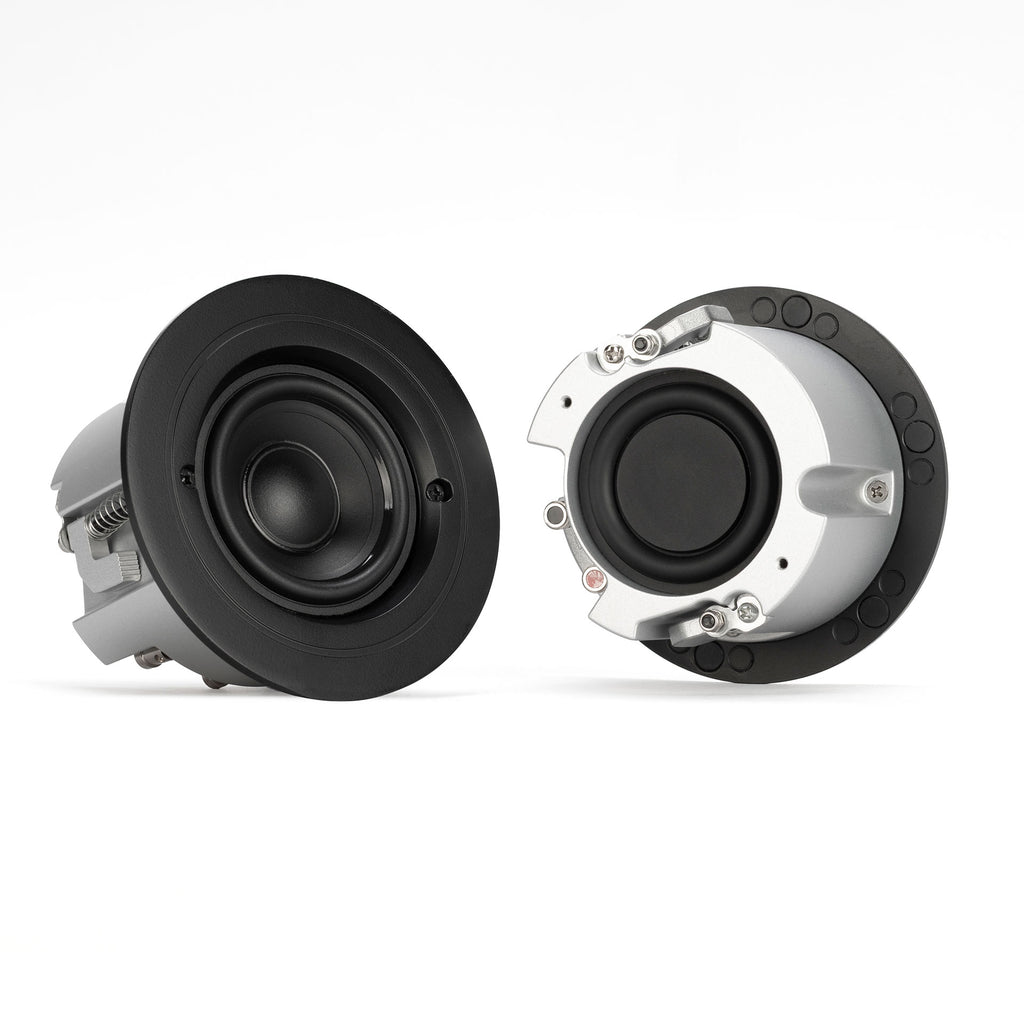

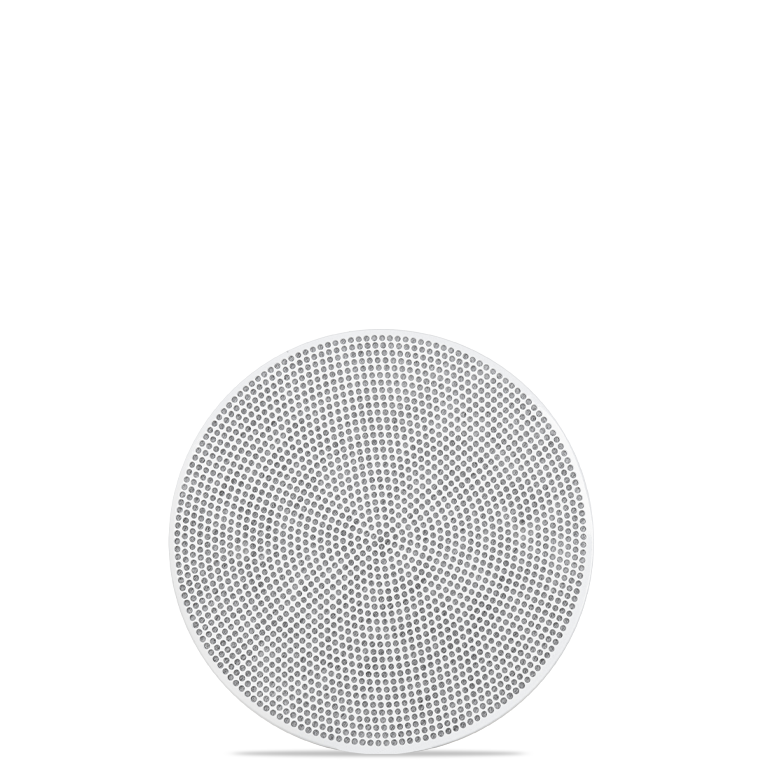

NEW | BUSINESS MUSIC | INSTALLED | CMR 30 | PAIR OF FULL-RANGE CEILING MONITOR SPEAKERS | 15W RMS power handling
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
104 dB |
| Coverage angle |
130° |
| System Sensitivity |
86 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
16 ohm |
| Power Handling |
15 W RMS |
| Peak Power Handling |
60 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P |
| Transducers |

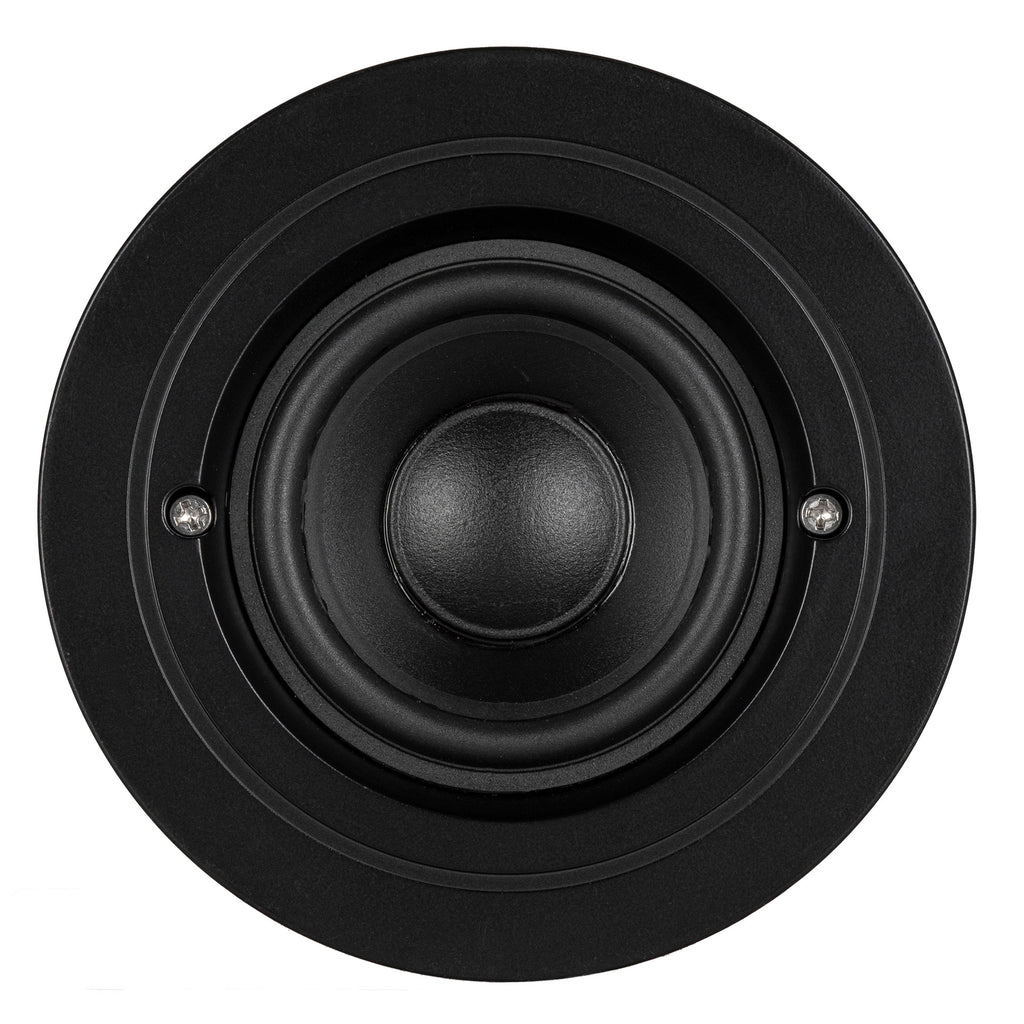

| Woofer |
1 x 2.5'' neo, 1.0'' v.c |
| Input/Output section |
| Input connectors |

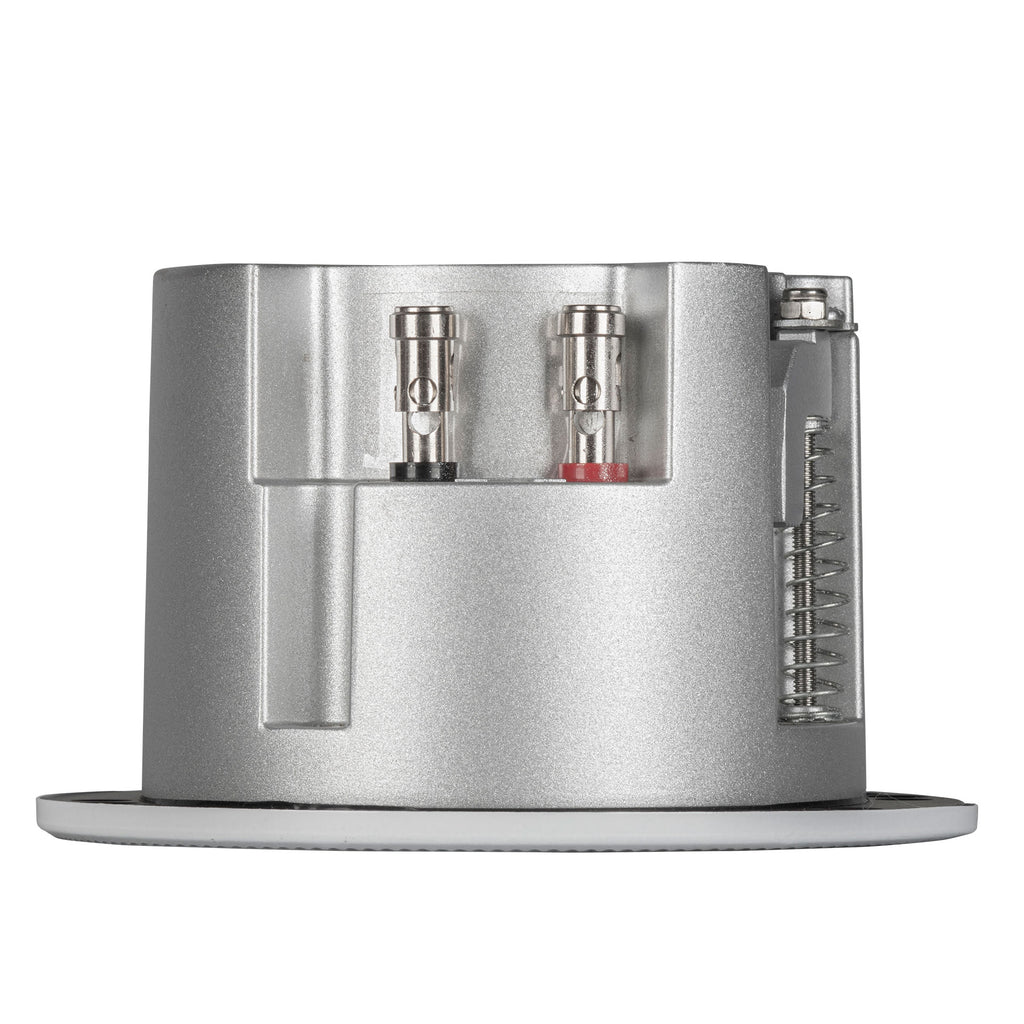

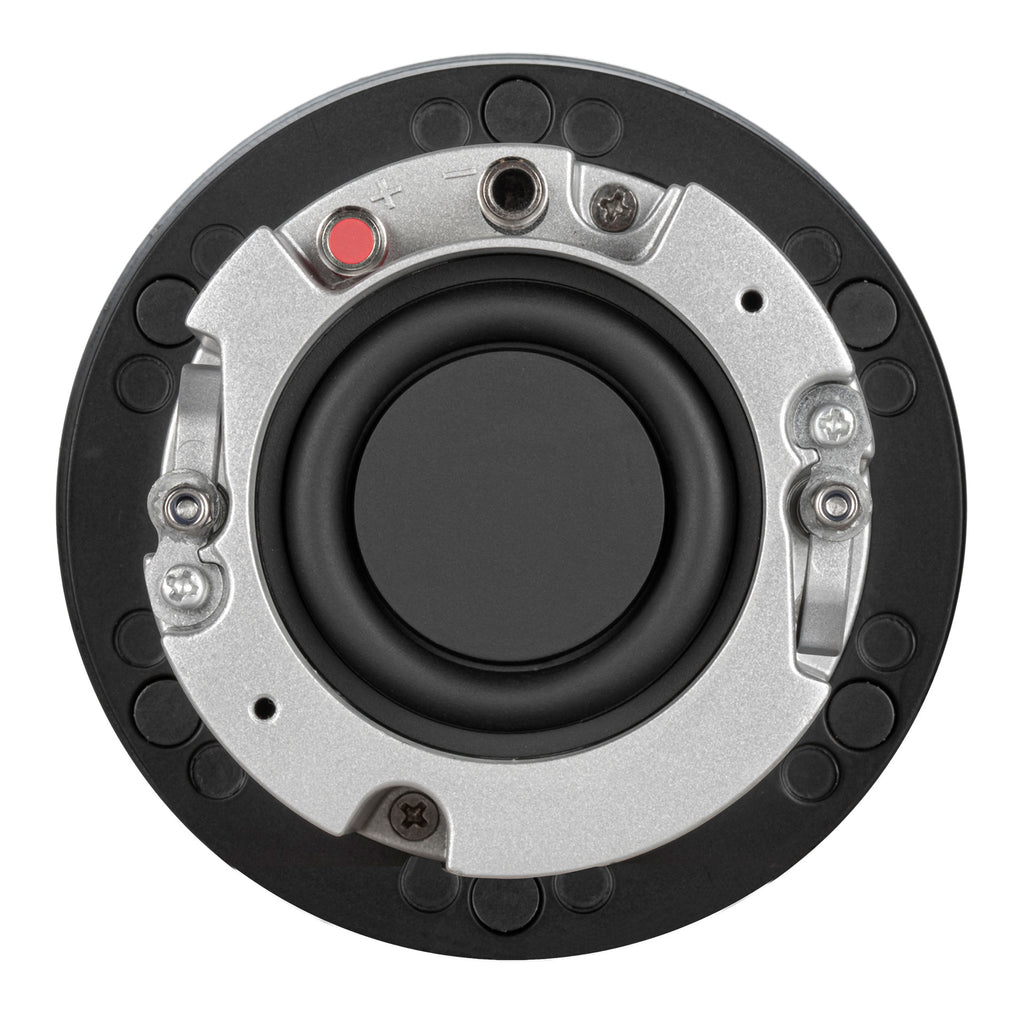

Push Type Terminals |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Aluminum |

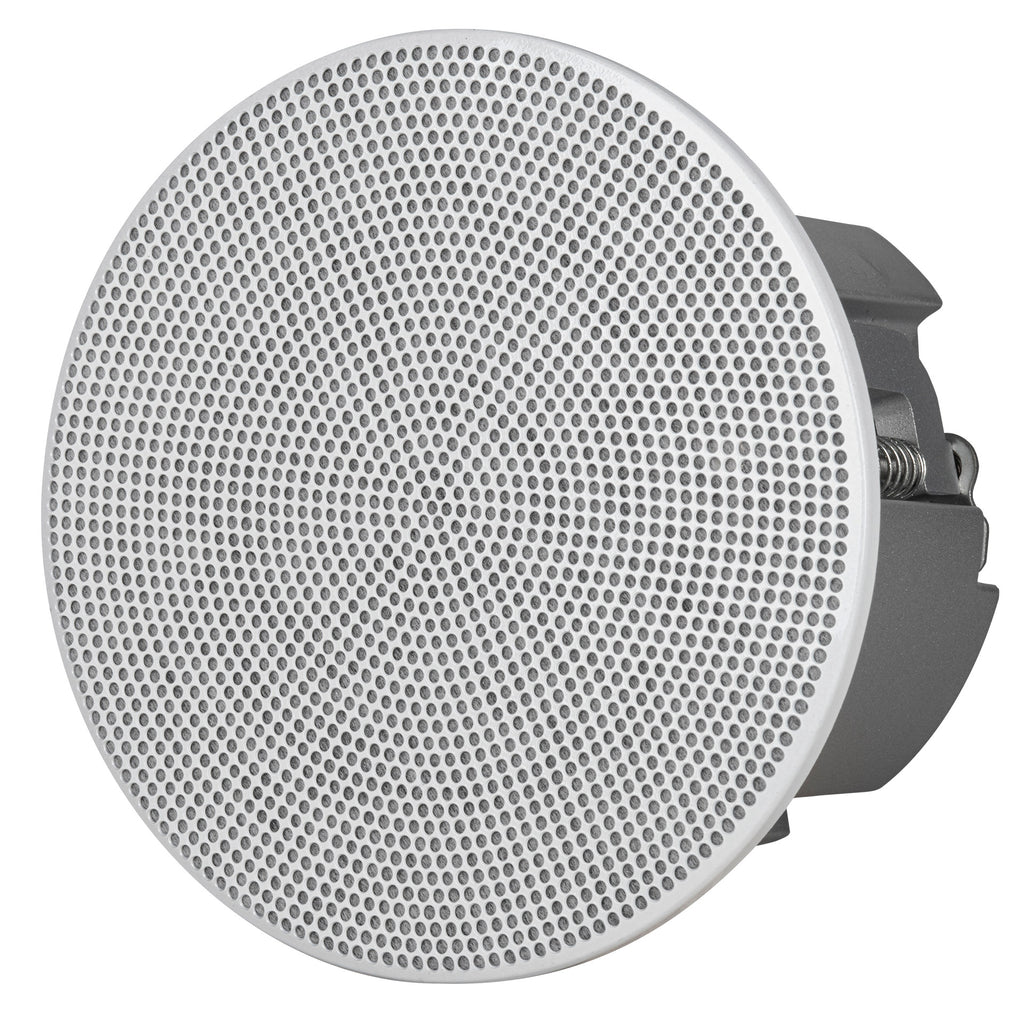

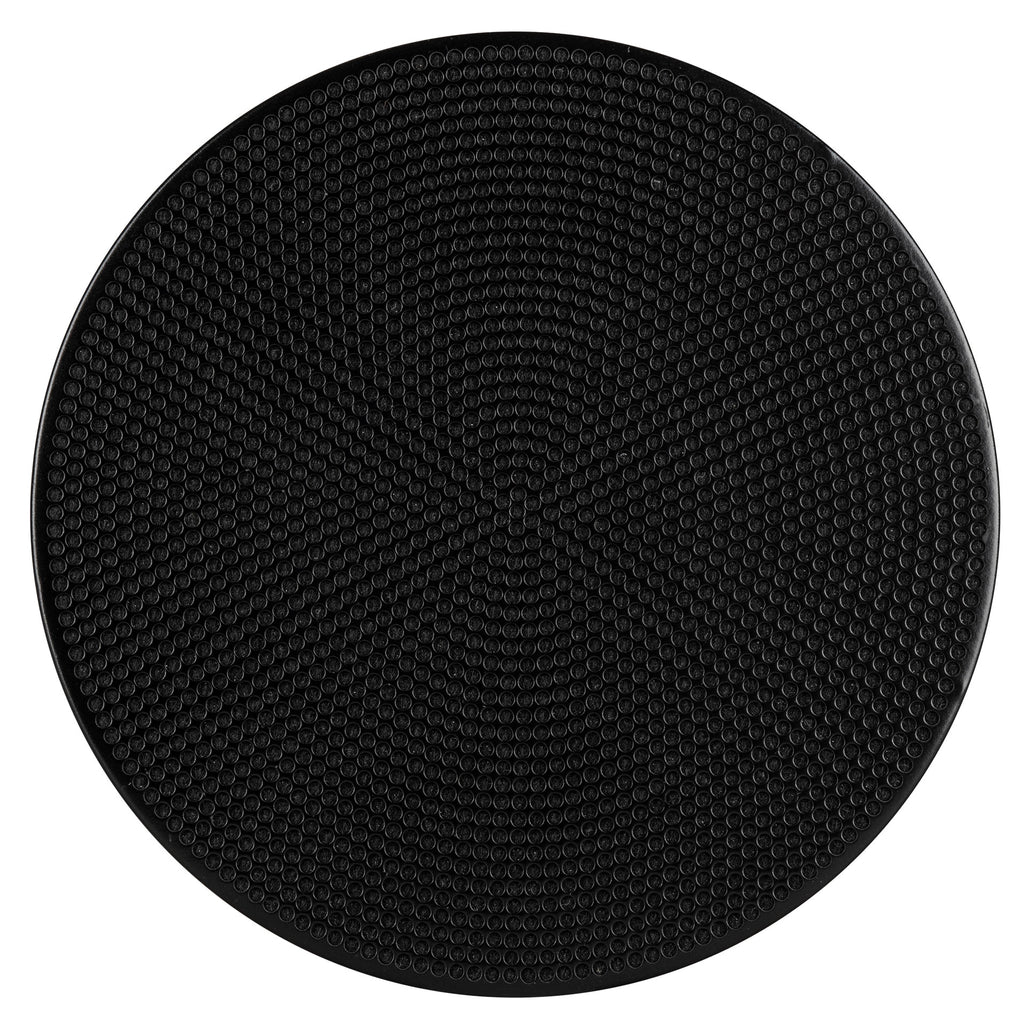

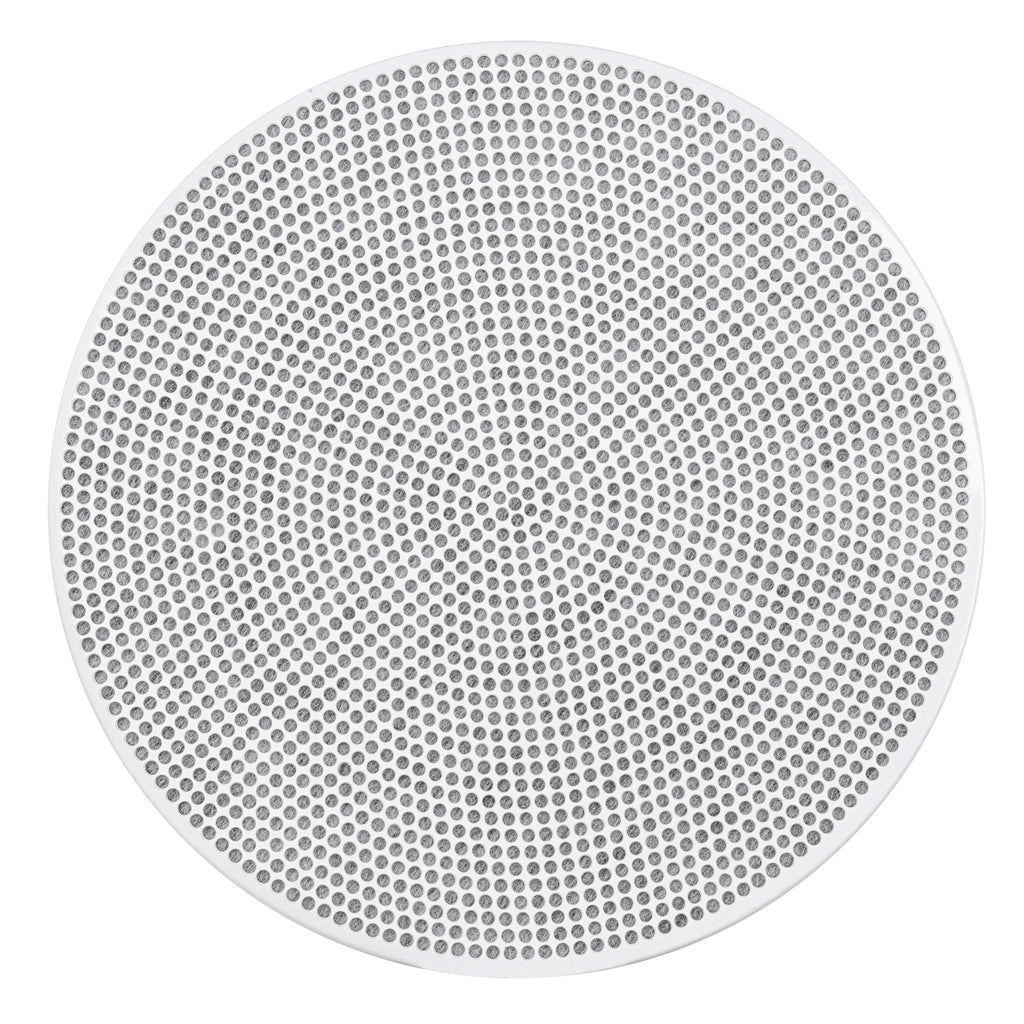

| Grille |
Stainless Steel |
| Size / Weight |
| Depth |
68 mm / 2.68 inches |
| Recessed Depth |
61 mm / 2.4 inches |
| Diameter |
109 mm / 4.29 inches |
| Cut out diameter |
86 mm / 3.39 inches |
| Weight |
0.37 kg / 0.82 lbs |
| Shipping information |
| Package Height |
115 mm / 4.53 inches |
| Package Width |
292 mm / 11.5 inches |
| Package Depth |
150 mm / 5.91 inches |
| Package Weight |
1 kg / 2.2 lbs |
