Description

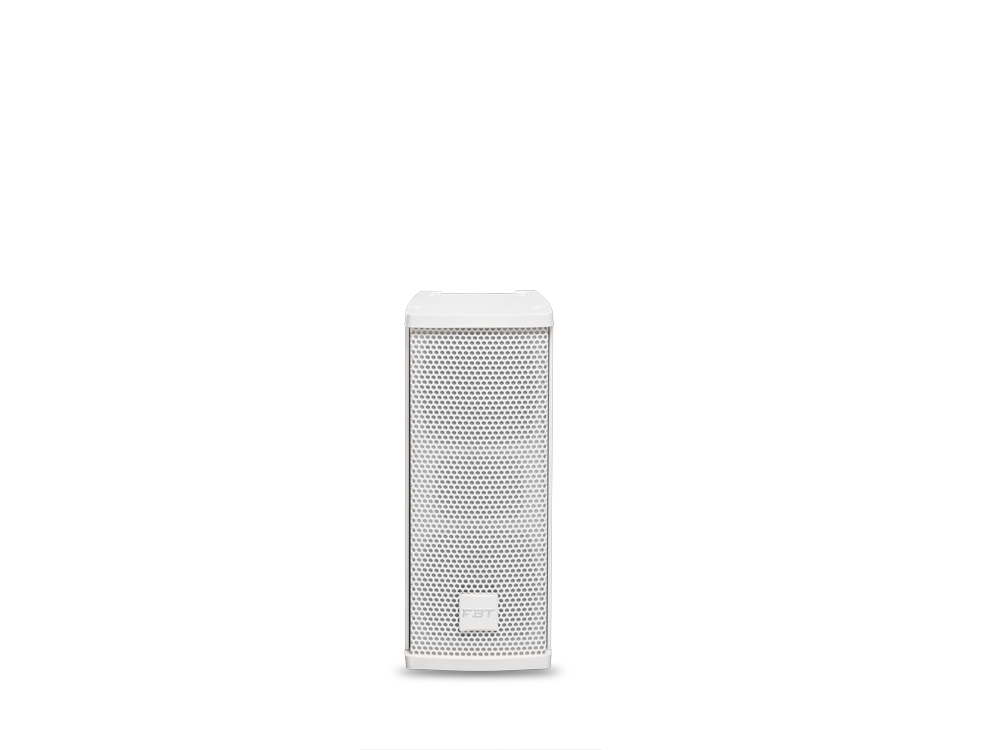

VERTUS CLA 203T is a passive 2-way column speaker designed for fixed indoor installations where compact dimensions, intelligibility, and design integration are key. It incorporates two custom 3″ woofers with 0.75″ voice coils and a 1″ neodymium dome tweeter, housed in an extruded aluminum enclosure available in black or white finish.
The speaker includes a switchable 70V/100V transformer with power taps at 30/20/10/5W, as well as an 8 Ohm low-impedance input. Connections are made via ceramic screw-terminal block with IN & through wiring. CLA 203T is IP55-rated and EN 54-24 certified, making it suitable for voice alarm and emergency systems.
With 160 Hz–20 kHz frequency response and SPL of 101 dB, it ensures full-range coverage for speech and background music applications. Four rear fixing points support horizontal or vertical mounting using the optional WM-23 directional bracket
Technical Specifications
| Code | 45510 (Black) / 45351 (White) |
| Configuration | 2 way |
| Recommended amplifier | 60W RMS |
| Long Term power | --- |
| Short term power | --- |
| Nominal impedance | 8Ohm |
| Frequency response | 160Hz - 20KHz @-6dB |
| Low Frequency woofer | 2 x 3'' - 0.75'' VC |
| High frequency driver | 1'' dome |
| Sensitivity (@1W/1m) | 87 |
| Maximum SPL cont/peak | 101/89 (@1W/1m) |
| Dispersion | 120°x110° HxV (2kHz) |
| Crossover Frequency | --- |
| Recommended HP filter | 140hz - 24dboct |
| Recommended external filter | --- |
| Input connector | ceramic screw bloc |
| Net Dimension (WxHxD) | 100 x 249 x 125mm / 3.9 x 9.8 x 4.9 inch |
| Net Weight | 1.5 Kg / 3.3 lb |
