Description

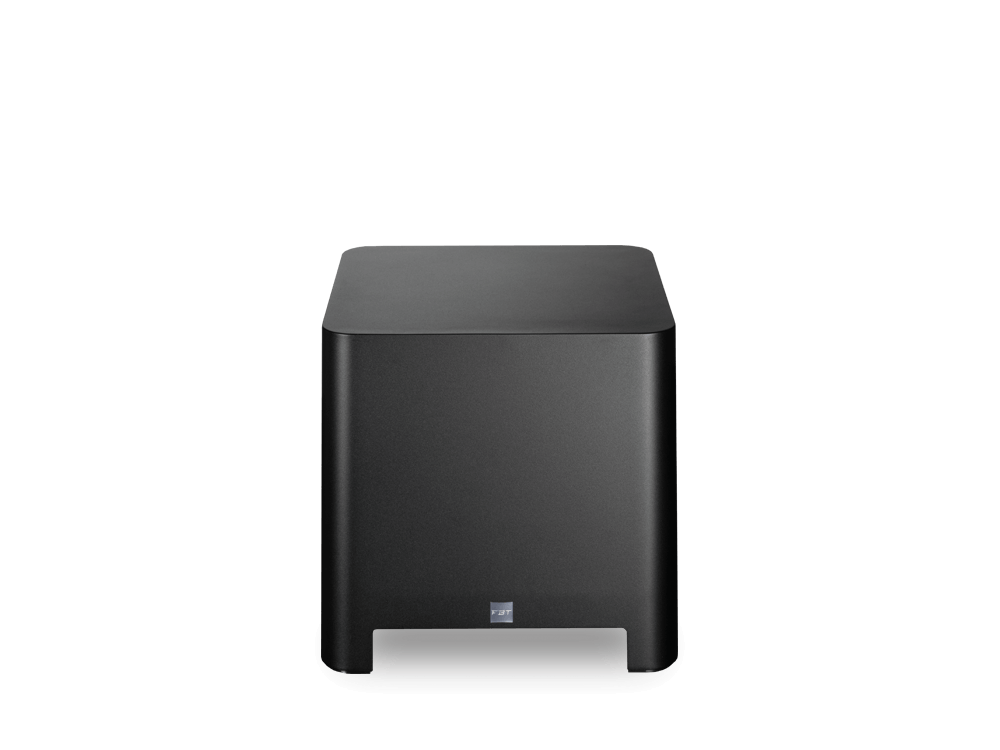

VERTUS CLA 112S is a passive subwoofer specifically designed to extend the low-frequency response of the VERTUS CLA series. Compact yet powerful, it features a custom 12″ woofer with 2.5″ voice coil, housed in a low-profile aluminum cabinet suitable for visible or discreet installation. With 600W RMS recommended amplification, the CLA 112S delivers clean and dynamic low-end, reaching up to 130 dB SPL.
The enclosure includes a 4-pin barrier terminal block for input and link connections, and supports external DSP filtering (no internal crossover). A recommended 35 Hz high-pass filter with 24 dB/oct slope ensures optimal performance. It is IP55-rated for outdoor installation and available in black or white (custom RAL upon request). CLA 112S can be ground-stacked with optional safety pins and used in applications ranging from corporate venues to houses of worship.
Technical Specifications
| Code | 46116 (Black) - 46115 (White) |
| Configuration | 1 way |
| Recommended amplifier | 600W RMS |
| Long Term power | 300W |
| Short term power | 1200W |
| Nominal impedance | 8Ohm |
| Frequency response | 28Hz preset dependant @-6dB |
| Low Frequency woofer | 12'' - 3'' VC |
| Maximum SPL cont/peak | 127 / 130dB |
| Dispersion | Omnidirectional |
| Crossover Frequency | --- |
| Input connector | Euroblock in & throu |
| Net Dimension (WxHxD) | 400 x 410 x 400 mm / 15.7 x 16.14 x 15.7 inch |
| Net Weight | 25 Kg / 55.1 lb |
| Transport Dimension (WxHxD) | 465 x 475 x 460 mm / 18.3 x 18.7 x 18.1 inch |
| Transport Weight | 27.5 Kg / 60.6 lb |
