Description

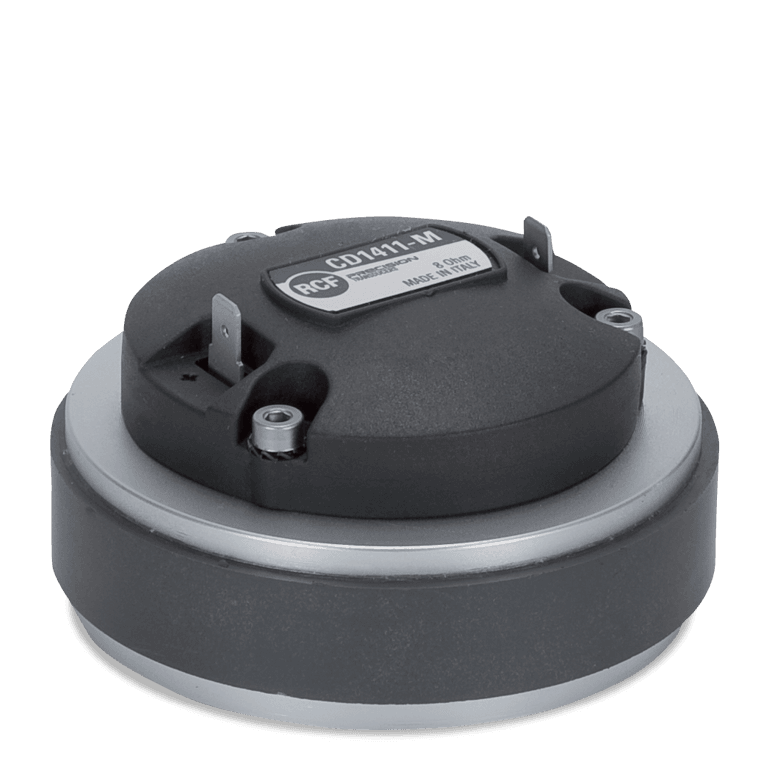

The CD1411-M is a high performance 1.5-inch diaphragm compression driver with a 1.0 inch exit throat featuring a single piece, low compression, radial phase plug. The diaphragm and suspension are precision formed from Mylar. The CD1411-M is a very compact size, versatile driver for professional applications.
Features
- 1.5-inch Diaphragm, 1-inch Exit Throat
- 50W continuous program power handling
- Frequency range: 1500Hz - 20kHz
- Optimized geometry radial phase plug
- Very compact size for array applications
- Ceramic magnet assembly
- Mylar diaphragm assembly
Specifications
| General specifications | |
| Exit Throat Diameter | 1.0 inch / 25 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 50 W |
| Power handling capacity | 25 W |
| Sensitivity | 108 dB |
| Frequency range | 1500 - 20000 Hz |
| Diaphragm Material | Mylar |
| Suspension Material | Mylar |
| Suspension Design | Radial |
| Minimum Impedance (ohm) | 7.00 ohm |
| Voice Coil Diameter | 1.5 inch / 38 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Straight - Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 1.6 T |
| Phase Plug Design | 10 radial slots |
| Phase Plug Material | PP Composite |
| Magnetics | Ceramic |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 4.00 T x m |
| Mounting information | |
| Overall diameter | 91 mm / 3.58 inches |
| Overall height | 51 mm / 2.01 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 0.95 kg / 2.09 lbs |
| Shipping information | |
| Package Height | 65 mm / 2.56 inches |
| Package Width | 111 mm / 4.37 inches |
| Package Depth | 113 mm / 4.45 inches |
| Package Weight | 1.09 kg / 2.4 lbs |
