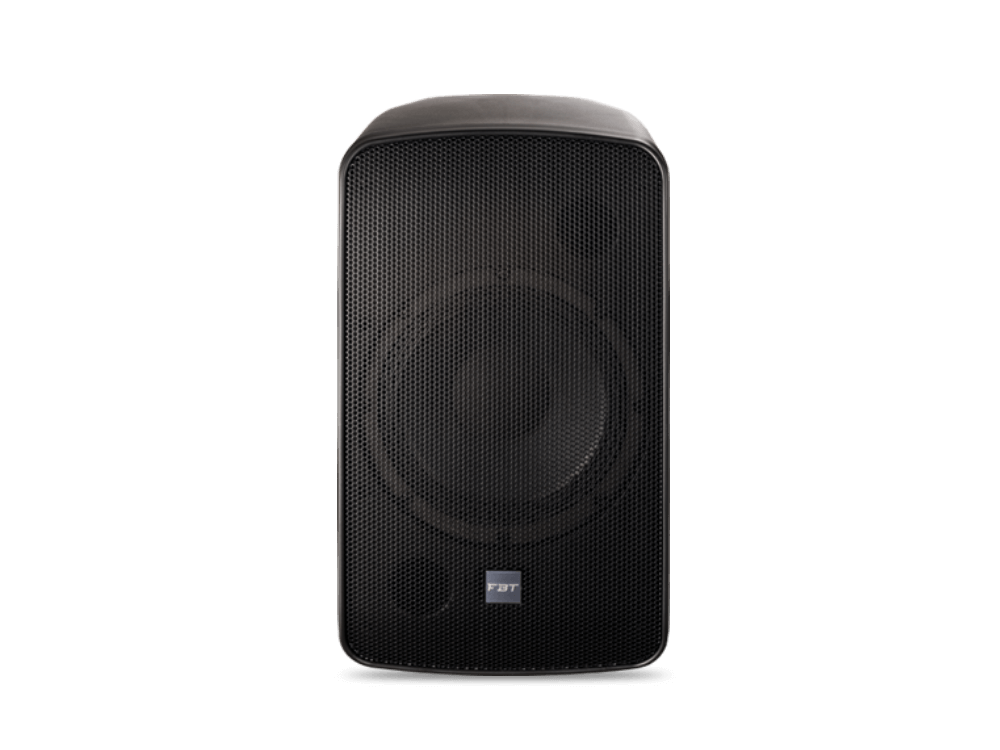

CANTO 5CA is a compact active two-way coaxial loudspeaker designed for fixed installations where performance, flexibility, and ease of integration are essential. Housed in a sleek enclosure available in black or white, the CANTO 5CA combines elegant aesthetics with professional-grade features. It incorporates a 5” coaxial woofer and a 1” compression driver, delivering 90° horizontal and vertical dispersion.Powered by an internal Class D amplifier delivering 100W to the LF section and 50W to the HF, the system achieves a frequency response of 70 Hz to 20 kHz. An integrated DSP provides dynamic equalization, protection circuits, and four selectable presets for acoustic versatility.Additional features include volume control, high-pass filter, automatic standby, and a status LED for operational monitoring. Connectivity is offered via XLR IN and LINK loop output. Installation options include a 25mm pole mount and a dedicated wall bracket with adjustable horizontal tilt.
Technical Specifications
| Code |
45509 (Black) - 44889 (White) |
| Configuration |
2 way coaxial |
| Built-in amplifier LF/HF |
200-100W / 100-50W RMS |
| Frequency response |
70Hz - 20KHz -6dB |
| Low frequency woofer |
5'' - 1.5'' coil |
| High Frequency driver |
1'' - 1'' coil |
| Maximum SPL cont/peak |
114 / 117 dB |
| Dispersion |
90° conical |
| Input impedance |
22 kOhm |
| Input connector |
XLR with loop |
| Power cord |
5 m / 16.4 inch |
| Net Dimension (WxHxD) |
160 x 276 x 170 mm / 6.3 x 10.8 x 6.7 inch |
| Net Weight |
3.2 Kg / 7 lb |
| Transport Dimension (WxHxD) |
225 x 360 x 215 mm / 8.86 x 14.17 x 8.46 inch |
| Transport Weight |
4 Kg / 8.8 lb |
