Description
Comprehensive channel facilities including 2 band EQ and auxiliary

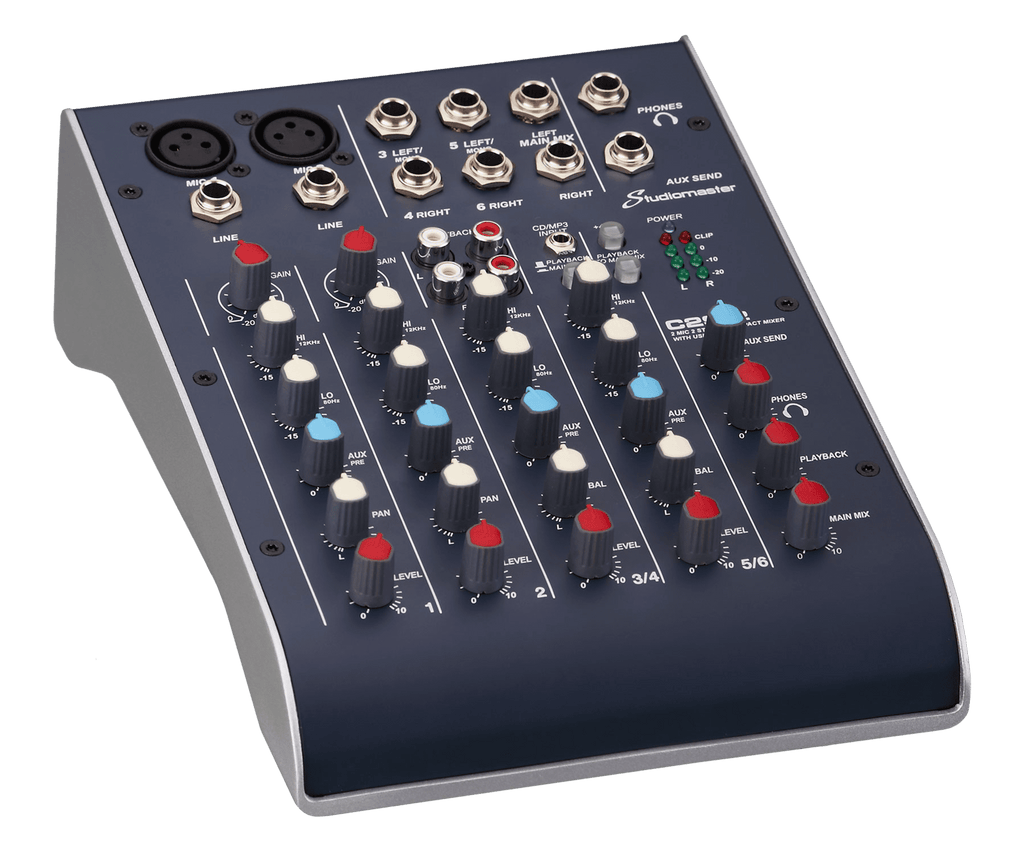

The C2 Series are an ultra compact high quality mixer series, offering comprehensive features normally found on larger consoles in an attractive compact moulded case.
All units feature 2 band eq on all channels, auxiliary for external effects processors, pan/balance control, and input gain and level controls. The output section is equally comprehensive with stereo output on ¼” jacks, playback / record on both RCA phono and USB (on C2S models), bargraph metering and headphone output.
Perfect for many applications, including home recording, live mixing, location mixing, commercial/corporate uses and many other applications where an ultra compact mixing console is required.
Key Features
- key features
- overview
- Gallery
- specification
- resources
- where to buy
Technical Specifications
| Channels | 6 |
| Mic Inputs | 2 |
| Stereo Inputs | 4 |
| Frequency Response | 20Hz-20kHz (+/-1dB) |
| Distortion | <0.08% @ -10dBu |
| Residual Noise | <-98dB |
| Mic Gain Range | 0dB to +45dB |
| Line Gain Range | -20dB to +25dB |
| Input Impedance - Line | 20k ohm balanced |
| - Playback+ CDMP3 | 24k ohm unbalanced |
| Crossover frequency | 120Hz |
| EQ Hi | +/-15dB @ 12kHz |
| EQ Lo | +/-15dB @ 80Hz |
| Main Mix Output | Main Mix Output |
| Aux Send Output | Main Mix Output |
| Record out Impedance | 1k ohm |
| Headphone out Impedance | 25k ohm |
| USB | 2 channel playback/record |
| Power Supply | Wall adaptor 100-240V ~ 50/60Hz |
| Dimension (W × H × D) | 244mm x 165mm x 75mm |
