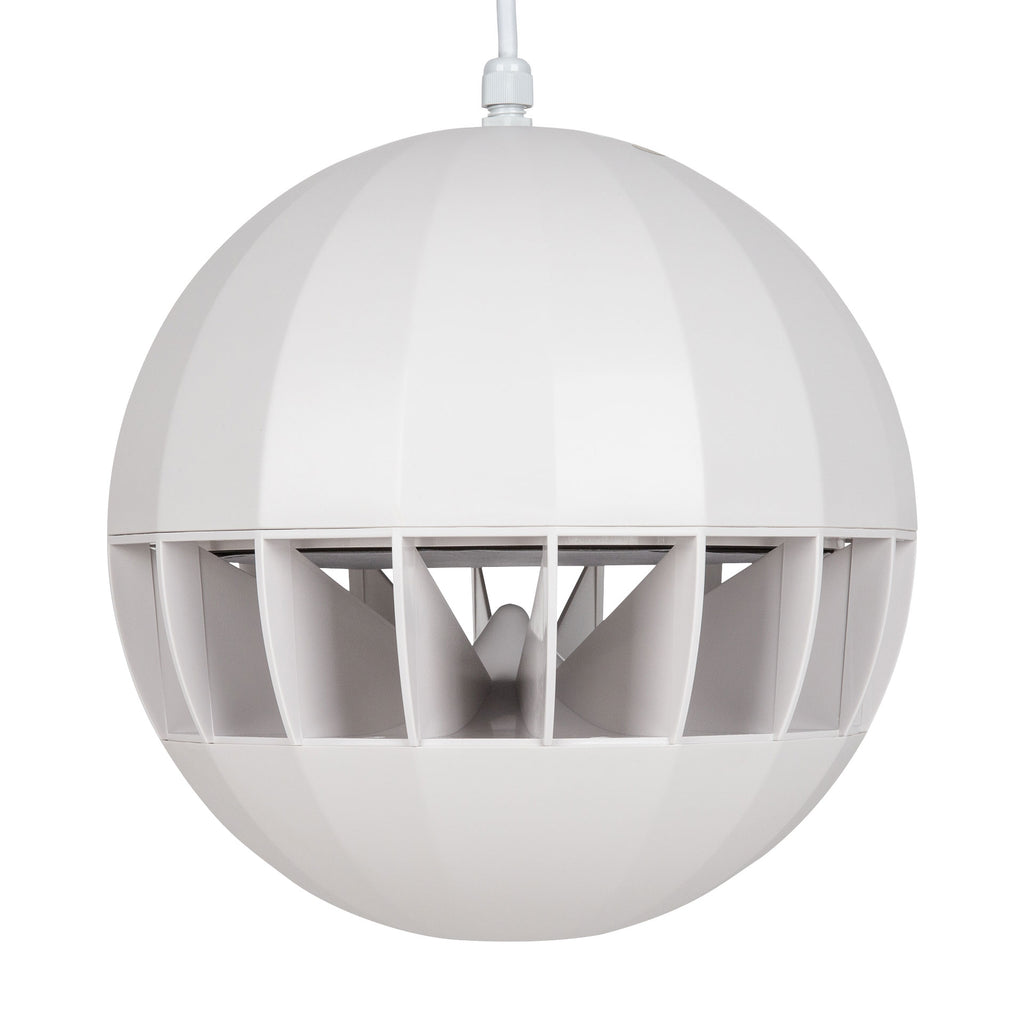

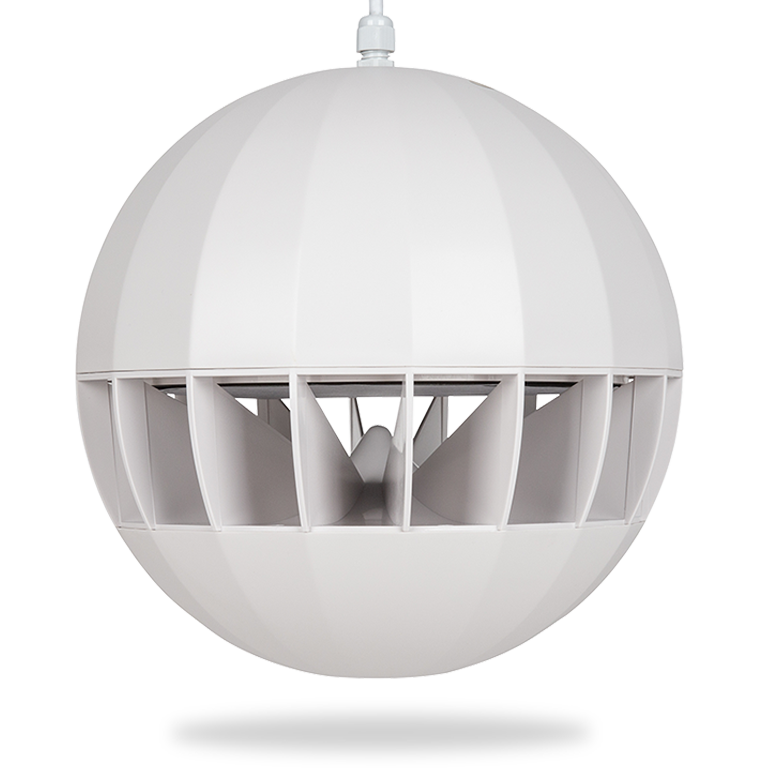

COMMERCIAL | BS 8 | PENDANT SPEAKER | 8" dual cone wide band woofer | Power selectable (100 V): 20 W – 10 W – 5 W | 93 dB sensitivity
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
160 Hz - 12500 Hz |
| Max SPL @ 1m |
106 dB |
| Horizontal coverage angle |
360° |
| System Sensitivity |
93 dB |
| Power section |
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
| Transducers |
| Woofer |
1 x 8'' |
| Input/Output section |
| Input connectors |
Cable |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 20 W - 500 ohm |
Power selection 2 |
| 10 W - 1000 ohm |
Power selection 3 |
| 5 W - 2000 ohm |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plastic |
| Hardware |

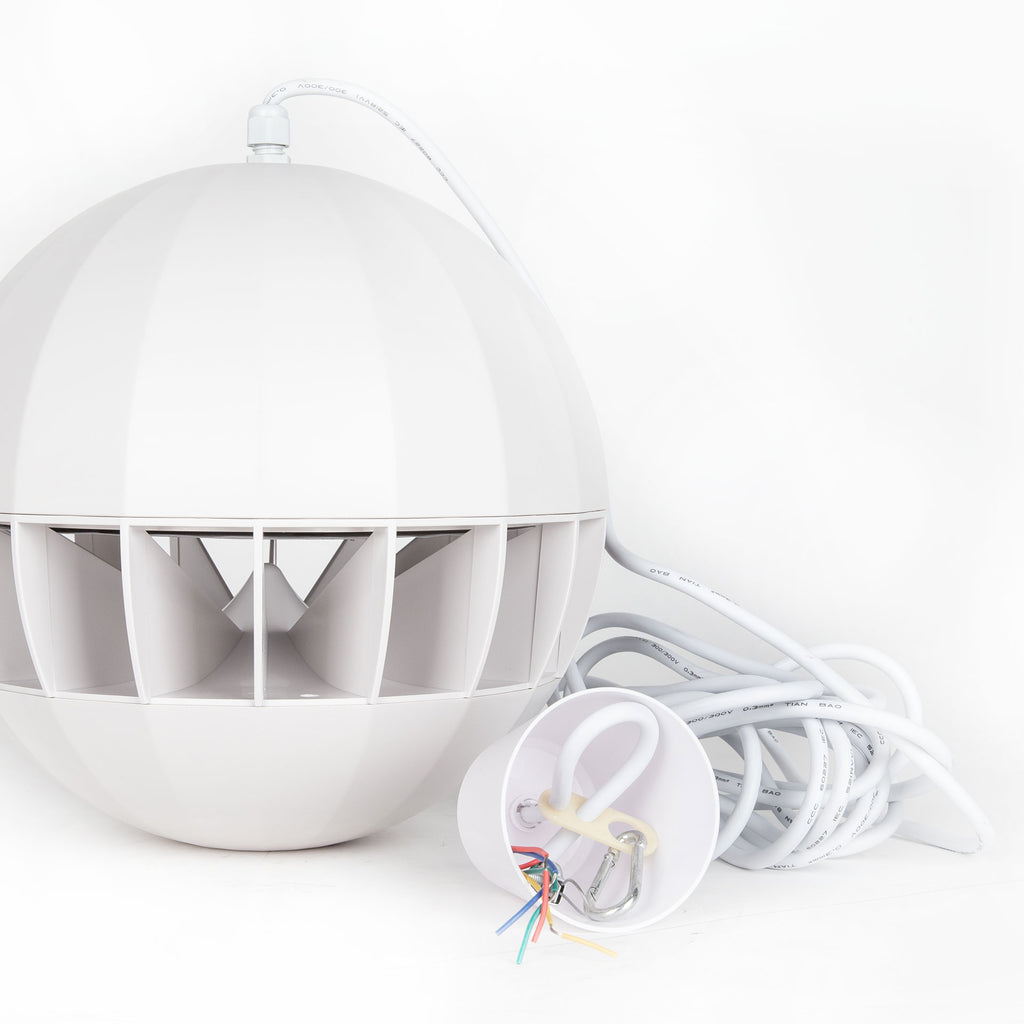

Carabiner and safety steel wire |
| Grille |
Color |
| White - RAL 9010 |
| Size / Weight |
| Height |
240 mm / 9.45 inches |
| Diameter |
250 mm / 9.84 inches |
| Weight |
2.3 kg / 5.07 lbs |
| Shipping information |
| Package Height |
300 mm / 11.81 inches |
| Package Width |
315 mm / 12.4 inches |
| Package Depth |
Package Weight |
| 3.55 kg / 7.83 lbs |
