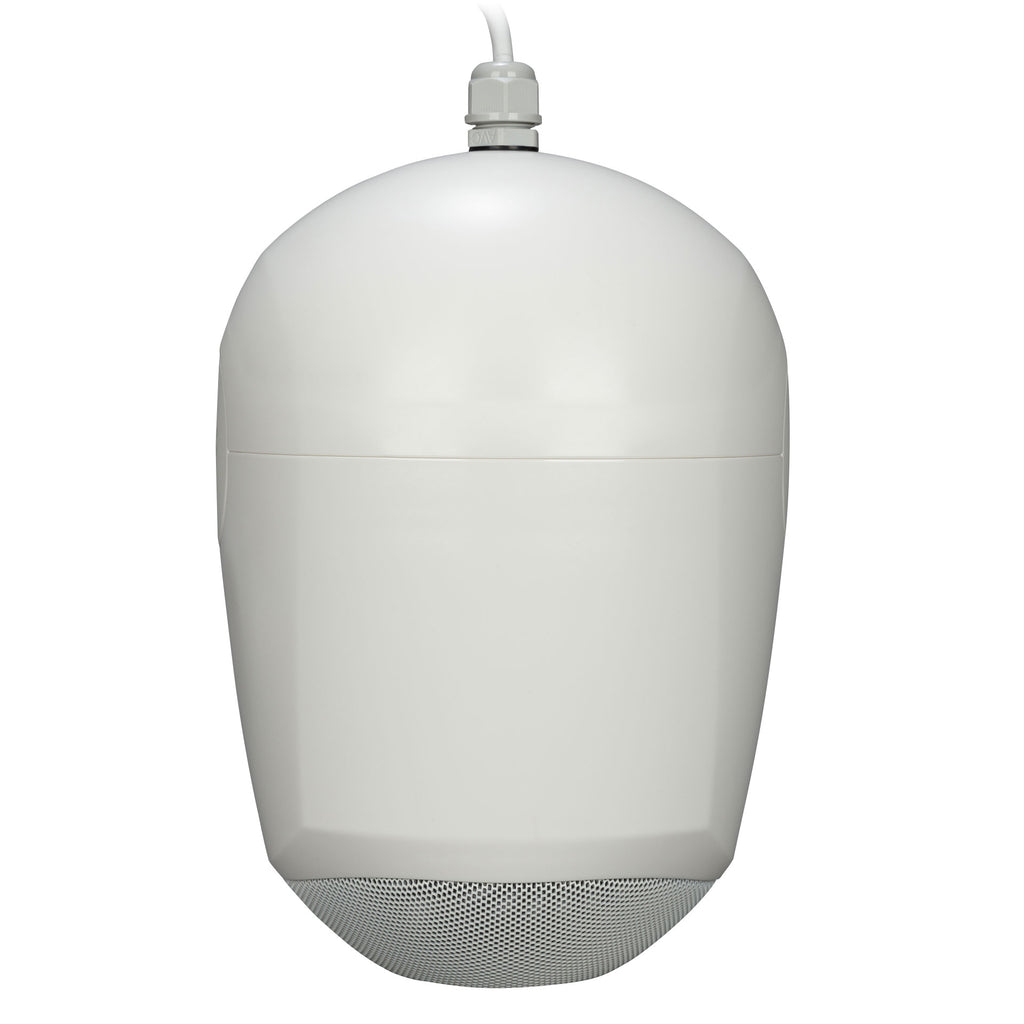

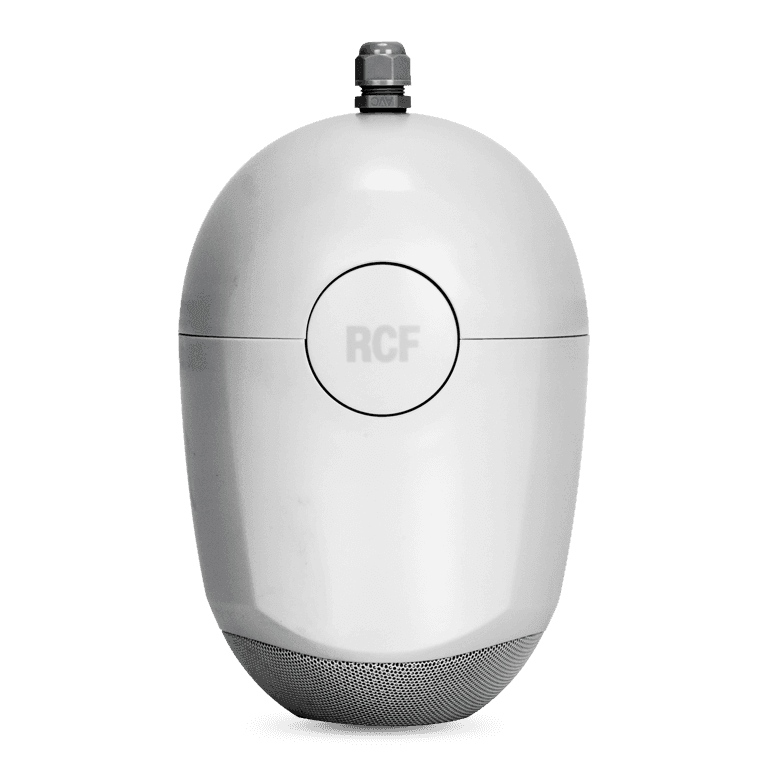

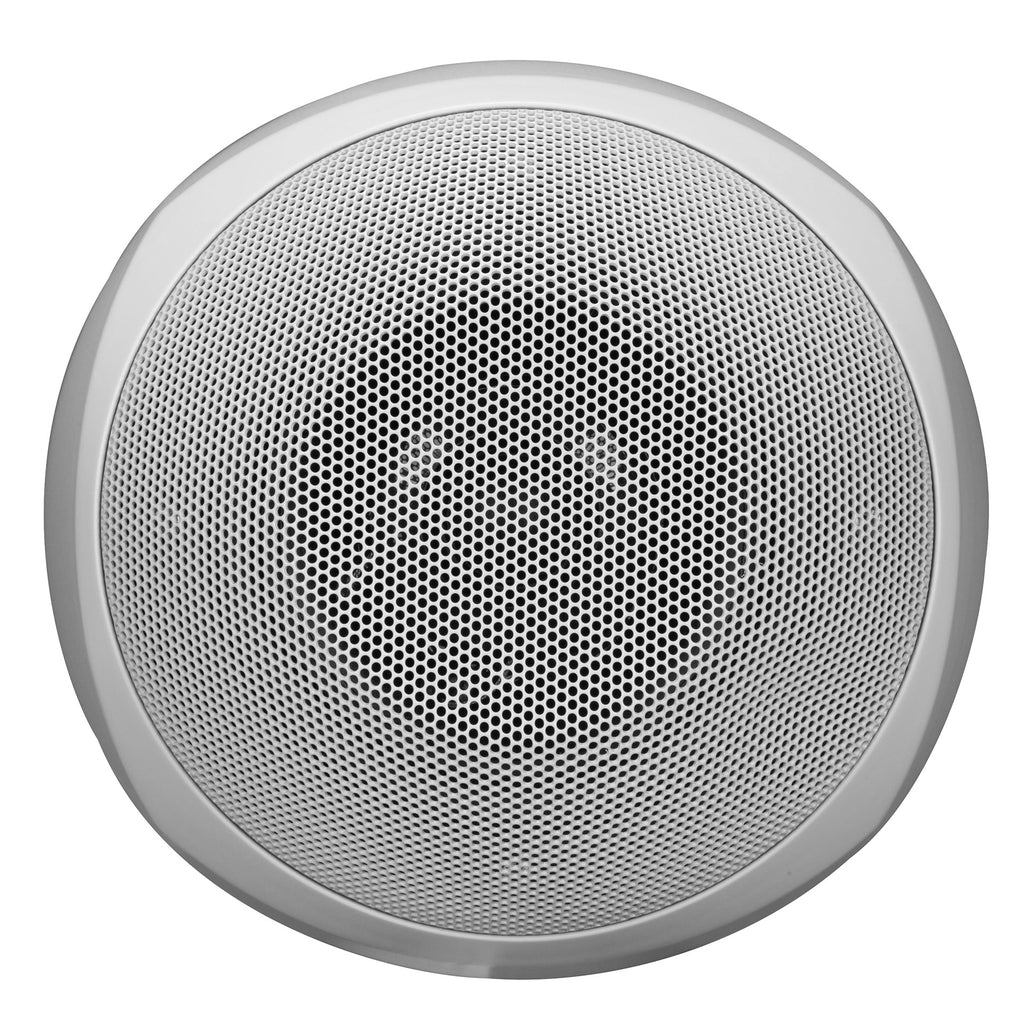

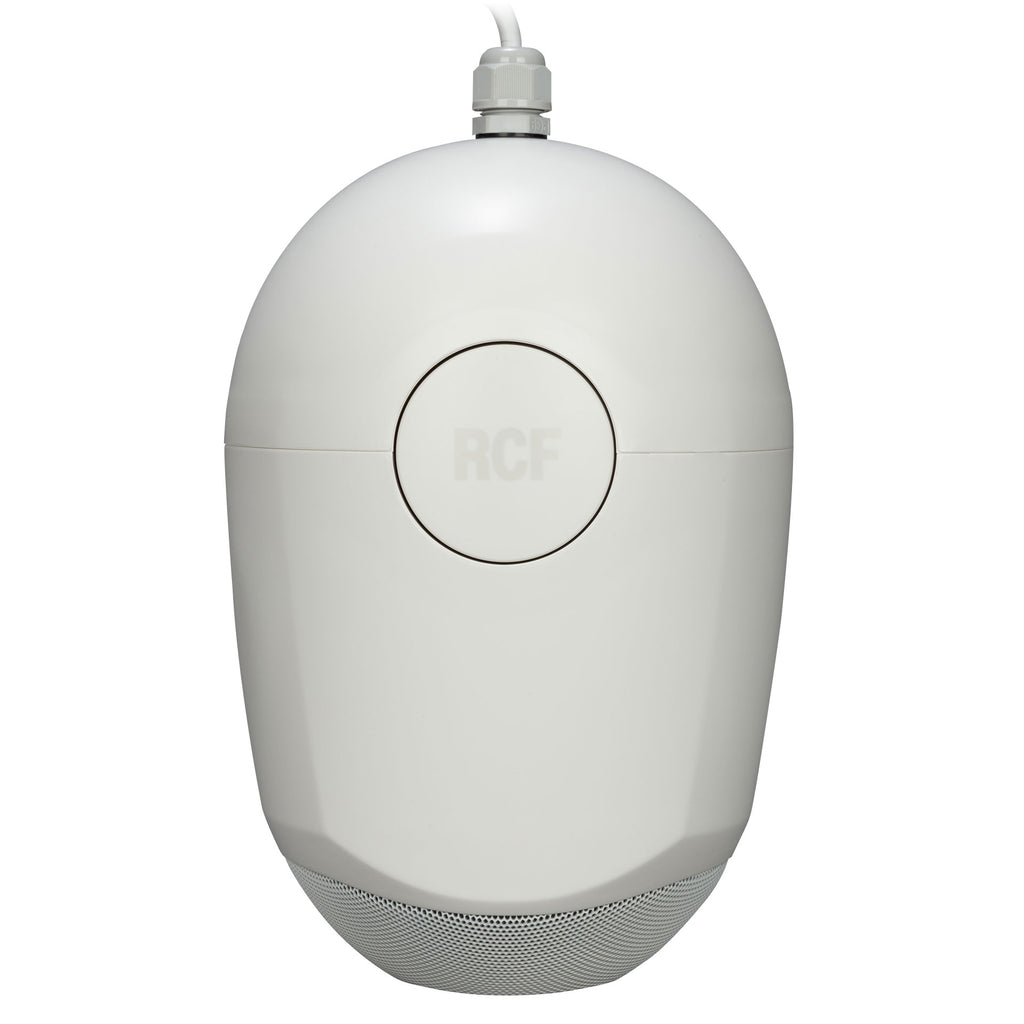

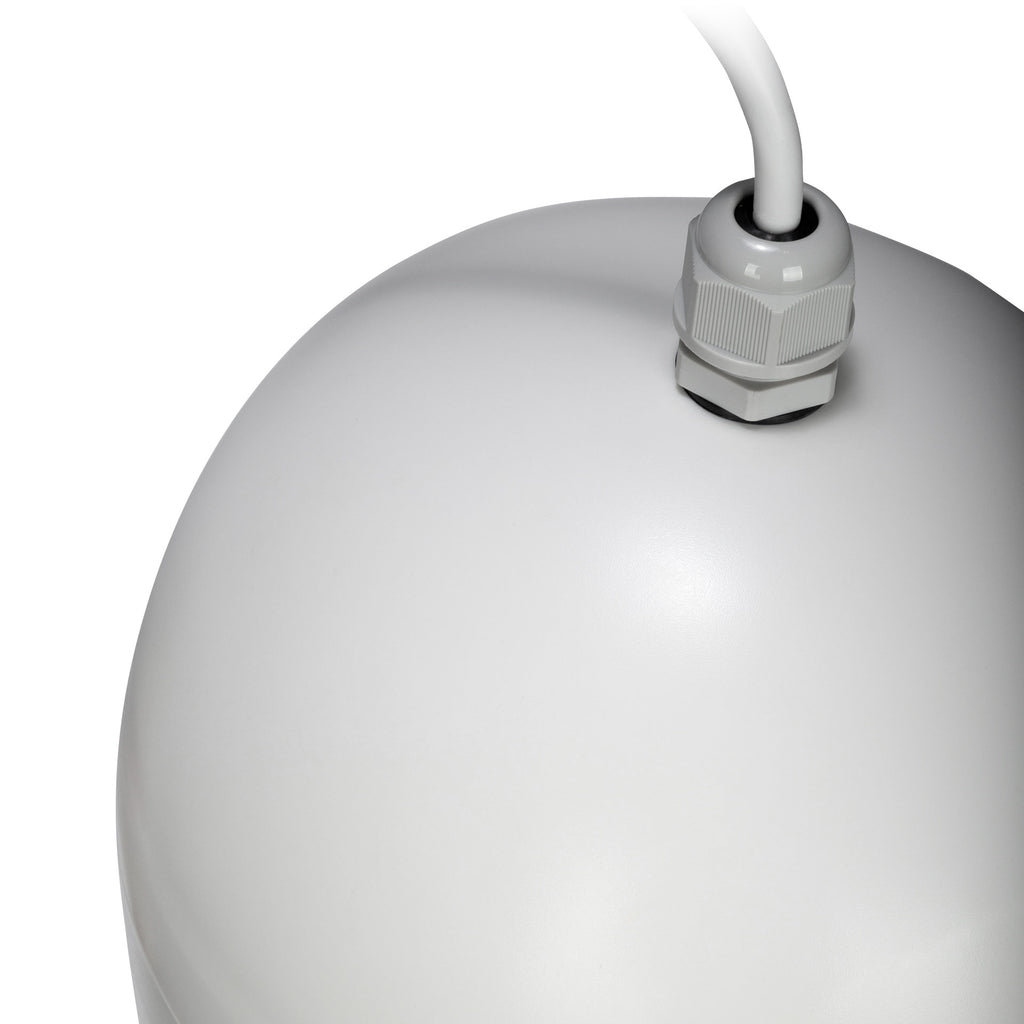

VOICE ALARM EN54 | COMMERCIAL | BUSINESS MUSIC | INSTALLED | BS 5EN | PENDANT SEPAKER
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
80 Hz - 20000 Hz |
| Max SPL @ 1m |
101 dB |
| Max SPL @ 4m |
89 dB |
| Coverage angle |
170° |
| System Sensitivity |
88 dB |
| System Sensitivity 1W @ 4m |
76 dB |
| Power section |
| Amplification |
Full Range |
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
| Protections |
Thermal fuse |
| Transducers |
| Dome Tweeter |
1 x 0.75'' |
| Woofer |
1 x Coaxial 5.0'' |
| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 20 W - 500 ohm |
Power selection 2 |
| 10 W - 1000 ohm |
Power selection 3 |
| 5 W - 2000 ohm |
Power selection 4 |
| 2.5 W - 4000 ohm |
| Standard compliance |
| IP protection grade |
IP 65 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
0068-CPR-058/2014 |
| Physical specifications |
| Cabinet/Case Material |
ABS |
| Hardware |
Wall mount metal plate and 5m cable |
| Grille |
Steel |
| Color |
White - RAL 9016 |
| Size / Weight |
| Height |
261 mm / 10.28 inches |
| Width |
176 mm / 6.93 inches |
| Depth |
183 mm / 7.2 inches |
| Weight |
2.79 kg / 6.15 lbs |
| Shipping information |
| Package Height |
230 mm / 9.06 inches |
| Package Width |
350 mm / 13.78 inches |
| Package Depth |
Package Weight |
| 4.39 kg / 9.68 lbs |
