Description

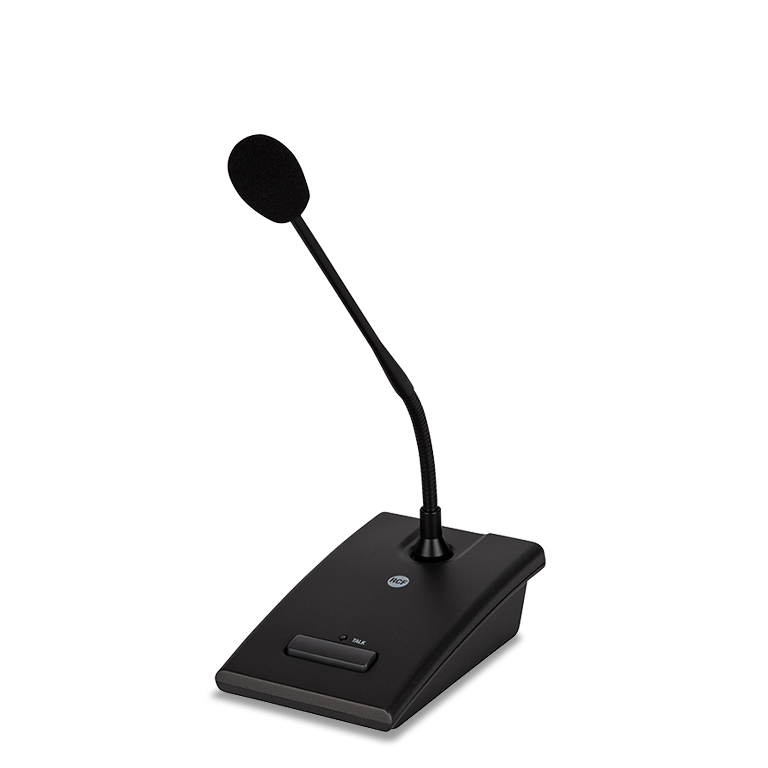

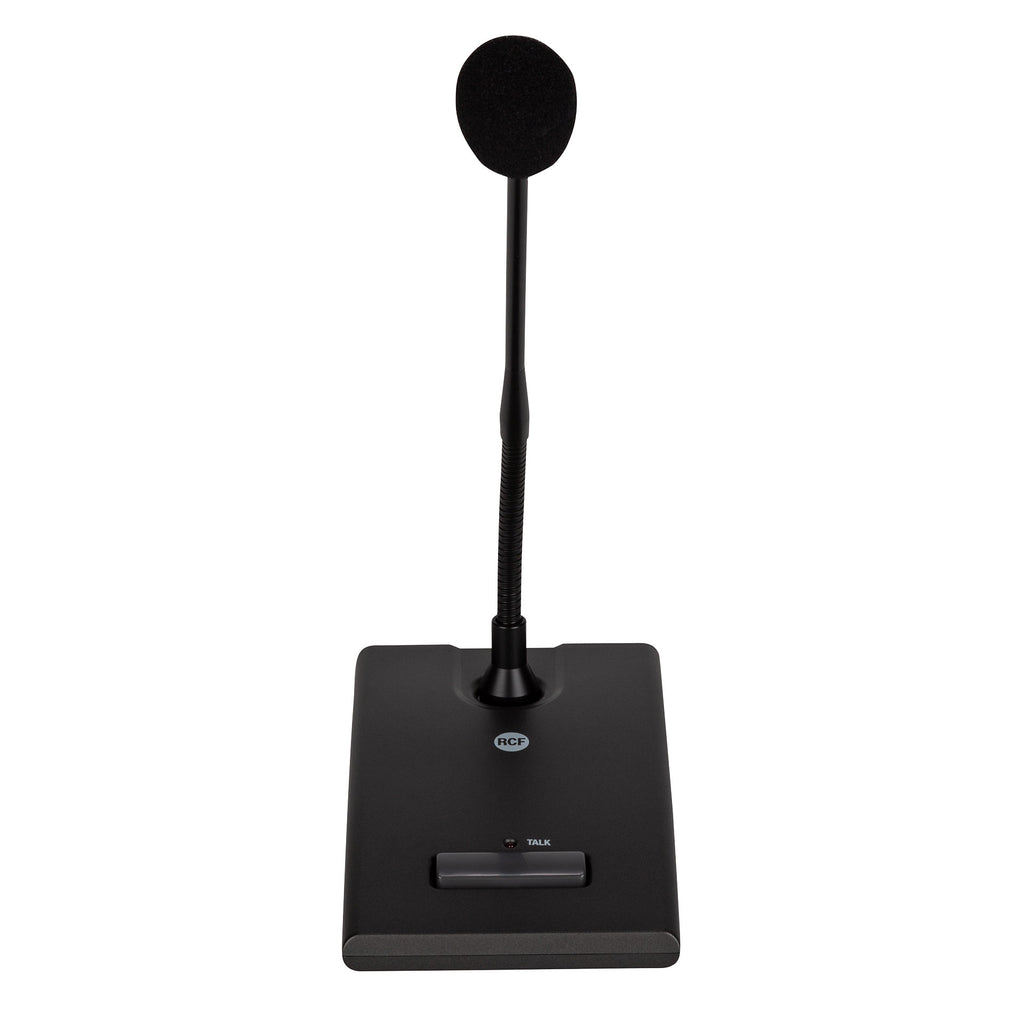

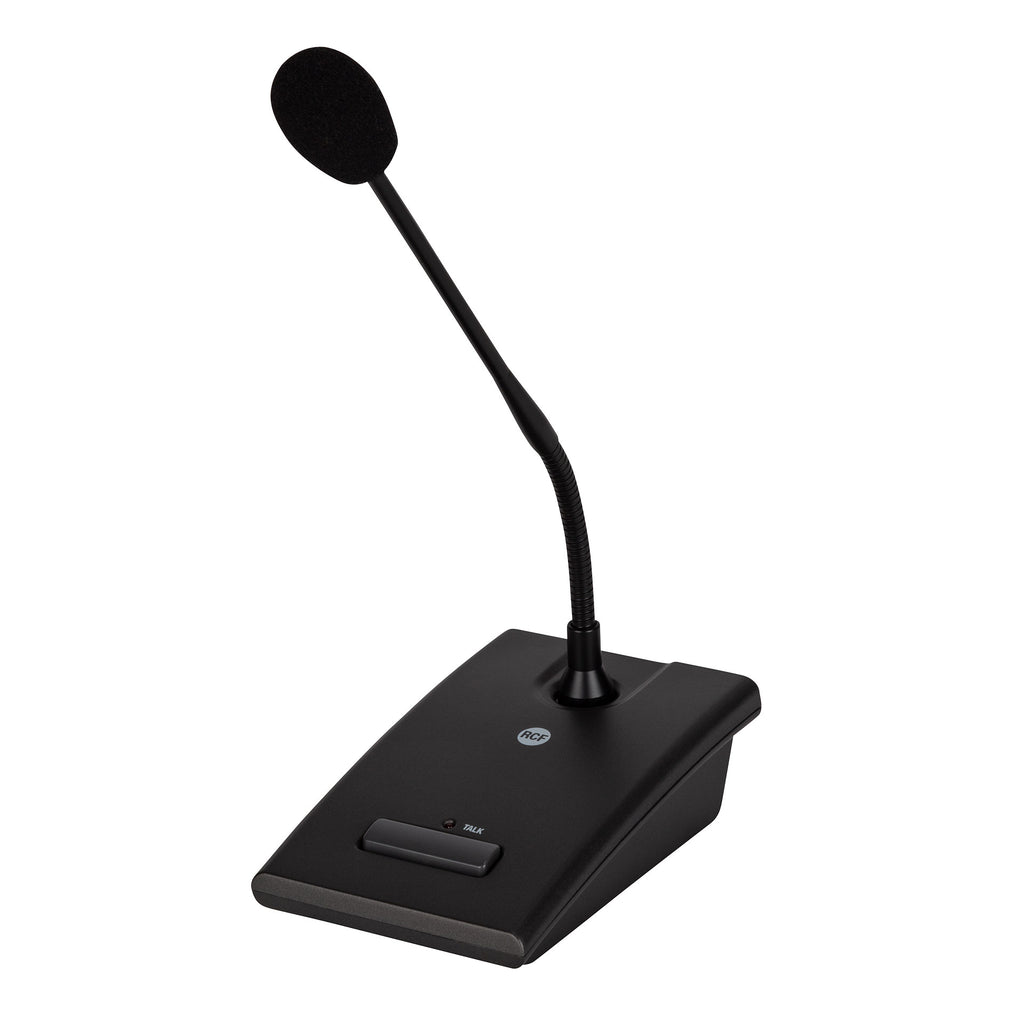

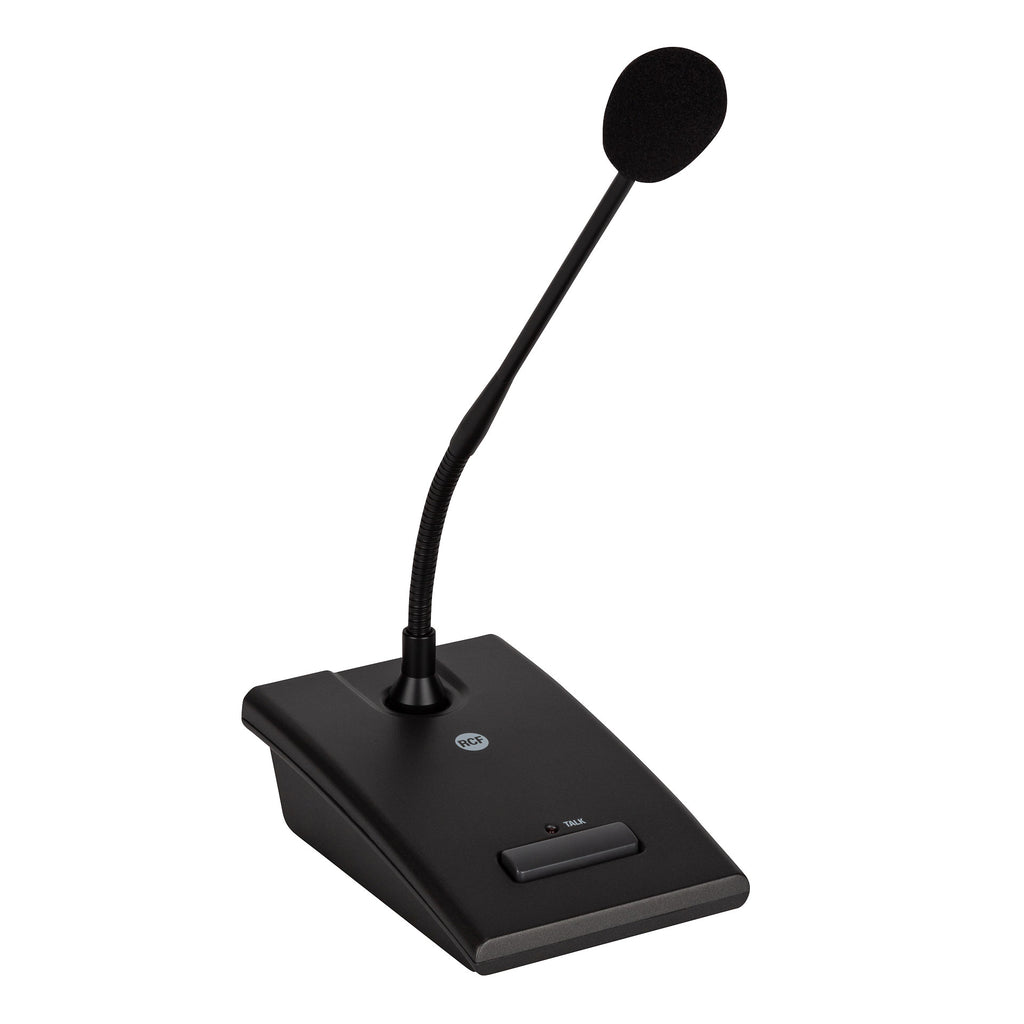

The BM 3001 Desktop Paging microphone allows to send announces toward a single zone and it is the ideal complement for the ES 3160 and ES 3323 receiver amplifier. It can also be used with other mixer-preamplifiers equipped Phantom Power (18 V - 48 V).
Features
- Plastic body with 300 mm gooseneck

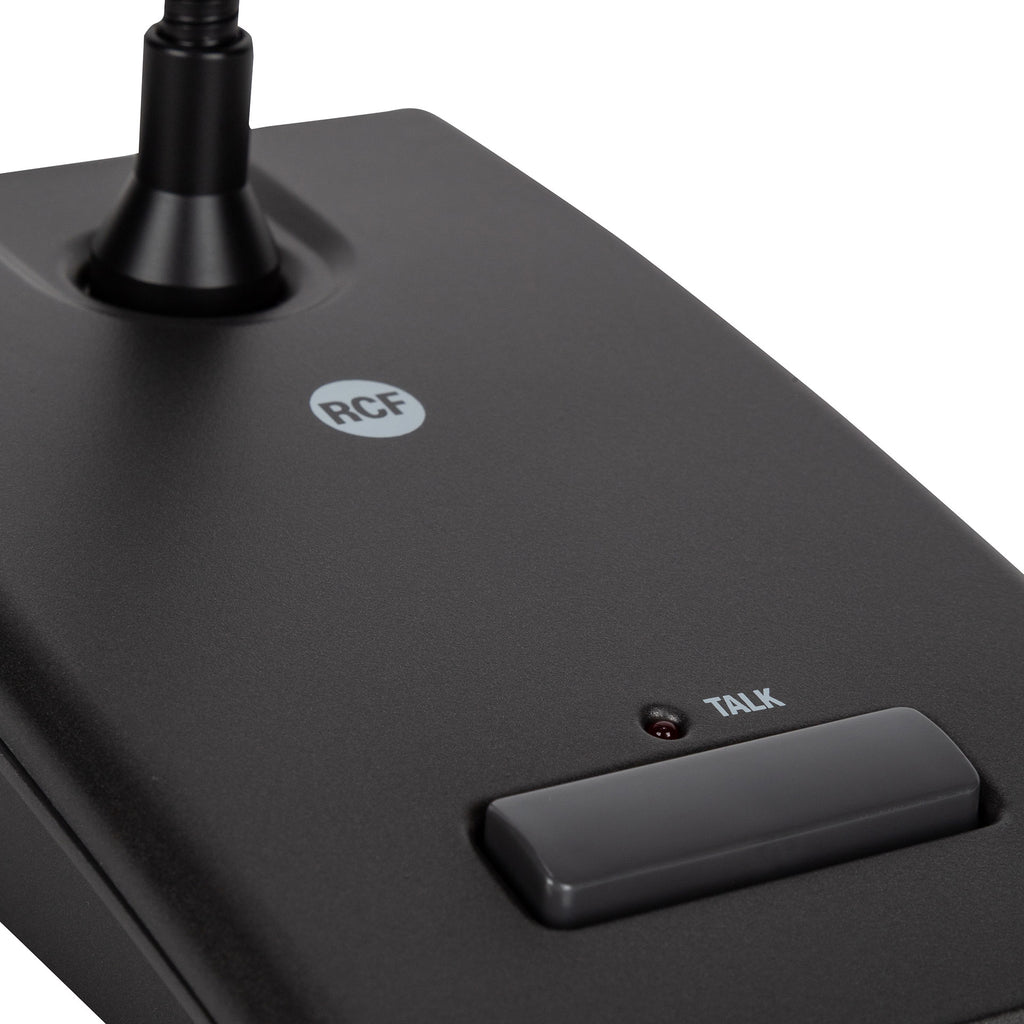

- PTT button with LED
- Power supplied by 'Phantom' (18 ÷ 48 V dc)
- Ready for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081.
- Chime activation on ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
- Polyurethane foam wind screen
- 5 m connecting cable (with RJ 45 plugs) included
Specifications
| Microphone specifications | |
| Type | Desktop paging microphone with electret capsule |
| Directivity | Cardioid |
| Sensitivity | -65 dB |
| Frequency Response (-3dB) | 50 Hz - 18 kHz |
| Minimum load impedance (ohm) | 470.00 ohm |
| Nominal output voltage @3.3 kohm (mV RMS) | 100.00 mV RMS |
| Phantom power | Yes |
| Phantom Power | 18 V DC - 48 V DC |
| Console specifications | |
| Console Type | Paging |
| General call | Yes |
| Number of zones | 1 |
| LED indicators | Yes |
| Power requirement | |
| Power consumption | 2.80 mA |
| Connections | |
| Connectors | RJ45 |
| Functionalities | |
| Smart PTT | Yes |
| Accessories | |
| Cable included | Yes |
| Cable length (m) | 5 |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plastic |
| Color | Grey |
| Size / Weight | |
| Height | 48 mm / 1.89 inches |
| Width | 100 mm / 3.94 inches |
| Depth | 159 mm / 6.26 inches |
| Weight | 0.73 kg / 1.61 lbs |
| Shipping information | |
| Package Height | 144 mm / 5.67 inches |
| Package Width | 329 mm / 12.95 inches |
| Package Depth | 129 mm / 5.08 inches |
| Package Weight | 1.18 kg / 2.6 lbs |
