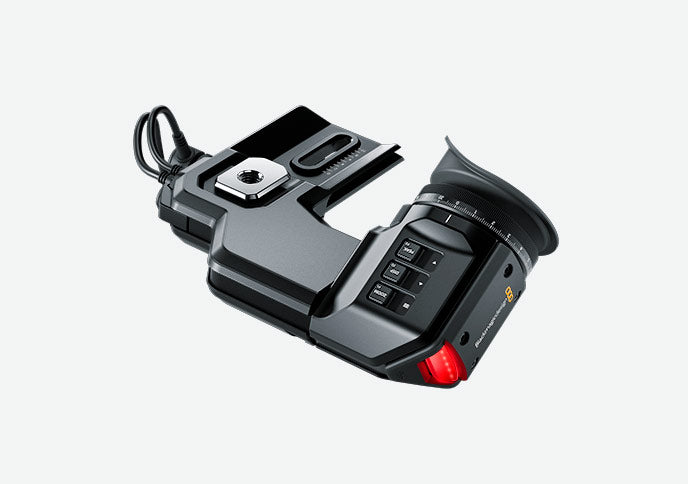

Blackmagic URSA Viewfinder, High resolution viewfinder for URSA range of cameras includes full HD OLED display and true glass optics for perfect focus

High resolution viewfinder for URSA range of cameras includes full HD OLED display and true glass optics for perfect focus.

Blackmagic URSA Broadcast G2 The world's most flexible broadcast camera! The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! It's a perfect solution for broadcasters because it uses the lenses and batteries you already own! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. This means it's compatible with all video software and broadcast media management systems. You can even change the lens mount! No other broadcast camera is so flexible!

Broadcast Production Camera The perfect solution for broadcasters, URSA Broadcast G2 includes ENG camera controls positioned around the camera so you can locate them by feel. It also features a low light sensor so you get amazing images using natural light. That's the perfect combination for broadcast news and programming.

URSA Broadcast includes an advanced YRGB color corrector built in and full remote camera control. You can use B4 ENG lenses, large studio box lenses, or even change the lens mount and use any lens! Plus the optional Blackmagic focus and zoom demands let you control the lens from the tripod handles.

URSA Broadcast G2 includes an advanced 6K digital film sensor, and you can change the lens mount! Use a PL mount for digital film lenses or EF for photo lenses. Plus the high dynamic range, great low light performance and Blackmagic RAW means you get a true "Hollywood" quality digital film camera.

Get Digital Film Quality for Broadcast The large 6K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. This means broadcasters can now use digital cinema quality in broadcast! The 6K sensor features a resolution of 6144 x 3456 so it's flexible enough for broadcast and digital film work. When using B4 lenses, you get a 4K window of the sensor for Ultra HD broadcast use. Then if you change to a PL or EF lens mount, you can use the full 6K resolution of the sensor for digital film! With 13 stops of dynamic range, you get darker blacks and brighter whites, so it's perfect for color correction. Using digital film in broadcast is a revolution in image quality!

Exceptional Low Light Performance The new URSA Broadcast features incredible low light performance so you can shoot using ambient light or even under moonlight! In advanced cameras, ISO is a measurement of the image sensor's sensitivity to light. The Blackmagic URSA Broadcast G2 features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set via a camera switch, the LCD menu or remotely using the SDI remote camera control protocol.

Specifications

Connections

• SDI Video Inputs: 1 x 3G-SDI BNC.
• Power Input: 1 x 4 pin XLR 12V.
• Computer Interface: USB 2.0 Mini-B port for software updates.

Features

• Display Resolution: Full 1920 x 1080.
• Frame Rates: Up to 60fps
• Display Type: OLED
• Display Pixels: 6.22 Million Pixels
• Color Precision: 24 bit RGB, 16.7 million colors
• Focus: 4 Element diopter.
• Diopter Range: -4 to +3
• Controls: Buttons for settings, short cut features and navigating menus.
• Overlays: Built in overlay display processor and top mounted buttons.
• Eyepiece: Can be tilted vertically and extended for left or right eye use.
• Tally: LED tally light.
• Mounting Options: Camera mount with adjustment.
• Metadata Support: Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 2.36 lb
• Dimensions: 8 1/2"x 11 1/4" x4 1/4"
