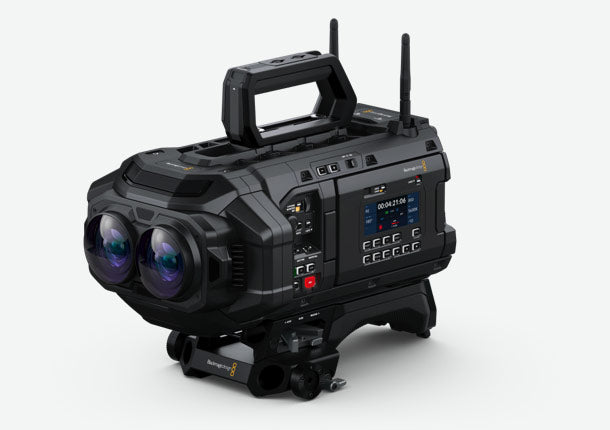

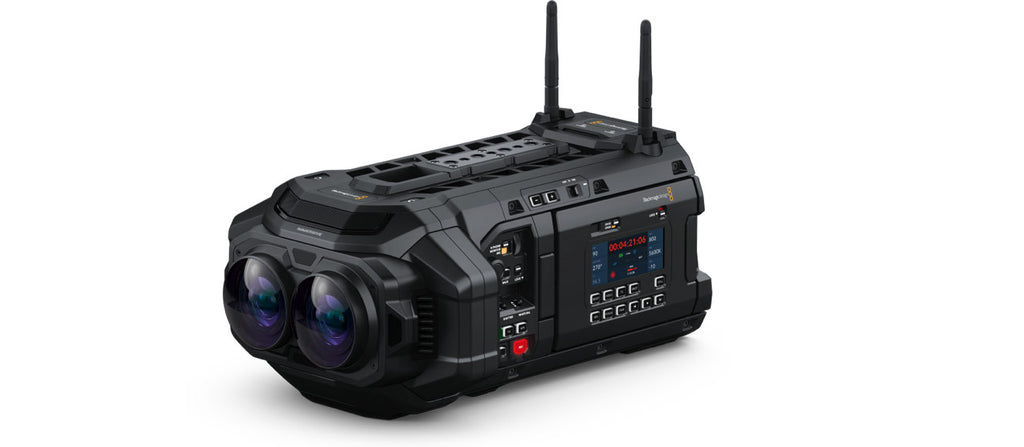

Blackmagic URSA Cine Immersive, World's first immersive cinema camera with custom lens system and dual 8K sensors for stereoscopic 3D immersive image capture designed specifically to capture Apple Immersive Video for Apple Vision Pro

World's first immersive cinema camera with custom lens system and dual 8K sensors for stereoscopic 3D immersive image capture designed specifically to capture Apple Immersive Video for Apple Vision Pro.

Introducing the World's Most Advanced Digital Film Camera!

Blackmagic URSA Cine is a revolutionary digital film camera platform combining advanced technologies with total integration into the latest post-production workflows. It's the first digital film camera with high-speed network storage built in and high-speed networking for cloud sync. URSA Cine introduces new large-format RGBW sensors with larger photo-sites for incredible dynamic range. You can swap between PL, LPL, EF and B4 lens mounts. Plus, URSA Cine can output live SMPTE-2110 IP video for cinematic live production. There's even WiFi and SRT streaming for remote client viewing! Industry-standard LEMO and Fischer connections make it perfect for high-end cinema production.

The world's most advanced digital film camera can now also be used for live production! That's like having two completely different cameras in a single design. Live broadcasters can finally achieve the same stunning cinematic quality once exclusive to the film industry. No other broadcast camera can match the dynamic range, frame rates and color science of Blackmagic URSA Cine. Because it handles both film and live production, you can keep the camera busy with whatever kind of work you want.

Perfect for Feature Film and Post Production

When set to record, the camera captures Blackmagic RAW to the media module. That's perfect for film shoots as you retain the full dynamic range of the sensor, so color grading can bring out the richness of every scene. Plus, real-time proxies can be recorded and synced to an off-site post-production team. You can also connect a DaVinci workstation to the camera's 10G Ethernet for on-set grading.

Add Cinematic Quality to Live Production

Specifications

Camera Features

• Sensors: 2 x 8K sensors. Left eye and right eye.
• Effective Sensor Size: 23.66 mm x 20.88 mm each.
• Pixel Pitch: 2.9 microns.
• Lens: Fixed focal length, 180°+ field of view, stereo lens pair.
• Dynamic Range: 16 Stops.
• Shooting Formats: 8160 x 7200 x 2 (stereo immersive)
• Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported.
• High Speed Frame Rates: 8K stereo immersive up to 90 fps.
• Built in ND Filters: Button activated ND filters with clear, 2-stop, 4-stop, 6-stop and 8-stop IR ND filters.
• Iris Control: Fixed iris.
• Screens: 2 x Monitoring Screens. 1 x Camera Status Screen.
• Monitoring Screen Dimensions: 5 inch.
• Monitoring Screen Resolution: 1920px x 1080px.
• Monitoring Screen Brightness: 1500 nits.
• Monitoring Screen Type: LCD capacitive touchscreen.
• Monitoring Options: Left Eye, Right Eye, Punch In or Side by Side.
• Metadata Support: Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
• Controls: Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop.
• Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

• Total Video Outputs: 2
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Analog Audio Inputs: 2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
• Analog Audio Outputs: 1 x 3.5mm headphone jack.
• Reference Inputs: Tri-Sync/Black Burst and Timecode.
• USB-C Monitor Outputs: 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
• Computer Interface: 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear.
• Ethernet: 1 x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.

Audio

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Standards

• SD Video Standards: None
• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
• SDI Audio Sampling: 48 kHz and 24 bit.

Media

• Media: 1 x Blackmagic Media Module.
• Media Format: Blackmagic

Supported Codecs

• Codecs: Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5

Control

• External Control: Blackmagic PYXIS Monitor and Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the F1, F2, F3. External Camera Control supported using REST API over Ethernet or WiFi. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand for controlling camera.

Network Management

• NTP: Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
• FTP: Download files from any drive attached to your camera using FTP.
• Web Media Manager: Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
• SMB: File sharing using SMB.

Storage Features

• Storage Type: 1 x Blackmagic Media Module 8TB.
• Storage Rates: Storage rates based on 90 frames per second.
• 8K Stereo Immersive: 8160 x 7200 x 2 Blackmagic RAW 5:1 - 3,203 MB/s Blackmagic RAW 8:1 - 2,002 MB/s Blackmagic RAW 12:1 - 1,335 MB/s Blackmagic RAW 18:1 - 889 MB/s Blackmagic RAW Q0 - 1,779 to 4,003 MB/s Blackmagic RAW Q1 - 1,456 to 3,558 MB/s Blackmagic RAW Q3 - 801 to 2,002 MB/s Blackmagic RAW Q5 - 534 to 1,602 MB/s Constant Quality Rates are: Q0 9:1 - 4:1, Q1 11:1 - 4.5:1, Q3 20:1 - 8:1, Q5 30:1 - 10:1 Actual storage rates are dependent on image subject matter.
• Recording Formats: Blackmagic RAW 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 8160 x 7200 resolution for each eye.

Power Requirements

• Power Supply: +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate.
• Power Input: 1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate.
• Power Output: B-Mount battery plate including 2-pin connector with +12V regulated output from camera.

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 45°C (-4° to 113°F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 29.76 lb
