Description

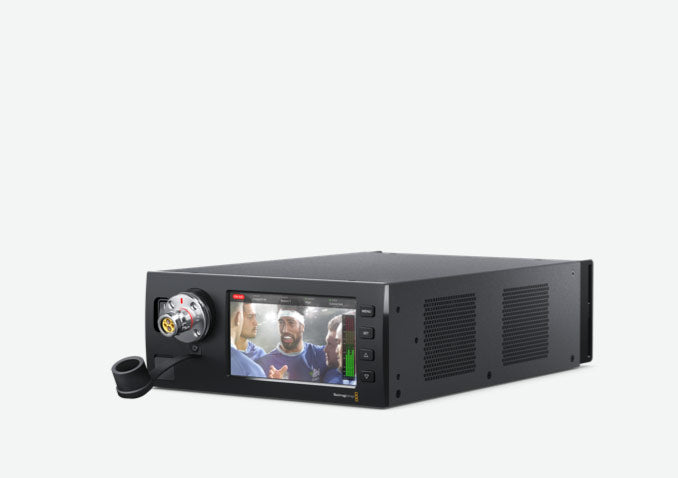

Convert SMPTE fiber to 12G-SDI broadcast equipment while powering remote cameras up to 2 km away. Supports converting SMPTE fiber to 12G-SDI, multiple channels of return video, control and power.

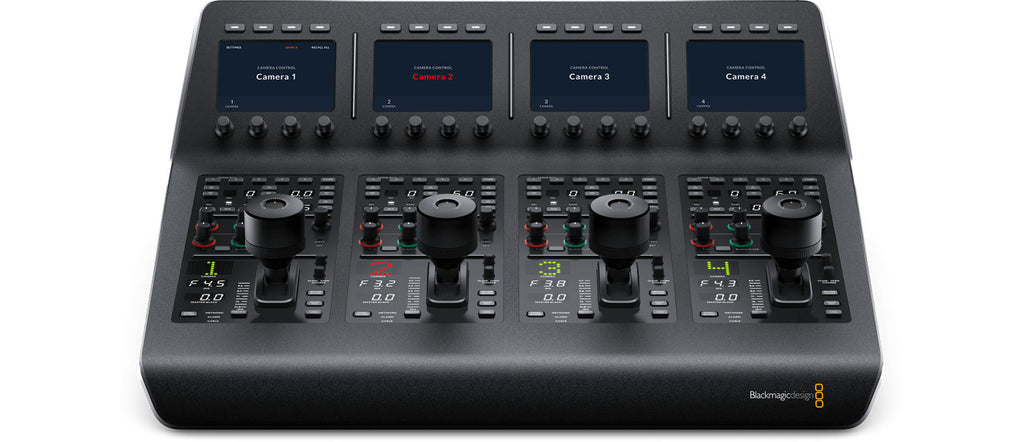

Remotely control up to eight cameras, all from a single control panel! ATEM Camera Control Panels are professionally built broadcast camera control units that extends the software features in ATEM Software Control to add high quality physical buttons and controls that are much faster to use. ATEM Constellation supports camera control when used with the Blackmagic Studio Cameras, URSA Mini Pro and URSA Broadcast cameras for full remote camera control. The control panel lets a single person monitor and adjust a wide range of camera parameters such as black levels, gain, color balance, shutter speed and more. This leaves your camera operators free to focus on more important tasks such as framing and shot composition. Plus it works with all ATEM switcher models!
ATEM Micro Camera Panel Portable camera panel with high end broadcast CCU controls, including battery, Bluetooth, and 8 camera select buttons for iris, pedestal, shutter, white balance, master gain, RGB balance and more.
Control up to 4 cameras at the same time using the same controls used on high end broadcast camera controllers. Controls iris, shutter speed, white balance, master gain, pedestal, RGB and more!
Works with Blackmagic Studio, URSA Mini and Broadcast Cameras ATEM Constellation works with the latest Blackmagic SDI cameras that have studio camera features that you can remotely control! This means you get remote camera control, tally indicators and a DaVinci color corrector built in. All control is via the switcher aux output connection to the camera PGM SDI input, allowing you to broadcast control commands from the switcher to the camera with a single SDI cable! That means you can remotely control settings in the camera plus focus, iris and zoom on supported lenses. Pocket Cinema Cameras include a DaVinci primary color corrector so you get more than simple CCU controls as you can also do a full color grade in the camera for a cinematic look!
Control Blackmagic Pocket Cinema Cameras One person can control up to 8 cameras at the same time! When working on live production, it's important all of the cameras are matched with proper color balance so that you get a consistent look as you cut and transition between the different cameras. The ATEM Camera Control Panel features 4 individual camera controllers while ATEM Micro Camera Panel allows you to choose between up to 8 cameras in one panel. When used with a larger number of cameras, it's very quick to change which camera you control on each CCU channel. On ATEM Camera Control Panel, each camera controller includes an LCD screen with soft buttons and knobs. Both panels feature a full set of traditional CCU controls, so you always get a clear indication of the camera state.
Scene and Camera Controls The top section on each camera control has settings for changing camera settings, plus it lets you save and recall scene presets. Getting remote access to important camera settings is vital when you are working in conditions where the light can change during your job such as daylight, and with these settings you can quickly adjust cameras based on changes in the scene. Controls in this section include master gain, ND filters, white balance, shutter speed and more!
Specifications
Connections
- Optical Fiber Input: 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector.
- SDI Video Input: 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.
- SDI Video Output: 2x 12G SDI for Ultra HD up to 60p.
- Talkback Audio: SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
- Balanced XLR Audio Outputs: 4x camera analogue audio outputs.
- Optical Fiber Outputs: 1x Optical I/O via 10 Gb-E (not currently active).
- Computer Interface: 1x USB-C.
Standards
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Compliance: SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
- Audio Sampling: Television standard sample rate of 48Khz, 24 bit A/D conversion.
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 709, REC 2020.
- Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Software
- Software Included: Camera Utility for firmware update.
Power Requirements
- Power Supply: 100 - 240V AC input.
Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
Physical
- Weight: 7.83 lb
