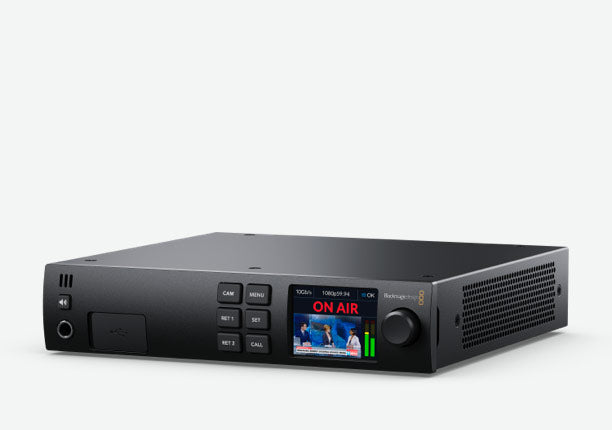

Blackmagic Studio Converter, Get the same workflow as SMPTE fiber, but using low cost 10G copper Ethernet cables

Get the same workflow as SMPTE fiber, but using low cost 10G copper Ethernet cables. This converter will power the camera via the Ethernet cable and convert the camera and program return feeds to SDI.

Blackmagic Studio Camera The ultimate self contained live production camera! Introducing the world's most advanced self contained studio camera! Blackmagic Studio Cameras have the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include talkback, tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks, live streaming and more! You can even add a focus and zoom demand for lens control!

Front Back Blackmagic Studio Camera 4K Plus G2 The perfect mini studio camera features a cinematic 4K sensor up to 25,600 ISO, MFT lens mount, 12G-SDI and HDMI, 3.5mm talkback, 7" LCD with sunshade, color corrector and recording to USB disks.

Blackmagic Studio Camera 4K Pro G2

Designed for professional SDI switchers, you get the features of the Studio Camera Plus, as well as 12G-SDI, XLR audio, bright HDR LCD, 5-pin XLR talkback, 10G Ethernet IP link and HD live streaming.

Blackmagic Studio Camera 6K Pro

Designed as the most advanced ultra portable studio camera, this model has the features of the Studio Camera 4K Pro G2 model plus a larger 6K sensor, EF lens mount and remote controllable ND filters.

Specifications

Connections

• SDI Video Inputs: 2
• SDI Video Outputs: 2
• SDI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Built in Speaker: Mono
• Analog Audio Inputs: 2 channel analog Program audio in supported via 9-pin connector.
• Analog Audio Outputs: 1 x 6.35 mm headphone jack.
• SDI Audio Input: Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.
• SDI Audio Output: 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16.
• Timecode Connections: 1 x BNC In, 1 x BNC Out.
• Reference Connections: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
• Talkback Audio: SDI channels 13 and 14 for Engineering talkback. SDI channels 15 and 16 for Production talkback. RJ-45 Talkback connector for analog external talkback systems.
• Screen: 2.2 inch LCD
• Ethernet: 1 x 10Gb/s PoE RJ-45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable. 1 x 1Gb/s for external control and software updates.
• Computer Interface: 1 x USB-C.

Standards

• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
• Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 709, REC 2020.
• Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.

Control

• Built in Control Panel: 7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
• External Control: RJ-45 1Gb/s Ethernet.

Software

• Software Included: Camera Utility for firmware update.

Power Requirements

• Power Supply: 100 - 240V AC input.
• Power Supply: 1 x Internal 100 - 240V AC 50/60Hz.
• Power Usage: 40 W max plus camera power usage.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 3.92 lb
• Dimensions: 10 1/2"x10 1/2"x3 1/2"
