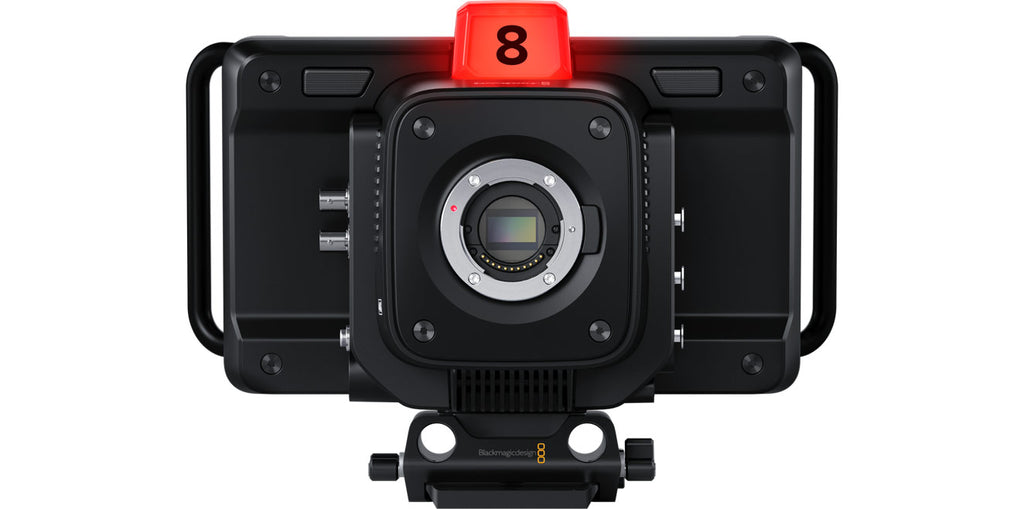

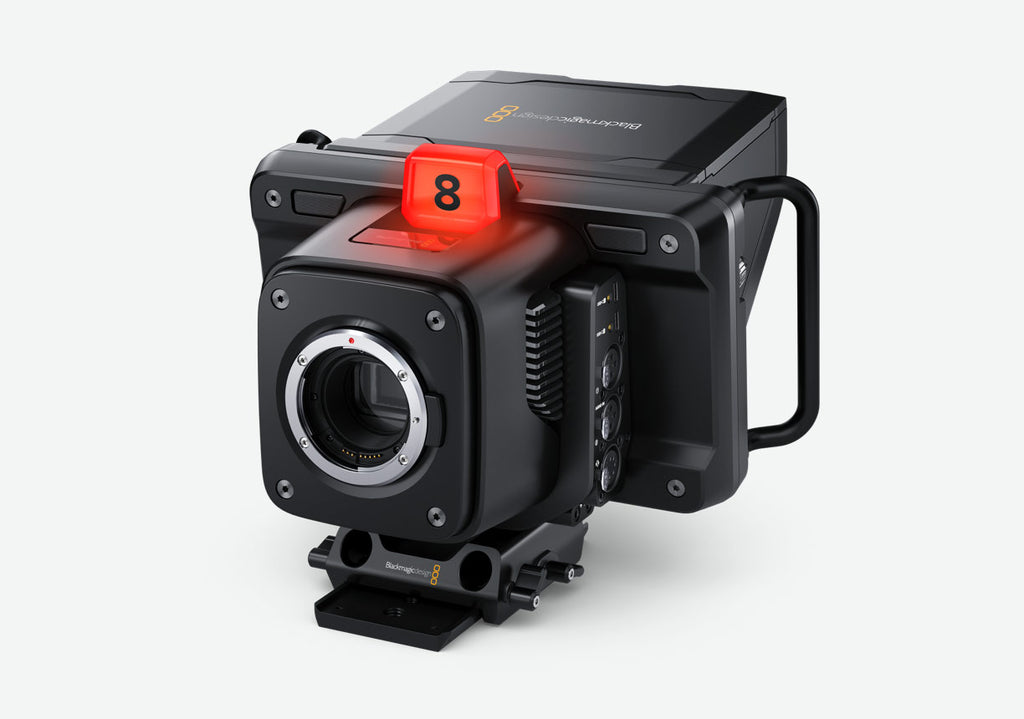

Blackmagic Studio Camera 6K Pro, Designed as the most advanced ultra portable studio camera, this model has the features of the Studio Camera 4K G2 Pro model plus a larger 6K sensor, EF lens mount and remote controllable ND filters

Designed as the most advanced ultra portable studio camera, this model has the features of the Studio Camera 4K G2 Pro model plus a larger 6K sensor, EF lens mount and remote controllable ND filters.

ATEM Television Studio The World's Most Portable All-In-One Television Studio! The new ATEM Television Studio is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview plus 2TB models include M.2 flash memory. There's even an ISO model that records all 8 inputs for editing!

ATEM Television Studio HD8 Compact live production switcher with built in broadcast control panel, 8 x 3G-SDI inputs, streaming, recording, multiview, DVE, keyers, USB webcam, media players and talkback.

Powerful ISO model includes all the features of ATEM Television Studio HD plus adds ISO recording of all 8 inputs and supports up to 8 remote cameras with control and tally for each camera!

Powerful Ultra HD live production switcher similar to the non ISO HD model, however includes 8 x 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch and more!

Includes all ATEM Television Studio HD8 features plus 2TB of internal flash storage for recording without network disks. Storage is accessible from your computer via Ethernet.

The 2TB model offers every ATEM Television Studio HD8 ISO feature, plus 2TB of built-in flash storage so you can record without external disks. Files are accessible from your computer via Ethernet.

Specifications

Camera Features

• Effective Sensor Size: 23.10mm x 12.99mm (Super 35)
• Lens Mount: Active EF mount.
• Lens Control: Iris, focus, zoom on supported lenses.
• Dynamic Range: 13 Stops.
• Dual Native ISO: 0dB and 18dB gain.
• Sensitivity at 0dB Gain: f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance.
• Signal to Noise Ratio: 64.62dB for 2160p Ultra HD scaled from 5.3K
• Recording Resolutions: 6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps
• Video Output Standards: 2160p, 1080p, 1080i
• Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates 5 - 50 fps in 6K, and 5 - 60 fps for all other recording resolutions.
• Built in ND Filters: Four position ND filter with clear, 2-stop, 4-stop and 6-stop IR ND filters.
• Focus: Auto focus available using compatible lenses.
• Screen Dimensions: 7 inch 1920 x 1200
• Screen Type: LCD capacitive touchscreen.
• Screen Brightness: 2000 nits
• Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
• Mounting Options: 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Outputs: 1
• Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
• Analog Audio Output: 1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic.
• SDI Audio Output: 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16.
• Reference Inputs: Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
• Remote Control: Remote camera control over SDI, HDMI or Ethernet.
• Ethernet: 10Gb/s
• Computer Interface: 2 x USB Type-C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB-C Port A.

Audio

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Streaming

• Direct Streaming: Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB-C.
• Streaming Platforms: ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.

Standards

• SD Video Standards: None
• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.

Media

• Media: 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

• Codecs: Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5

Storage Features

• Storage Type: 2 x USB-C 3.1 Gen 1 expansion ports for external media.
• Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate.
• Storage Rates: Storage rates based on 30 frames per second.

Control

• External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

Network Management

• NTP: Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
• Web Media Manager: Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
• FTP: Download files from any drive attached to your camera using FTP.
• SMB: File sharing using SMB

Talkback and Tally

• Live Tally Indicator: 1 x front facing for talent, 1 x rear facing for operator.
• Talkback: SDI Channels 15 and 16.

Software

• Software Included: Blackmagic Camera Setup for Mac and Windows.

Power Requirements

• Power Supply: 1 x External 12V DC 60W power supply.
• Power Inputs: 1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.
• Power Usage: 32 - 52 W using DC input. 38 - 59 W using Type 4 PoE input.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 8.16 lb
