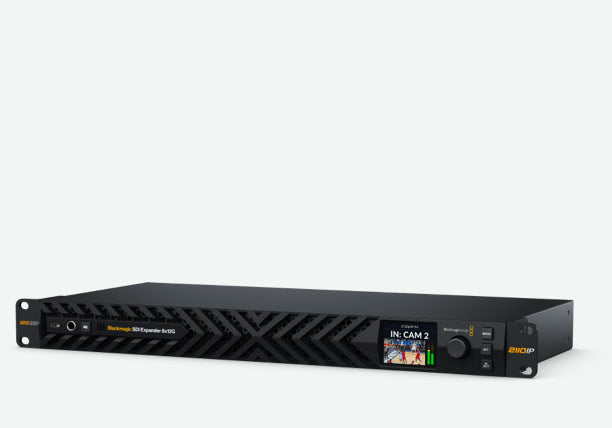

Blackmagic SDI Expander 8x12G, Convert 12G-SDI to 100G Ethernet IP video

Convert 12G-SDI to 100G Ethernet IP video. Converts 8 x 12G-SDI in and 8 x 12G-SDI out in all HD and Ultra HD video standards up to 2160p60. Supports redundant SMPTE-2022-7 100G Ethernet connections.

Blackmagic Design has a wide range of SMPTE-2110 IP video products, including standards converters, video monitors, audio monitors and even cameras! Plus they support Ultra HD using low cost 10G Ethernet! Most converter models are bidirectional, so they're fantastic to use on cameras when you need an extra program return! The rack mount models have an elegant design with a color LCD for monitoring, menus and diagnostics. All models conform to the SMPTE-2110 standard for IP video, including PTP clocks and even NMOS support so you can make connections using a video router panel. The Blackmagic 2110 IP Converter 3x3G model even includes a reference video output, timed to the 2110 PTP clock!

Blackmagic Design has a wide range of SMPTE-2110 equipment for building anything from small mobile racks to broadcast trucks and entire stations. There are cameras, live production switchers, Ethernet switches, standards converters, monitors and audio monitors. Compact mini-converter models work with cameras and monitors, while rack-mount equipment suits larger installations. With such a wide range, you can build a fully native SMPTE-2110 system. Plus, most 10G Ethernet models can be remotely powered! Adding converters is also a low-cost way to bring your existing gear into SMPTE-2110, including switchers, disk recorders, streaming encoders, graphics systems, cameras and televisions.

Blackmagic 2110 IP products conform to the SMPTE-2110 standard, which specifies the transport, synchronization and description of 10-bit video, audio and ancillary data over managed IP broadcast networks. They can re-sync SDI inputs to a common PTP clock, or external gear can lock to the reference output generated from the PTP clock. Supported standards include SMPTE-2110-20 for uncompressed video, SMPTE-2110-21 for traffic shaping, SMPTE-2110-30 for audio, SMPTE-2110-40 for ancillary data and many models support SMPTE-2022-7 for seamless redundancy. Plus, multicast support efficiently distributes video, audio and data from a single source to multiple destinations simultaneously.

SMPTE-2110 via 10G Ethernet

10G Ethernet is very low-cost, perfect for affordable SMPTE-2110 IP video! Add Blackmagic 2110 IP Mini models to 10G Ethernet systems for an affordable and compact solution. Plus, most models have PoE, so one cable handles both video and power!

SMPTE-2110 via Redundant 10G

Specifications

Connections

• 100G 2110 IP Networks: 2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
• Senders and Receivers per 100G Pair: 8 x Ultra HD or HD.
• 1G Control Network: 1 x 1G RJ45 for NMOS control, configuration and firmware updates.
• SDI Video Inputs: 8
• SDI Video Outputs: 8
• SDI Rates: 1.5G, 3G, 6G, 12G.
• SDI Audio Inputs: 16 Ch embedded audio on SDI inputs.
• SDI Audio Outputs: 16 Ch embedded audio on SDI outputs.
• SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• Analog Audio Outputs: 1 x 6.35 mm headphone jack.
• Power: 2 x IEC C14 power inputs.

Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SMPTE Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2022-7, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE ST2110-20, SMPTE ST2110-21, SMPTE ST2110-30, SMPTE ST2110-40.
• SDI Color Precision: 10-bit 4:2:2 YUV
• Color Space: Rec. 790, Rec. 2020.
• SDI Auto Switching: Automatically detects HD and Ultra HD. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v3
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Control

• Built in Control Panel: 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.
• External Control: RJ-45 Ethernet and USB-C.

Power Requirements

• Power Supply: 2 x 100 - 240V AC 50/60Hz internal power supplies.
• Power Inputs: 2 x IEC C14 sockets.
• Power Usage: TBC

Environmental Specifications

• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
