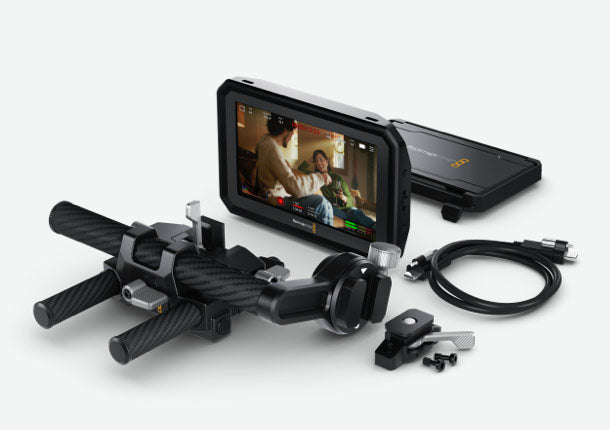

Blackmagic PYXIS Monitor EVF Kit, Full PYXIS Monitor kit plus URSA Cine EVF mounting hardware

Full PYXIS Monitor kit plus URSA Cine EVF mounting hardware. Get PYXIS Monitor, sunshade, 2 USB-C cables, PYXIS Monitor Mount, PYXIS EVF Mount and EVF mount with carbon fiber rods.

Blackmagic PYXIS The World's Most Riggable Full Frame Digital Film Camera! Introducing the next generation customizable cinema camera! Blackmagic PYXIS is a high end digital film camera that produces precise skin tones and rich organic colors. It features an extremely versatile design that lets you build the perfect camera rig for your production! You get a full frame 36 x 24mm 6K or 12K sensor with wide dynamic range with a built in optical low pass filter that's been designed to perfectly match the sensor. Plus there are 3 models available in either EF, PL or L-Mount. You also get 2 x CFexpress media recorders and Ethernet for sharing media to Blackmagic Cloud! It even records both 12-bit Blackmagic RAW and extremely small H.264 proxies files at the same time!

Blackmagic PYXIS 6K Advanced digital film camera with an incredibly versatile design! Includes full frame 36 x 24mm 6K sensor, wide dynamic range and choice of EF, PL or L Mount. Records Blackmagic RAW with proxies to CFexpress.

Advanced digital film camera with a revolutionary full frame 36 x 24mm RGBW sensor up to 12288 x 8040 resolution, 16 stops dynamic range and choice of EF, PL or L Mount. Records Blackmagic RAW with proxies to CFexpress.

With multiple mounting points and accessory side plates, it's easy to configure Blackmagic PYXIS into the camera you need it to be! PYXIS' compact body is made from precision CNC machined aerospace aluminum, which means it is lightweight yet very strong. You can easily mount it on a range of camera rigs such as cranes, gimbals or drones! In addition to the multiple 1/4″ and 3/8″ thread mounts on the top and bottom of the body, Blackmagic PYXIS has a range of side plates that further extend your ability to mount accessories such as handles, microphones or even SSDs. All this means you can build the perfect camera for the any production that's both rugged and reliable!

Blackmagic PYXIS has the professional features you need for feature film, television programming and documentaries, however now this same quality can be used to create cinematic content for social media, YouTube videos and more. You get the same features found on high end digital film cameras, allowing capture of deeper colors, higher image detail and a wider dynamic range between the brightest highlights and deepest shadows. It's the reason why feature films look so amazing and now you can get the same high end production values for any kind of work. Imagine shooting with large format digital film on low budget independent films, TV commercials or even corporate video!

Blackmagic PYXIS models feature a large full frame sensor with a native resolution of 6048 x 4032 or a massive 12288 x 8040! That's almost three times larger than a Super 35 sensor and lets you shoot with a shallow depth of field or use anamorphic lenses uncropped for a true cinematic look. Whether you're shooting in bright light or in almost no light at all, the massive dynamic range with high performance sensor provides stunning low noise images in all lighting conditions. Plus, PYXIS lets you shoot up to 120 fps on the 6K model, or 112 fps on the PYXIS 12K. This amazing sensor combined with Blackmagic color science gives you the same quality as the most expensive digital cinema cameras.

Specifications

Connections

• USB-C with Locking Connector: Video, power, data and software updates.

Features

• Display Size: 5 inch.
• Display Resolution: Full 1920 x 1080.
• Display Type: LCD capacitive touchscreen.
• Display Brightness: 1500 nits.
• Frame Rates: Up to 60fps.
• Tally: Rear facing LED tally light.
• Accelerometer: Automatically rotates image when monitor mounted upside down.

Control

• On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
• Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
• Function Button Presets: FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
• Function Button Toggle: Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still

Mounting

• Mounting Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.

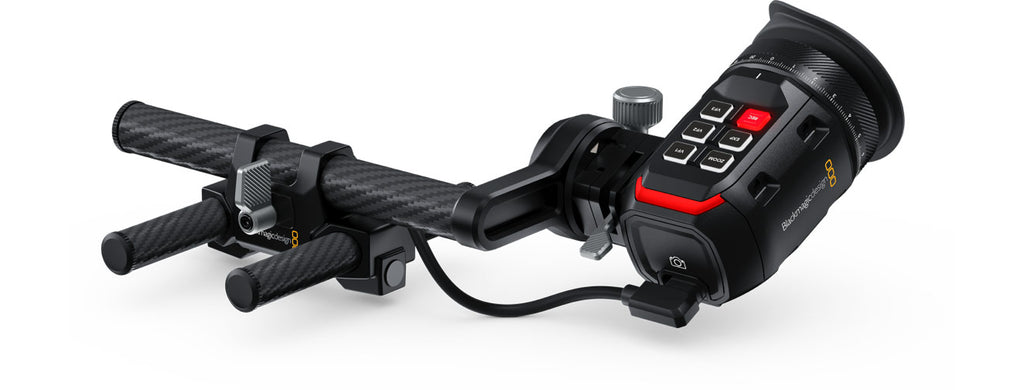

• Mounting Brackets: Blackmagic PYXIS Monitor Swivel Mount - included in EVF Kit. Blackmagic PYXIS Monitor Fixed Mount - included in EVF Kit. Blackmagic PYXIS Monitor Dovetail Shoe - included in EVF Kit. Blackmagic URSA Cine EVF Bracket - included in EVF Kit.

Environmental Specifications

• Operating Temperature: 0°to 40°C (32° to 104°F)
• Storage Temperature: -20°to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 3.02 lb
