Blackmagic MultiView 4, Multiview supports up to 4 views on an HD or Ultra HD monitor

Multiview supports up to 4 views on an HD or Ultra HD monitor. Features re-sync on each input for monitoring any combination of SD, HD and Ultra HD. Includes on screen audio meters and labels.

Blackmagic MultiView Now you can monitor multiple SDI sources on an HD or Ultra HD display or TV! Blackmagic MultiViews are the world's first native Ultra HD multi viewers that let you monitor completely independent SDI video sources on a single HD or Ultra HD display! With full frame re-synchronization on every input, you can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time, on the same display. When used with an Ultra HD television, the quad split view gives you four full resolution 1080 HD monitors on a single screen! You also get on screen audio meters, custom view labels and much more!

Monitor up to 4 or 16 sources at once in Ultra HD or HD!

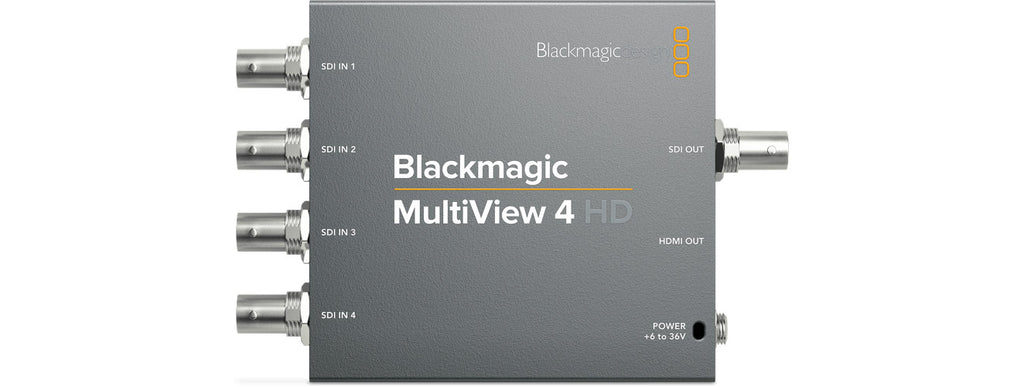

Introducing new MultiView 4 HD Monitor up to four different SD and HD sources on the same display at the same time! The new Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions!

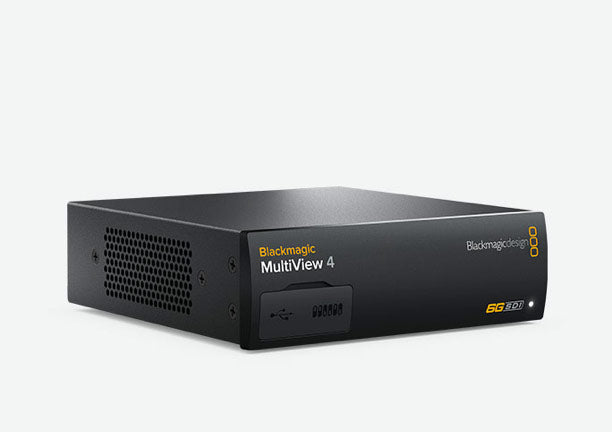

MultiView 4 The easiest SD, HD and Ultra HD multi view you'll ever use! Blackmagic MultiView 4 has four independent 6G-SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. The included Ethernet remote control software lets you turn on audio meters, select audio to output, and create custom labels. MultiView 4 displays your sources in a standard 2x2 grid. You can also add a Teranex Mini Smart Panel for full front panel control and rack mount it using the optional Teranex Mini Rack Shelf!

Simultaneously view up to 16 independent SD, HD and Ultra HD sources!

MultiView 16 is perfect for larger installations because it has 16 independent 6G-SDI inputs so you can connect any combination of SD, HD or Ultra HD sources and monitor them all simultaneously on a single display! Router style controls on the front panel, along with the LCD and spin knob, let you adjust settings, route sources to different views, add overlays and more. Output can be set to a 2x2, 3x3 or 4x4 grid, and you can even SOLO any source full screen!

Specifications

Connections

• SDI Video Inputs: 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
• SDI Video Outputs: 4 loop, 1 HD/Ultra HD.
• SDI Rates: 270Mb, 1.5G, 3G, 6G.
• SDI Video Multi View Outputs: 1 x 10-bit HD-SDI and 10 bit 6G-SDI
• HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
• SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
• Reference Input: None
• Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.
• Updates: USB 2.0 high speed (480Mb/s) interface or via Ethernet.
• Configuration: RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4Kp24 DCI
• SDI and HDMI HD Video Output Standards: 1080i50, 1080i59.94
• SDI and HDMI Ultra HD Video Output Standards: 2160p25, 2160p29.97
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
• Audio Meters: Each view, VU standard.
• Source Routing: None
• SDI Video Sampling: 4:2:2
• SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
• SDI Color Precision: 10-bit 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.
• SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

Control

• Built in Control Panel: None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.
• External Control Panel: None

Software

• Software Control: MultiView software included free for Windows and Mac.
• Internal Software Upgrade: Via included updater application.

Power Requirements

• Power Supply: IEC power cable required, 100 - 240V AC input.
• Power Fail Protection: MultiView 4 settings preserved and restored instantly at power on.
• Power over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
• Power Consumption: 16 Watts

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 2.09 lb
• Dimensions: 7.75x 9" x 2 1/4"
